#include <Widget.h>

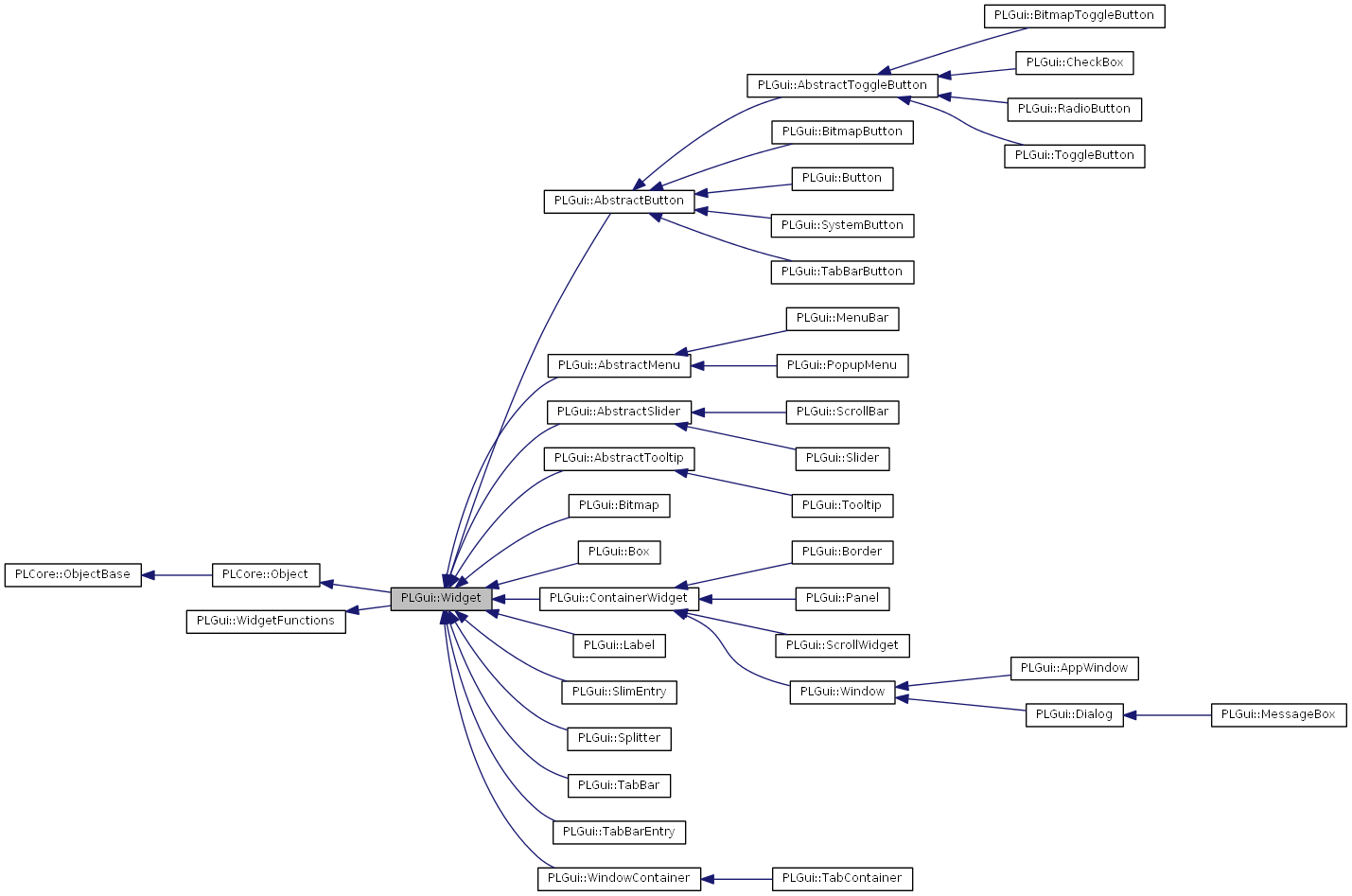

Inheritance diagram for PLGui::Widget:

[legend]

Public Member Functions
PLGUI_API	Widget (Widget *pParent=nullptr, bool bManaged=false)
	Constructor.
PLGUI_API	Widget (PLCore::handle nNativeWindowHandle)
	Constructor.
virtual PLGUI_API	~Widget ()
	Destructor.
PLGUI_API Gui *	GetGui () const
	Get owner GUI.
PLGUI_API WidgetImpl *	GetImpl () const
	Get implementation.
PLGUI_API PLCore::handle	GetNativeWindowHandle () const
	Get system native window handle.
PLGUI_API PLCore::uint32	GetID () const
	Get ID.
PLGUI_API void	SetID (PLCore::uint32 nID)
	Set ID.
PLGUI_API PLCore::String	GetName () const
	Get name.
PLGUI_API void	SetName (const PLCore::String &sName)
	Set name.
PLGUI_API PLCore::String	GetDescriptor () const
	Get descriptor.
PLGUI_API void *	GetUserData () const
	Get user defined data.
PLGUI_API void	SetUserData (void *pData)
	Set user defined data.
PLGUI_API bool	IsManaged () const
	Get whether or not the widget is managed.
PLGUI_API PLCore::String	GetTitle () const
	Get title.
PLGUI_API void	SetTitle (const PLCore::String &sTitle)
	Set title.
PLGUI_API const Image &	GetIcon () const
	Get icon.
PLGUI_API void	SetIcon (const Image &cIcon)
	Set icon.
PLGUI_API const Cursor &	GetCursor () const
	Get cursor.
PLGUI_API void	SetCursor (const Cursor &cCursor)
	Set cursor.
PLGUI_API Widget *	GetParent () const
	Get parent widget.
PLGUI_API Widget *	GetCommonParent (const Widget &cWidget) const
	Get common parent of this and another widget.
PLGUI_API Widget *	GetTopLevelWidget () const
	Get top level widget that is parent of this widget.
virtual PLGUI_API Widget *	GetContentWidget () const
	Get content widget.
PLGUI_API const PLCore::List < Widget * > &	GetChildren () const
	Get list of children.
PLGUI_API Widget *	GetFirstChild () const
	Get first child widget.
PLGUI_API Widget *	GetLastChild () const
	Get last child widget.
PLGUI_API Widget *	GetPreviousSibling () const
	Get previous sibling widget.
PLGUI_API Widget *	GetNextSibling () const
	Get next sibling widget.
PLGUI_API bool	IsTopLevel () const
	Check if widget is a top level window.
PLGUI_API bool	IsShowInTaskbar () const
	Check if widget is visible in the taskbar.
PLGUI_API void	SetShowInTaskbar (bool bShowInTaskbar)
	Set if widget is visible in the taskbar.
PLGUI_API Screen *	GetScreen () const
	Get screen the widget is on.
PLGUI_API void	MoveToScreen (Screen &cScreen)
	Move widget to another screen.
PLGUI_API PLMath::Vector2i	GetPos () const
	Get widget position.
PLGUI_API void	SetPos (const PLMath::Vector2i &vPos)
	Set widget position.
PLGUI_API PLMath::Vector2i	GetSize () const
	Get widget size.
PLGUI_API void	SetSize (const PLMath::Vector2i &vSize)
	Set widget size.
PLGUI_API bool	GetTopmost () const
	Check if widget is topmost (always above all other widgets)
PLGUI_API void	SetTopmost (bool bTopmost)
	Set if widget is topmost (always above all other widgets)
PLGUI_API PLMath::Vector2i	GetAbsPos () const
	Get absolute widget position.
PLGUI_API PLMath::Vector2i	GetRelativePos (Widget &cWidget) const
	Get position relative to another widget.
PLGUI_API void	Center (ECenter nCenter)
	Center widget.
PLGUI_API void	CenterOnScreen (Screen &cScreen)
	Center widget relative to the screen.
PLGUI_API void	CenterOnWidget (Widget &cWidget)
	Center widget relative to another widget.
PLGUI_API void	CalculatePreferredSize (const PLMath::Vector2i &vRefSize=PLMath::Vector2i(-1,-1))
	Calculate preferred size.
PLGUI_API PLMath::Vector2i	GetPreferredSize () const
	Get preferred size.
PLGUI_API void	FitSize ()
	Set size of widget to fit it's content.
PLGUI_API void	SetZPos (EZPos nZPos, Widget *pWidget=nullptr)
	Set Z position.
PLGUI_API EWindowState	GetWindowState () const
	Get window state.
PLGUI_API void	SetWindowState (EWindowState nWindowState)
	Set window state.
PLGUI_API PLGraphics::Color4	GetBackgroundColor () const
	Get background color.
PLGUI_API void	SetBackgroundColor (const PLGraphics::Color4 &cColor)
	Set background color.
PLGUI_API void	SetTransparency (ETransparency nTransparency, const PLGraphics::Color4 &cColor)
	Set transparency mode.
PLGUI_API void	Close ()
	Close widget.
PLGUI_API bool	IsDestroyed () const
	Check if widget has been destroyed.
PLGUI_API void	Destroy ()
	Destroy widget.
PLGUI_API bool	IsVisible () const
	Check if widget is visible.
PLGUI_API void	SetVisible (bool bVisible)
	Show or hide widget.
PLGUI_API bool	IsEnabled () const
	Check if widget is enabled.
PLGUI_API void	SetEnabled (bool bEnabled)
	Enable or disable widget.
PLGUI_API EFocusStyle	GetFocusStyle () const
	Get focus style.
PLGUI_API void	SetFocusStyle (EFocusStyle nFocusStyle)
	Set focus style.
PLGUI_API bool	CanAcceptFocus () const
	Check if widget can accept the focus.
PLGUI_API bool	IsTabStop ()
	Get tab-stop.
PLGUI_API void	SetTabStop (bool bTabStop)
	Set tab-stop.
PLGUI_API bool	HasFocus () const
	Check if widget has the focus.
PLGUI_API bool	SetFocus ()
	Set keyboard focus to the widget.
PLGUI_API bool	IsActive () const
	Check if widget is active (either the widget or one of it's children has the focus)
PLGUI_API void	Activate ()
	Activate a widget (bring it to the top and set the focus to it)
PLGUI_API bool	NextTabStop (bool bForward)
	Give keyboard focus to next tab-stop widget.
PLGUI_API bool	IsMouseIn () const
	Check if the mouse is currently inside the widget.
PLGUI_API bool	IsMouseOver () const
	Check if the mouse is currently over either the widget or one of it's child widgets.
PLGUI_API bool	GetMousePos (PLMath::Vector2i &vPos) const
	Get current mouse cursor position inside the widget.
virtual PLGUI_API PLCore::uint32	GetWidgetState () const
	Get widget state.
PLGUI_API void	Redraw ()
	Redraw widget.
PLGUI_API void	RedrawAll ()
	Redraw widget and all child widgets.
PLGUI_API bool	IsCaptureMouse () const
	Check if widget has captured mouse input.
PLGUI_API void	SetCaptureMouse (bool bCapture)
	Capture mouse input.
PLGUI_API void	SetTrapMouse (bool bTrap)
	Trap mouse inside the widget.
PLGUI_API PLCore::uint32	RegisterHotkey (PLCore::uint32 nModKey, PLCore::uint32 nKey)
	Register a hotkey.
PLGUI_API void	UnregisterHotkey (PLCore::uint32 nID)
	Unregister a hotkey.
PLGUI_API Theme *	GetTheme () const
	Get theme.
PLGUI_API void	SetTheme (Theme *pTheme)
	Set theme.
PLGUI_API const PLCore::List < Modifier * > &	GetModifiers () const
	Get modifiers.
PLGUI_API Modifier *	GetModifier (const PLCore::String &sName) const
	Get modifier.
PLGUI_API void	AddModifier (Modifier *pModifier)
	Add modifier.
PLGUI_API void	AddModifier (const PLCore::String &sName, Modifier *pModifier)
	Add modifier.
PLGUI_API void	AddModifier (const PLCore::String &sClass, const PLCore::String &sOptions)
	Add modifier.
PLGUI_API void	AddModifier (const PLCore::String &sName, const PLCore::String &sClass, const PLCore::String &sOptions)
	Add modifier.
PLGUI_API void	RemoveModifier (Modifier *pModifier)
	Remove modifier.
PLGUI_API void	RemoveModifier (const PLCore::String &sName)
	Remove modifier.
PLGUI_API Layout *	GetLayout () const
	Get layout.
PLGUI_API void	SetLayout (Layout *pLayout)
	Set layout.
PLGUI_API void	SetLayout (const PLCore::String &sClass, const PLCore::String &sOptions)
	Set layout.
PLGUI_API LayoutHints &	GetLayoutHints ()
	Get layout hints.
PLGUI_API void	AdjustContent ()
	Adjust content of the widget.
PLGUI_API void	UpdateContent ()
	Update content.
Protected Member Functions
PLGUI_API	Widget (Gui *pGui)
	Constructor.
PLGUI_API void	AddChild (Widget *pWidget)
	Add child widget.
PLGUI_API void	RemoveChild (Widget *pWidget)
	Remove child widget.
PLGUI_API bool	ActivateFirstTabStop ()
	Give focus to first tab-stop widget (including this and all children)
PLGUI_API bool	ActivateLastTabStop ()
	Give focus to last tab-stop widget (including this and all children)
PLGUI_API void	DrawBackground (Graphics &cGraphics)
	Draw background.
PLGUI_API void	Draw (Graphics &cGraphics)
	Draw widget.
virtual PLGUI_API void	OnMessage (const GuiMessage &cMessage) override
	Process GUI message.
virtual PLGUI_API PLMath::Vector2i	OnPreferredSize (const PLMath::Vector2i &vRefSize) const override
	Called when the widget is to calculate it's preferred size.
virtual PLGUI_API void	OnThemeChanged () override
	Called when the theme has been changed.
virtual PLGUI_API void	OnUpdateContent () override
	Called when the widget has been changed.
virtual PLGUI_API void	OnAdjustContent () override
	Called when the widget content has to be adjusted.
Protected Attributes
Gui *	m_pGui
bool	m_bManaged
bool	m_bRootWidget
PLCore::uint32	m_nID
PLCore::String	m_sName
Widget *	m_pParent
WidgetImpl *	m_pWidgetImpl
Theme *	m_pTheme
PLCore::List< Widget * >	m_lstChildren
PLCore::List< Modifier * >	m_lstModifiers
PLCore::HashMap < PLCore::String, Modifier * >	m_mapModifiers
Layout *	m_pLayout
LayoutHints	m_cLayoutHints
EWindowState	m_nWindowState
PLMath::Vector2i	m_vPos
PLMath::Vector2i	m_vSize
bool	m_bTopmost
PLCore::String	m_sTitle
Image	m_cIcon
Cursor	m_cCursor
EFocusStyle	m_nFocusStyle
bool	m_bTabStop
bool	m_bCaptureMouse
PLGraphics::Color4	m_cBackgroundColor
PLMath::Vector2i	m_vPreferredSize
void *	m_pUserData

Detailed Description

Widget class.

Remarks:: This class represents a basic widget

Note:

Implementation of the bridge design pattern, this class is the abstraction

Constructor & Destructor Documentation

PLGUI_API PLGui::Widget::Widget	(	Widget *	pParent = `nullptr`,
		bool	bManaged = `false`
	)

Constructor.

Parameters:

[in]	pParent	Pointer to the parent widget
[in]	bManaged	If 'true', the widget is not automatically destroyed by Gui and will not appear in the list of top-level windows

Remarks:: If pParent == nullptr, the root widget of the system GUI is used as parent widget

PLGUI_API PLGui::Widget::Widget ( PLCore::handle nNativeWindowHandle )

Constructor.

Parameters:

[in] nNativeWindowHandle System native window handle

Remarks:: This constructor can be used to wrap an already existing system window into a PLGui Widget, there you need to pass a valid system handle for the window being wrapped. This only works with the system GUI, which is being used automatically.

virtual PLGUI_API PLGui::Widget::~Widget ( ) [virtual]

Destructor.

PLGUI_API PLGui::Widget::Widget ( Gui * pGui ) [protected]

Constructor.

Parameters:

[in] pGui Pointer to the parent GUI

Remarks:: This create a dummy widget for the 'root' of a GUI. This widget is not a real widget, so don't call anything that would need a real widget backend to be present. It is only used to server as a parent for new widgets and should not be used for anything else. Also note that if you pass a root widget as parent, it will be used to obtain the GUI pointer but than be discarded (afterwards, GetParent() of the new widget will return a null pointer)

Member Function Documentation

PLGUI_API Gui* PLGui::Widget::GetGui ( ) const

Get owner GUI.

Returns:: Pointer to GUI object

PLGUI_API WidgetImpl* PLGui::Widget::GetImpl ( ) const

Get implementation.

Returns:: Pointer to platform specific implementation

PLGUI_API PLCore::handle PLGui::Widget::GetNativeWindowHandle ( ) const

Get system native window handle.

Returns:: Native window handle

PLGUI_API PLCore::uint32 PLGui::Widget::GetID ( ) const

Get ID.

Returns:: Widget ID

PLGUI_API void PLGui::Widget::SetID ( PLCore::uint32 nID )

Set ID.

Parameters:

[in] nID Widget ID

PLGUI_API PLCore::String PLGui::Widget::GetName ( ) const

Get name.

Returns:: Widget name

PLGUI_API void PLGui::Widget::SetName ( const PLCore::String & sName )

Set name.

Parameters:

[in] sName Widget name

PLGUI_API PLCore::String PLGui::Widget::GetDescriptor ( ) const

Get descriptor.

Returns:: Descriptor for widget (Name, ID or window handle)

Remarks:: This functions returns a readable descriptor for the widget, which is either the name (if a name has been set), the ID (if set) or the window handle if all of the previous mentioned weren't available. Use this function e.g. to output a widget descriptor in debug messages.

PLGUI_API void* PLGui::Widget::GetUserData ( ) const

Get user defined data.

Returns:: User data

Reimplemented in PLGui::TabBarEntry.

PLGUI_API void PLGui::Widget::SetUserData ( void * pData )

Set user defined data.

Parameters:

[in] pData User data

Reimplemented in PLGui::TabBarEntry.

PLGUI_API bool PLGui::Widget::IsManaged ( ) const

Get whether or not the widget is managed.

Returns:: 'true' if the widget is managed, else 'false'

PLGUI_API PLCore::String PLGui::Widget::GetTitle ( ) const

Get title.

Returns:: Widget title

PLGUI_API void PLGui::Widget::SetTitle ( const PLCore::String & sTitle )

Set title.

Parameters:

[in] sTitle Widget title

PLGUI_API const Image& PLGui::Widget::GetIcon ( ) const

Get icon.

Returns:: Image of window icon

Reimplemented in PLGui::TabBarEntry.

PLGUI_API void PLGui::Widget::SetIcon ( const Image & cIcon )

Set icon.

Parameters:

[in] cIcon Image of window icon

Reimplemented in PLGui::TabBarEntry.

PLGUI_API const Cursor& PLGui::Widget::GetCursor ( ) const

Get cursor.

Returns:: Mouse cursor

PLGUI_API void PLGui::Widget::SetCursor ( const Cursor & cCursor )

Set cursor.

Parameters:

[in] cCursor Mouse cursor

PLGUI_API Widget* PLGui::Widget::GetParent ( ) const

Get parent widget.

Returns:: Parent widget, can be a null pointer

PLGUI_API Widget* PLGui::Widget::GetCommonParent ( const Widget & cWidget ) const

Get common parent of this and another widget.

Parameters:

[in] cWidget The other widget

Returns:: The first widget that is parent of both widgets, or a null pointer if there is none

PLGUI_API Widget* PLGui::Widget::GetTopLevelWidget ( ) const

Get top level widget that is parent of this widget.

Returns:: The top level parent widget, can be this widget

virtual PLGUI_API Widget* PLGui::Widget::GetContentWidget ( ) const [virtual]

Get content widget.

Returns:: Content widget

Remarks:: If a widget is a container for other widgets, a content widget is often used as the parent for all of the child widgets. This is e.g. necessary to separate the "outside" from the "inside", e.g. there may be other (internal) child widgets, that are also children of the same parent (e.g. buttons in the title bar or frame widgets). So if you want to insert widgets inside other widgets, you should use the widget return by GetContentWidget() as the parent widget, not the widget itself. If a widget don't have a content widget, it will return a pointer to itself as the content widget.

Reimplemented in PLGui::Splitter, PLGui::WindowContainer, and PLGui::ContainerWidget.

PLGUI_API const PLCore::List<Widget*>& PLGui::Widget::GetChildren ( ) const

Get list of children.

Returns:: List of child widgets

PLGUI_API Widget* PLGui::Widget::GetFirstChild ( ) const

Get first child widget.

Returns:: Child widget, or a null pointer

PLGUI_API Widget* PLGui::Widget::GetLastChild ( ) const

Get last child widget.

Returns:: Child widget, or a null pointer

PLGUI_API Widget* PLGui::Widget::GetPreviousSibling ( ) const

Get previous sibling widget.

Returns:: Sibling widget, or a null pointer

PLGUI_API Widget* PLGui::Widget::GetNextSibling ( ) const

Get next sibling widget.

Returns:: Sibling widget, or a null pointer

PLGUI_API bool PLGui::Widget::IsTopLevel ( ) const

Check if widget is a top level window.

Returns:: 'true' if the widget is a top level window (has no other parent than the desktop)

PLGUI_API bool PLGui::Widget::IsShowInTaskbar ( ) const

Check if widget is visible in the taskbar.

Returns:: 'true' if the widget is visible in the taskbar, else 'false'

Note:

If the system doesn't support a taskbar, the function will always return 'false'

PLGUI_API void PLGui::Widget::SetShowInTaskbar ( bool bShowInTaskbar )

Set if widget is visible in the taskbar.

Parameters:

[in] bShowInTaskbar 'true' if the widget is visible in the taskbar, else 'false'

See also:

IsShowInTaskbar()

PLGUI_API Screen* PLGui::Widget::GetScreen ( ) const

Get screen the widget is on.

Returns:: Pointer to the screen that contains this widget

PLGUI_API void PLGui::Widget::MoveToScreen ( Screen & cScreen )

Move widget to another screen.

Parameters:

[in] cScreen Screen to which the widget shall be moved

PLGUI_API PLMath::Vector2i PLGui::Widget::GetPos ( ) const

Get widget position.

Returns:: Position (X, Y)

PLGUI_API void PLGui::Widget::SetPos ( const PLMath::Vector2i & vPos )

Set widget position.

Parameters:

[in] vPos Position (X, Y)

PLGUI_API PLMath::Vector2i PLGui::Widget::GetSize ( ) const

Get widget size.

Returns:: Size (width, height)

PLGUI_API void PLGui::Widget::SetSize ( const PLMath::Vector2i & vSize )

Set widget size.

Parameters:

[in] vSize Size (width, height)

PLGUI_API bool PLGui::Widget::GetTopmost ( ) const

Check if widget is topmost (always above all other widgets)

Returns:: 'true' if the widget is topmost, else 'false'

PLGUI_API void PLGui::Widget::SetTopmost ( bool bTopmost )

Set if widget is topmost (always above all other widgets)

Parameters:

[in] bTopmost 'true' if the widget is topmost, else 'false'

Note:

Whenever possible, do not use topmost, this may backfire when you don't expect it

PLGUI_API PLMath::Vector2i PLGui::Widget::GetAbsPos ( ) const

Get absolute widget position.

Returns:: Position (X, Y)

PLGUI_API PLMath::Vector2i PLGui::Widget::GetRelativePos ( Widget & cWidget ) const

Get position relative to another widget.

Parameters:

[in] cWidget Widget to which the relative position shall be computed

Returns:: Position relative to the given widget (X, Y)

PLGUI_API void PLGui::Widget::Center ( ECenter nCenter )

Center widget.

Parameters:

[in] nCenter How to center the widget (see ECenter)

PLGUI_API void PLGui::Widget::CenterOnScreen ( Screen & cScreen )

Center widget relative to the screen.

Parameters:

[in] cScreen Screen to which this widget is centered

PLGUI_API void PLGui::Widget::CenterOnWidget ( Widget & cWidget )

Center widget relative to another widget.

Parameters:

[in] cWidget Widget to which this widget is centered

PLGUI_API void PLGui::Widget::CalculatePreferredSize ( const PLMath::Vector2i & vRefSize = PLMath::Vector2i(-1,-1) )

Calculate preferred size.

Parameters:

[in] vRefSize Precalculated reference size, can be (-1, -1) if no reference size is available

Remarks:: This causes the widget to calculate it's preferred size by calling the virtual function OnPreferredSize() and stores the result. To retrieve the preferred size of a widget, call GetPreferredSize().

PLGUI_API PLMath::Vector2i PLGui::Widget::GetPreferredSize ( ) const

Get preferred size.

Returns:: Preferred size

Remarks:: This return the preferred size of a widget. If the widget does not do it itself (which it should), you have to call CalculatePreferredSize(), in order to calculate the preferred size before retrieving it.

PLGUI_API void PLGui::Widget::FitSize ( )

Set size of widget to fit it's content.

Remarks:: This sets the widget's size to the preferred size (see CalculatePreferredSize())

PLGUI_API void PLGui::Widget::SetZPos	(	EZPos	nZPos,
		Widget *	pWidget = `nullptr`
	)

Set Z position.

Parameters:

[in]	nZPos	Z position (see EZPos)
[in]	pWidget	Other widget used to align relative to (only matters for 'ZAbove' or 'ZBehind')

PLGUI_API EWindowState PLGui::Widget::GetWindowState ( ) const

Get window state.

Returns:: Window state (see EWindowState)

PLGUI_API void PLGui::Widget::SetWindowState ( EWindowState nWindowState )

Set window state.

Parameters:

[in] nWindowState Window state (see EWindowState)

PLGUI_API PLGraphics::Color4 PLGui::Widget::GetBackgroundColor ( ) const

Get background color.

Returns:: Background color

See also:: SetBackgroundColor()

PLGUI_API void PLGui::Widget::SetBackgroundColor ( const PLGraphics::Color4 & cColor )

Set background color.

Parameters:

[in] cColor Background color

Remarks:: The background color is used to automatically fill the background of the widget whenever the background is painted. If you don't want a background to be painted or if you paint it yourself (see OnDrawBackground), set this color to Color4::Transparent.

PLGUI_API void PLGui::Widget::SetTransparency	(	ETransparency	nTransparency,
		const PLGraphics::Color4 &	cColor
	)

Set transparency mode.

Parameters:

[in]	nTransparency	Transparency mode (see ETransparency)
[in]	cColor	If nMode is ColorKey, all pixels of the specified color will be transparent. If nMode is Alpha, only the alpha channel of the color will be used (1.0 = opaque, 0.0 = transparent)

PLGUI_API void PLGui::Widget::Close ( )

Close widget.

Remarks:: "Closing a widget" means sending it a message, that it shall close. This message is sent automatically if you press the 'X'-Button or e.g. with "ALT+F4" on Windows. The default behavior of widgets is: nothing. The default behavior of windows is: destroying the window. You can control the behavior by overriding OnClose() or hooking into SignalClose.

PLGUI_API bool PLGui::Widget::IsDestroyed ( ) const

Check if widget has been destroyed.

Returns:: 'true' if the widget is destroyed, else 'false'

PLGUI_API void PLGui::Widget::Destroy ( )

Destroy widget.

PLGUI_API bool PLGui::Widget::IsVisible ( ) const

Check if widget is visible.

Returns:: 'true' if the widget is visible, else 'false'

PLGUI_API void PLGui::Widget::SetVisible ( bool bVisible )

Show or hide widget.

Parameters:

[in] bVisible 'true' shows the widget, 'false' hides it

Note:

When a widget is created, it is invisible by default

PLGUI_API bool PLGui::Widget::IsEnabled ( ) const

Check if widget is enabled.

Returns:: 'true' if the widget is enabled, else 'false'

PLGUI_API void PLGui::Widget::SetEnabled ( bool bEnabled )

Enable or disable widget.

Parameters:

[in] bEnabled 'true' if the widget is enabled, else 'false'

PLGUI_API EFocusStyle PLGui::Widget::GetFocusStyle ( ) const

Get focus style.

Returns:: Focus style(s)

PLGUI_API void PLGui::Widget::SetFocusStyle ( EFocusStyle nFocusStyle )

Set focus style.

Parameters:

[in] nFocusStyle Focus style(s)

Remarks:: The focus style determines how a widget is able to get the focus. If this is set to NoFocus (as by default), a widget will never get the focus. See EFocusStyle for other possible values.

PLGUI_API bool PLGui::Widget::CanAcceptFocus ( ) const

Check if widget can accept the focus.

Returns:: 'true' if widget can get the focus, else 'false'

Remarks:: Returns 'true' if the focus style is set to AcceptFocus, ChildFocus or ChildFocusOrSelf and the widget is not disabled.

PLGUI_API bool PLGui::Widget::IsTabStop ( )

Get tab-stop.

Returns:: 'true' if widget can get the focus by tabbing, else 'false'

PLGUI_API void PLGui::Widget::SetTabStop ( bool bTabStop )

Set tab-stop.

Parameters:

[in] bTabStop 'true' if widget can get the focus by tabbing, else 'false'

PLGUI_API bool PLGui::Widget::HasFocus ( ) const

Check if widget has the focus.

Returns:: 'true' if this widget has the focus, else 'false'

PLGUI_API bool PLGui::Widget::SetFocus ( )

Set keyboard focus to the widget.

Returns:: 'true' if keyboard focus is accepted by this widget or one of it's child widgets, else 'false'

Remarks:: This function should be called by a GUI backend in order to set the keyboard focus to this widget. The widget will then decide on base of it's parameter, if it accepts the keyboard focus, or if it delegates it to a child widget. It will then call SetFocus() from the backend, to finally set the focus. So don't call this function again when receiving the event caused by SetFocus(), otherwise it will end in an endless loop.

PLGUI_API bool PLGui::Widget::IsActive ( ) const

Check if widget is active (either the widget or one of it's children has the focus)

Returns:: 'true' if this widget is active, else 'false'

PLGUI_API void PLGui::Widget::Activate ( )

Activate a widget (bring it to the top and set the focus to it)

PLGUI_API bool PLGui::Widget::NextTabStop ( bool bForward )

Give keyboard focus to next tab-stop widget.

Parameters:

[in] bForward 'true' to go forward, 'false' to go backwards

Returns:: 'true' if a tab-stop widget could be found, else 'false'

PLGUI_API bool PLGui::Widget::IsMouseIn ( ) const

Check if the mouse is currently inside the widget.

Returns:: 'true' if this widget is the mouse-over widget, else 'false'

PLGUI_API bool PLGui::Widget::IsMouseOver ( ) const

Check if the mouse is currently over either the widget or one of it's child widgets.

Returns:: 'true' if mouse-over, else 'false'

PLGUI_API bool PLGui::Widget::GetMousePos ( PLMath::Vector2i & vPos ) const

Get current mouse cursor position inside the widget.

Parameters:

[out] vPos Receives the mouse cursor position if all went fine, on error, the given variable is not manipulated

Returns:: 'true' if all went fine, else 'false' (maybe the mouse cursor is currently not over the widget?)

virtual PLGUI_API PLCore::uint32 PLGui::Widget::GetWidgetState ( ) const [virtual]

Get widget state.

Returns:: Widget states as flags (see EWidgetState)

Remarks:: This returns the current states of the widget together as a single flags-variable containing a combination of the values defined by EWidgetState. Not that this virtual function can be overwritten in derived classes to modify it's behavior according to the widget or add new states (e.g. WidgetPressed for buttons)

PLGUI_API void PLGui::Widget::Redraw ( )

Redraw widget.

PLGUI_API void PLGui::Widget::RedrawAll ( )

Redraw widget and all child widgets.

PLGUI_API bool PLGui::Widget::IsCaptureMouse ( ) const

Check if widget has captured mouse input.

Returns:: 'true' if the mouse is captured by the widget, else 'false'

PLGUI_API void PLGui::Widget::SetCaptureMouse ( bool bCapture )

Capture mouse input.

Parameters:

[in] bCapture 'true' if the mouse should be captured by the widget, else 'false'

PLGUI_API void PLGui::Widget::SetTrapMouse ( bool bTrap )

Trap mouse inside the widget.

Parameters:

[in] bTrap 'true' if the mouse should be trapped inside the widget, else 'false'

PLGUI_API PLCore::uint32 PLGui::Widget::RegisterHotkey	(	PLCore::uint32	nModKey,
		PLCore::uint32	nKey
	)

Register a hotkey.

Parameters:

[in]	nModKey	Modification key (for example PLGUIMOD_ALT)
[in]	nKey	Key (for example PLGUIKEY_RETURN)

Returns:: Hotkey ID, 0 on error

PLGUI_API void PLGui::Widget::UnregisterHotkey ( PLCore::uint32 nID )

Unregister a hotkey.

Parameters:

[in] nID Hotkey ID

PLGUI_API Theme* PLGui::Widget::GetTheme ( ) const

Get theme.

Returns:: Pointer to current theme

PLGUI_API void PLGui::Widget::SetTheme ( Theme * pTheme )

Set theme.

Parameters:

[in] pTheme Theme

PLGUI_API const PLCore::List<Modifier*>& PLGui::Widget::GetModifiers ( ) const

Get modifiers.

Returns:: List of modifiers that belong to the widget

PLGUI_API Modifier* PLGui::Widget::GetModifier ( const PLCore::String & sName ) const

Get modifier.

Parameters:

[in] sName Name of modifier

Remarks:: Modifier, or a null pointer if no modifier with that name exists

PLGUI_API void PLGui::Widget::AddModifier ( Modifier * pModifier )

Add modifier.

Parameters:

[in] pModifier Pointer to the new modifier

Remarks:: The widget will take over the modifier and also destroy it later

PLGUI_API void PLGui::Widget::AddModifier	(	const PLCore::String &	sName,
		Modifier *	pModifier
	)

Add modifier.

Parameters:

[in]	sName	Name of modifier (can be empty)
[in]	pModifier	Pointer to the new modifier

Remarks:: The widget will take over the modifier and also destroy it later. The name of the modifier is optional and can be left empty, if a name is provided, it must be unique. If a name is provided and there is already a modifier with the same name, the old modifier is destroyed and replaced by the new one.

PLGUI_API void PLGui::Widget::AddModifier	(	const PLCore::String &	sClass,
		const PLCore::String &	sOptions
	)

Add modifier.

Parameters:

[in]	sClass	Name of the modifier class
[in]	sOptions	Options for the modifier

PLGUI_API void PLGui::Widget::AddModifier	(	const PLCore::String &	sName,
		const PLCore::String &	sClass,
		const PLCore::String &	sOptions
	)

Add modifier.

Parameters:

[in]	sName	Name of modifier (can be empty)
[in]	sClass	Name of the modifier class
[in]	sOptions	Options for the modifier

Remarks:: The name of the modifier is optional and can be left empty, if a name is provided, it must be unique. If a name is provided and there is already a modifier with the same name, the old modifier is destroyed and replaced by the new one.

PLGUI_API void PLGui::Widget::RemoveModifier ( Modifier * pModifier )

Remove modifier.

Parameters:

[in] pModifier Pointer to the modifier

Remarks:: The widget will remove and delete the modifier

PLGUI_API void PLGui::Widget::RemoveModifier ( const PLCore::String & sName )

Remove modifier.

Parameters:

[in] sName Name of modifier

Remarks:: The widget will remove and delete the modifier

PLGUI_API Layout* PLGui::Widget::GetLayout ( ) const

Get layout.

Returns:: Layout

Remarks:: As a layout is just a modifier, this is equal to GetModifier("Layout")

PLGUI_API void PLGui::Widget::SetLayout ( Layout * pLayout )

Set layout.

Parameters:

[in] pLayout Layout

PLGUI_API void PLGui::Widget::SetLayout	(	const PLCore::String &	sClass,
		const PLCore::String &	sOptions
	)

Set layout.

Parameters:

[in]	sClass	Layout class
[in]	sOptions	Layout options

PLGUI_API LayoutHints& PLGui::Widget::GetLayoutHints ( )

Get layout hints.

Remarks:: For widgets that are positioned by a layout manager, additional hints can be set for the layout manager on how to layout the specific widget. These options include e.g. the minimum and maximum size, hints on when and how to resize the widget etc. Note that it depends on the layout manager, which (if any) of the layout hints it uses to modify the layout behavior.

PLGUI_API void PLGui::Widget::AdjustContent ( )

Adjust content of the widget.

PLGUI_API void PLGui::Widget::UpdateContent ( )

Update content.

Remarks:: This function has to be called by a widget whenever it has been changed in a way that could alter it's appearance or size. E.G. if the text of a label has been altered, it will most certainly change the size of the text label on the screen. To indicate this, the widget has to call UpdateContent() after such a change, so that the layout of the parent widget can be updated accordingly.

PLGUI_API void PLGui::Widget::AddChild ( Widget * pWidget ) [protected]

Add child widget.

Parameters:

[in] pWidget Widget to add

PLGUI_API void PLGui::Widget::RemoveChild ( Widget * pWidget ) [protected]

Remove child widget.

Parameters:

[in] pWidget Widget to remove

PLGUI_API bool PLGui::Widget::ActivateFirstTabStop ( ) [protected]

Give focus to first tab-stop widget (including this and all children)

Returns:: 'true' if a tab-stop widget could be found, else 'false'

PLGUI_API bool PLGui::Widget::ActivateLastTabStop ( ) [protected]

Give focus to last tab-stop widget (including this and all children)

Returns:: 'true' if a tab-stop widget could be found, else 'false'

PLGUI_API void PLGui::Widget::DrawBackground ( Graphics & cGraphics ) [protected]

Draw background.

Parameters:

[in] cGraphics Graphics object used for painting

PLGUI_API void PLGui::Widget::Draw ( Graphics & cGraphics ) [protected]

Draw widget.

Parameters:

[in] cGraphics Graphics object used for painting

virtual PLGUI_API void PLGui::Widget::OnMessage ( const GuiMessage & cMessage ) [override, protected, virtual]

Process GUI message.

Parameters:

[in] cMessage GUI message

Remarks:: Usually, you should not override this method, but rather use the virtual functions that are called after a specific message arrived (e.g. OnShow(), OnClose() etc.). If you decide to override this method, make sure to call the base implementation first, otherwise the messages will not be processed and no virtual functions or events will be called anymore.

Reimplemented from PLGui::WidgetFunctions.

virtual PLGUI_API PLMath::Vector2i PLGui::Widget::OnPreferredSize ( const PLMath::Vector2i & vRefSize ) const [override, protected, virtual]

Called when the widget is to calculate it's preferred size.

Parameters:

[in] vRefSize Precalculated reference size, can be (-1, -1) if no reference size is available

Returns:: Preferred size

Remarks:: If the widget returns -1 in a component (X/Y), it means that there is no preferred size in that direction. A layout will in that case use 'as much space as possible', while the FitSize() functions will use the current size.

Reimplemented from PLGui::WidgetFunctions.

Reimplemented in PLGui::TabBar, PLGui::TabBarEntry, PLGui::AbstractMenu, PLGui::Splitter, PLGui::Border, PLGui::ScrollBar, PLGui::Slider, PLGui::Panel, PLGui::Button, PLGui::CheckBox, PLGui::MenuBar, PLGui::RadioButton, and PLGui::SlimEntry.

virtual PLGUI_API void PLGui::Widget::OnThemeChanged ( ) [override, protected, virtual]

Called when the theme has been changed.

Remarks:: This event is caused, when the widget gets a new theme. Use this to perform all tasks necessary to adjust to the new theme, e.g. resizing certain child widgets or redrawing the widget.

Reimplemented from PLGui::WidgetFunctions.

Reimplemented in PLGui::ContainerWidget.

virtual PLGUI_API void PLGui::Widget::OnUpdateContent ( ) [override, protected, virtual]

Called when the widget has been changed.

Remarks:: This event is caused, when the widget calls UpdateContent() to indicate that the widget has been changed in a way that could affect it's size or appearance. This is used to perform an AdjustContent() on the parent widget, whenever the size of a child widget could have been altered.

Reimplemented from PLGui::WidgetFunctions.

virtual PLGUI_API void PLGui::Widget::OnAdjustContent ( ) [override, protected, virtual]

Called when the widget content has to be adjusted.

Reimplemented from PLGui::WidgetFunctions.

Reimplemented in PLGui::TabBar, PLGui::TabBarEntry, PLGui::Window, PLGui::WindowContainer, PLGui::TabContainer, PLGui::Splitter, PLGui::ScrollWidget, PLGui::Border, PLGui::Panel, and PLGui::ContainerWidget.
