PLGui::TabBar Class Reference

Tab bar widget. More...

#include <TabBar.h>

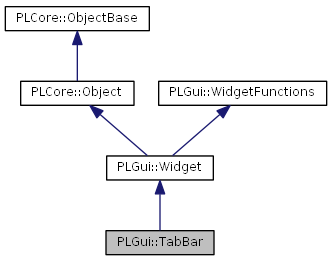

Inheritance diagram for PLGui::TabBar:

List of all members.

Public Member Functions
PLGUI_API	TabBar (Widget *pParent=nullptr)
	Constructor.
virtual PLGUI_API	~TabBar ()
	Destructor.
PLGUI_API ESide	GetSide () const
	Get side the tabbar is positioned on.
PLGUI_API void	SetSide (ESide nSide)
	Set side the tabbar is positioned on.
PLGUI_API PLCore::uint32	GetOptions () const
	Get TabBar options.
PLGUI_API void	SetOptions (PLCore::uint32 nOptions)
	Set TabBar options.
PLGUI_API PLCore::uint32	GetTabWidth () const
	Get tab width.
PLGUI_API void	SetTabWidth (PLCore::uint32 nWidth)
	Set tab width.
PLGUI_API PLCore::uint32	GetTabHeight () const
	Get tab height.
PLGUI_API void	SetTabHeight (PLCore::uint32 nHeight)
	Set tab height.
PLGUI_API void	CreateTab ()
	Create a new tab.
PLGUI_API void	CloseTab (TabBarEntry *pTab)
	Close tab.
PLGUI_API void	CloseTab (PLCore::uint32 nTab)
	Close tab.
PLGUI_API const PLCore::Container< TabBarEntry * > &	GetTabs () const
	Get list of tabs.
PLGUI_API TabBarEntry *	AddTab (const PLCore::String &sText)
	Add tab.
PLGUI_API TabBarEntry *	AddTab (const PLCore::String &sText, const Image &cIcon)
	Add tab.
PLGUI_API bool	RemoveTab (TabBarEntry *pTab)
	Remove tab.
PLGUI_API bool	RemoveTab (PLCore::uint32 nTab)
	Remove tab.
PLGUI_API int	GetSelection () const
	Get currently selected tab.
PLGUI_API void	SetSelection (int nTab)
	Set currently selected tab.
PLGUI_API int	GetScrollingPos () const
	Get scrolling position.
PLGUI_API void	SetScrollingPos (int nTab)
	Set scrolling position.
PLGUI_API int	GetMouseSelection () const
	Get tab that is currently selected by the mouse.
Public Attributes
PLCore::Event< TabBarEntry * >	EventAddTab
PLCore::Event< TabBarEntry * >	EventRemoveTab
PLCore::Event< TabBarEntry * >	EventCloseTab
PLCore::Event< int >	EventSelectTab
PLCore::Event	EventCreateTab
ESide	m_nSide
PLCore::uint32	m_nOptions
PLCore::uint32	m_nTabWidth
PLCore::uint32	m_nTabHeight
PLCore::List< TabBarEntry * >	m_lstTabs
int	m_nSelection
int	m_nMouseSelection
int	m_nScrollingPos
TabBarButton *	m_pButtonCreate
TabBarButton *	m_pButtonNext
TabBarButton *	m_pButtonPrev
Protected Member Functions
PLGUI_API void	RedrawTab (int nTab)
	Redraw tab.
PLGUI_API void	SetMouseSelection (int nTab)
	Set tab that is currently selected by the mouse.
virtual PLGUI_API PLMath::Vector2i	OnPreferredSize (const PLMath::Vector2i &vRefSize) const
	Called when the widget is to calculate it's preferred size.
virtual PLGUI_API void	OnAdjustContent ()
	Called when the widget content has to be adjusted.
virtual PLGUI_API void	OnAddTab (TabBarEntry *pTab)
	Called when a new tab is added.
virtual PLGUI_API void	OnRemoveTab (TabBarEntry *pTab)
	Called when a tab is removed.
virtual PLGUI_API void	OnCloseTab (TabBarEntry *pTab)
	Called when a tab shall be closed.
virtual PLGUI_API void	OnSelectTab (int nTab)
	Called when the current selection has been changed.
virtual PLGUI_API void	OnCreateTab ()
	Called when a new tab shall be created.

---

Detailed Description

Tab bar widget.

---

Constructor & Destructor Documentation

PLGUI_API PLGui::TabBar::TabBar

(

Widget *

pParent = nullptr

)

Constructor.

Parameters:

[in]

pParent

Pointer to parent widget

virtual PLGUI_API PLGui::TabBar::~TabBar

(

)

[virtual]

Destructor.

---

Member Function Documentation

PLGUI_API ESide PLGui::TabBar::GetSide

(

)

const

Get side the tabbar is positioned on.

Returns:

Side

PLGUI_API void PLGui::TabBar::SetSide

(

ESide

nSide

)

Set side the tabbar is positioned on.

Parameters:

[in]

nSide

Side

PLGUI_API PLCore::uint32 PLGui::TabBar::GetOptions

(

)

const

Get TabBar options.

Returns:

TabBar options (combination of ETabBarOption values)

PLGUI_API void PLGui::TabBar::SetOptions

(

PLCore::uint32

nOptions

)

Set TabBar options.

Parameters:

[in]

nOptions

TabBar options

PLGUI_API PLCore::uint32 PLGui::TabBar::GetTabWidth

(

)

const

Get tab width.

Returns:

Tab width

Remarks:

see SetTabWidth()

PLGUI_API void PLGui::TabBar::SetTabWidth

(

PLCore::uint32

nWidth

)

Set tab width.

Parameters:

[in]

nWidth

Tab width

Note:

• If side is SideTop or SideBottom and StaticTabSize is *not* set, tabs have a floating size. In that case, the width set by nWidth is the maximum size that a tab can have.
• If side is SideLeft or SideRight, or StaticTabSize is set, tabs have a static size. In that case, every tab will get exactly the width set by nWidth.

PLGUI_API PLCore::uint32 PLGui::TabBar::GetTabHeight

(

)

const

Get tab height.

Returns:

Tab height

PLGUI_API void PLGui::TabBar::SetTabHeight

(

PLCore::uint32

nHeight

)

Set tab height.

Parameters:

[in]

nHeight

Tab height

PLGUI_API void PLGui::TabBar::CreateTab

(

)

Create a new tab.

Remarks:

CreateTab creates an event saying that a new tab shall be created. This does not do anything automatically, so you have to catch the event and call AddTab() to actually create a new tab.

PLGUI_API void PLGui::TabBar::CloseTab

(

TabBarEntry *

pTab

)

Close tab.

Parameters:

[in]

pTab

Tab

Remarks:

See CloseTab(PLCore::uint32 nTab)

PLGUI_API void PLGui::TabBar::CloseTab

(

PLCore::uint32

nTab

)

Close tab.

Parameters:

[in]

nTab

Tab index

Remarks:

CloseTab creates an event saying that the given tab shall be closed (the same as when the used has actually clicked on the tab's 'x'-button). This does not automatically remove the tab but only generate the event. Do actually remove a tab, use RemoveTab().

PLGUI_API const PLCore::Container<TabBarEntry*>& PLGui::TabBar::GetTabs

(

)

const

Get list of tabs.

Returns:

List of tabs

PLGUI_API TabBarEntry* PLGui::TabBar::AddTab

(

const PLCore::String &

sText

)

Add tab.

Parameters:

[in]

sText

Tab text

Returns:

New tab entry

PLGUI_API TabBarEntry* PLGui::TabBar::AddTab	(	const PLCore::String &	sText,
		const Image &	cIcon
	)

Add tab.

Parameters:

[in]	sText	Tab text
[in]	cIcon	Image

Returns:

New tab entry

PLGUI_API bool PLGui::TabBar::RemoveTab

(

TabBarEntry *

pTab

)

Remove tab.

Parameters:

[in]

pTab

Tab

Returns:

'true' if all went fine, else 'false'

PLGUI_API bool PLGui::TabBar::RemoveTab

(

PLCore::uint32

nTab

)

Remove tab.

Parameters:

[in]

nTab

Tab index

Returns:

'true' if all went fine, else 'false'

PLGUI_API int PLGui::TabBar::GetSelection

(

)

const

Get currently selected tab.

Returns:

Index of currently selected tab

PLGUI_API void PLGui::TabBar::SetSelection

(

int

nTab

)

Set currently selected tab.

Parameters:

[in]

nTab

Index of currently selected tab

PLGUI_API int PLGui::TabBar::GetScrollingPos

(

)

const

Get scrolling position.

Returns:

Index of first visible tab

PLGUI_API void PLGui::TabBar::SetScrollingPos

(

int

nTab

)

Set scrolling position.

Parameters:

[in]

nTab

Index of first visible tab

PLGUI_API int PLGui::TabBar::GetMouseSelection

(

)

const

Get tab that is currently selected by the mouse.

Returns:

Index of currently selected tab

PLGUI_API void PLGui::TabBar::RedrawTab

(

int

nTab

)

[protected]

Redraw tab.

Parameters:

[in]

nTab

Index of tab

PLGUI_API void PLGui::TabBar::SetMouseSelection

(

int

nTab

)

[protected]

Set tab that is currently selected by the mouse.

Parameters:

[in]

nTab

Index of currently selected tab

virtual PLGUI_API PLMath::Vector2i PLGui::TabBar::OnPreferredSize

(

const PLMath::Vector2i &

vRefSize

)

const [protected, virtual]

Called when the widget is to calculate it's preferred size.

Parameters:

[in]

vRefSize

Precalculated reference size, can be (-1, -1) if no reference size is available

Returns:

Preferred size

Remarks:

If the widget returns -1 in a component (X/Y), it means that there is no preferred size in that direction. A layout will in that case use 'as much space as possible', while the FitSize() functions will use the current size.

Reimplemented from PLGui::Widget.

virtual PLGUI_API void PLGui::TabBar::OnAdjustContent

(

)

[protected, virtual]

Called when the widget content has to be adjusted.

Reimplemented from PLGui::Widget.

virtual PLGUI_API void PLGui::TabBar::OnAddTab

(

TabBarEntry *

pTab

)

[protected, virtual]

Called when a new tab is added.

Parameters:

[in]

pTab

Tab

virtual PLGUI_API void PLGui::TabBar::OnRemoveTab

(

TabBarEntry *

pTab

)

[protected, virtual]

Called when a tab is removed.

Parameters:

[in]

pTab

Tab

virtual PLGUI_API void PLGui::TabBar::OnCloseTab

(

TabBarEntry *

pTab

)

[protected, virtual]

Called when a tab shall be closed.

Parameters:

[in]

pTab

Tab

virtual PLGUI_API void PLGui::TabBar::OnSelectTab

(

int

nTab

)

[protected, virtual]

Called when the current selection has been changed.

Parameters:

[in]

nTab

Index of currently selected tab

virtual PLGUI_API void PLGui::TabBar::OnCreateTab

(

)

[protected, virtual]

Called when a new tab shall be created.

---

Member Data Documentation

PLCore::Event<TabBarEntry*> PLGui::TabBar::EventAddTab

New tab is added

PLCore::Event<TabBarEntry*> PLGui::TabBar::EventRemoveTab

Tab is removed

PLCore::Event<TabBarEntry*> PLGui::TabBar::EventCloseTab

Tab is to be closed

PLCore::Event<int> PLGui::TabBar::EventSelectTab

Current selection has been changed

PLCore::Event PLGui::TabBar::EventCreateTab

New tab shall be created

ESide PLGui::TabBar::m_nSide

Side the tabbar is positioned on

PLCore::uint32 PLGui::TabBar::m_nOptions

TabBar options (ETabBarOption)

PLCore::uint32 PLGui::TabBar::m_nTabWidth

Tab width

PLCore::uint32 PLGui::TabBar::m_nTabHeight

Tab height

PLCore::List<TabBarEntry*> PLGui::TabBar::m_lstTabs

List of tabs

int PLGui::TabBar::m_nSelection

Index of currently selected tab

int PLGui::TabBar::m_nMouseSelection

Index of tab currently selected by the mouse

int PLGui::TabBar::m_nScrollingPos

First displayed tab (scrolling)

TabBarButton* PLGui::TabBar::m_pButtonCreate

Button to create a new tab

TabBarButton* PLGui::TabBar::m_pButtonNext

Button to scroll (next)

TabBarButton* PLGui::TabBar::m_pButtonPrev

Button to scroll (previous)

---

The documentation for this class was generated from the following file:

• TabBar.h
