Widget functions base class. More...

#include <WidgetFunctions.h>

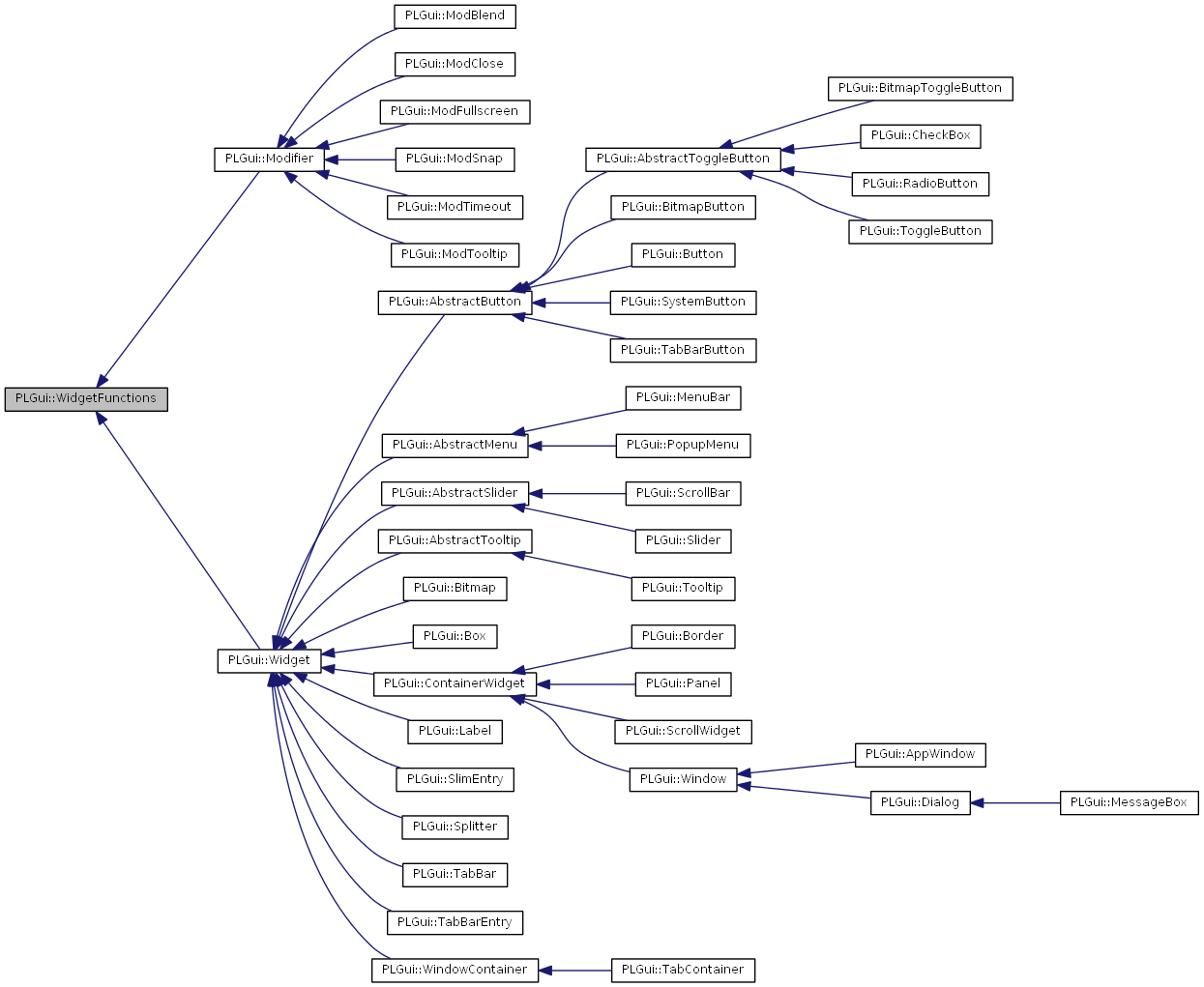

Inheritance diagram for PLGui::WidgetFunctions:

[legend]

Public Member Functions
PLGUI_API	WidgetFunctions ()
	Constructor.
virtual PLGUI_API	~WidgetFunctions ()
	Destructor.
Protected Member Functions
virtual PLGUI_API void	OnMessage (const GuiMessage &cMessage)
	Process GUI message.
virtual PLGUI_API void	OnThemeChanged ()
	Called when the theme has been changed.
virtual PLGUI_API void	OnUpdateContent ()
	Called when the widget has been changed.
virtual PLGUI_API void	OnUpdateChildWidget (Widget *pWidget)
	Called when a child widget has been changed.
virtual PLGUI_API void	OnAddChildWidget (Widget *pWidget)
	Called when a child window has been added.
virtual PLGUI_API void	OnRemoveChildWidget (Widget *pWidget)
	Called when a child window has been removed.
virtual PLGUI_API void	OnClose ()
	Called when the widget shall be closed.
virtual PLGUI_API void	OnCreate ()
	Called after the widget has been created.
virtual PLGUI_API void	OnDestroy ()
	Called before the widget is destroyed.
virtual PLGUI_API void	OnShow ()
	Called when the widget is shown.
virtual PLGUI_API void	OnHide ()
	Called when the widget gets hidden.
virtual PLGUI_API void	OnEnable ()
	Called when the widget is enabled.
virtual PLGUI_API void	OnDisable ()
	Called when the widget gets disabled.
virtual PLGUI_API void	OnGetFocus ()
	Called when the widget gets the keyboard focus.
virtual PLGUI_API void	OnLooseFocus ()
	Called when the widget looses the keyboard focus.
virtual PLGUI_API void	OnActivate (bool bActivate)
	Called when the widget has been activated or deactivated (focus has changed)
virtual PLGUI_API void	OnDrawBackground (Graphics &cGraphics)
	Called to draw the widget background.
virtual PLGUI_API void	OnDraw (Graphics &cGraphics)
	Called to draw the widget.
virtual PLGUI_API void	OnMove (const PLMath::Vector2i &vPos)
	Called when the widget gets moved.
virtual PLGUI_API void	OnSize (const PLMath::Vector2i &vSize)
	Called when the widget gets resized.
virtual PLGUI_API void	OnWindowState (EWindowState nWindowState)
	Called when the window state has changed.
virtual PLGUI_API void	OnEnterFullscreen ()
	Called when fullscreen mode is activated.
virtual PLGUI_API void	OnLeaveFullscreen ()
	Called when fullscreen mode is deactivated.
virtual PLGUI_API PLMath::Vector2i	OnPreferredSize (const PLMath::Vector2i &vRefSize) const
	Called when the widget is to calculate it's preferred size.
virtual PLGUI_API void	OnAdjustContent ()
	Called when the widget content has to be adjusted.
virtual PLGUI_API void	OnMouseEnter ()
	Called when the mouse has entered the widget.
virtual PLGUI_API void	OnMouseLeave ()
	Called when the mouse has left the widget.
virtual PLGUI_API void	OnMouseOver (bool bMouseOver)
	Called when the mouse-over state of the widget has changed.
virtual PLGUI_API void	OnMouseMove (const PLMath::Vector2i &vPos)
	Called when the mouse is moved within the widget or captured by it.
virtual PLGUI_API void	OnMouseHover ()
	Called when the mouse hovers over the widget.
virtual PLGUI_API void	OnMousePosUpdate (const PLMath::Vector2i &vPos)
	Called when the mouse position inside the widget has changed.
virtual PLGUI_API void	OnMouseButtonDown (PLCore::uint32 nButton, const PLMath::Vector2i &vPos)
	Called when a mouse button is pressed.
virtual PLGUI_API void	OnMouseButtonUp (PLCore::uint32 nButton, const PLMath::Vector2i &vPos)
	Called when a mouse button is released.
virtual PLGUI_API void	OnMouseButtonClick (PLCore::uint32 nButton, const PLMath::Vector2i &vPos)
	Called when a mouse button is clicked.
virtual PLGUI_API void	OnMouseButtonDoubleClick (PLCore::uint32 nButton, const PLMath::Vector2i &vPos)
	Called when a mouse button is double-clicked.
virtual PLGUI_API void	OnMouseWheel (int nDelta)
	Called when the mouse wheel is used.
virtual PLGUI_API void	OnKeyDown (PLCore::uint32 nKey, PLCore::uint32 nModifiers)
	Called when a key was pressed.
virtual PLGUI_API void	OnKeyUp (PLCore::uint32 nKey, PLCore::uint32 nModifiers)
	Called when a key was released.
virtual PLGUI_API void	OnHotkey (PLCore::uint32 nHotkey)
	Called when a hotkey was pressed.
virtual PLGUI_API void	OnDrop (const DataObject &cData)
	Called when data has been dropped onto the widget.
virtual PLGUI_API void	OnUserMessage (PLCore::uint32 nData, void *pDataPtr)
	Called when a user defined message has been sent.

Detailed Description

Widget functions base class.

Remarks:: This base class is used for classes, that respond to widget events, such as Widget itself and Modifier

Constructor & Destructor Documentation

PLGUI_API PLGui::WidgetFunctions::WidgetFunctions ( )

Constructor.

virtual PLGUI_API PLGui::WidgetFunctions::~WidgetFunctions ( ) [virtual]

Destructor.

Member Function Documentation

virtual PLGUI_API void PLGui::WidgetFunctions::OnMessage ( const GuiMessage & cMessage ) [protected, virtual]

Process GUI message.

Parameters:

[in] cMessage GUI message

Remarks:: Usually, you should not override this method, but rather use the virtual functions that are called after a specific message arrived (e.g. OnShow(), OnClose() etc.). If you decide to override this method, make sure to call the base implementation first, otherwise the messages will not be processed and no virtual functions or events will be called anymore.

Reimplemented in PLGui::Widget, and PLGui::Modifier.

virtual PLGUI_API void PLGui::WidgetFunctions::OnThemeChanged ( ) [protected, virtual]

Called when the theme has been changed.

Remarks:: This event is caused, when the widget gets a new theme. Use this to perform all tasks necessary to adjust to the new theme, e.g. resizing certain child widgets or redrawing the widget.

Reimplemented in PLGui::Widget, and PLGui::ContainerWidget.

virtual PLGUI_API void PLGui::WidgetFunctions::OnUpdateContent ( ) [protected, virtual]

Called when the widget has been changed.

Remarks:: This event is caused, when the widget calls UpdateContent() to indicate that the widget has been changed in a way that could affect it's size or appearance. This is used to perform an AdjustContent() on the parent widget, whenever the size of a child widget could have been altered.

Reimplemented in PLGui::Widget.

virtual PLGUI_API void PLGui::WidgetFunctions::OnUpdateChildWidget ( Widget * pWidget ) [protected, virtual]

Called when a child widget has been changed.

Remarks:: After an UpdateContent()-event has been called on a widget, it will cause an UpdateChildWidget()-event on it's parent widget. See OnUpdateContent() for further detail on UpdateContent()-events.

virtual PLGUI_API void PLGui::WidgetFunctions::OnAddChildWidget ( Widget * pWidget ) [protected, virtual]

Called when a child window has been added.

Parameters:

[in] pWidget Widget

virtual PLGUI_API void PLGui::WidgetFunctions::OnRemoveChildWidget ( Widget * pWidget ) [protected, virtual]

Called when a child window has been removed.

Parameters:

[in] pWidget Widget

virtual PLGUI_API void PLGui::WidgetFunctions::OnClose ( ) [protected, virtual]

Called when the widget shall be closed.

Reimplemented in PLGui::Dialog, and PLGui::ModClose.

virtual PLGUI_API void PLGui::WidgetFunctions::OnCreate ( ) [protected, virtual]

Called after the widget has been created.

virtual PLGUI_API void PLGui::WidgetFunctions::OnDestroy ( ) [protected, virtual]

Called before the widget is destroyed.

virtual PLGUI_API void PLGui::WidgetFunctions::OnShow ( ) [protected, virtual]

Called when the widget is shown.

Reimplemented in PLGui::ModTimeout.

virtual PLGUI_API void PLGui::WidgetFunctions::OnHide ( ) [protected, virtual]

Called when the widget gets hidden.

virtual PLGUI_API void PLGui::WidgetFunctions::OnEnable ( ) [protected, virtual]

Called when the widget is enabled.

virtual PLGUI_API void PLGui::WidgetFunctions::OnDisable ( ) [protected, virtual]

Called when the widget gets disabled.

Reimplemented in PLGui::AbstractButton, PLGui::ScrollBar, and PLGui::Slider.

virtual PLGUI_API void PLGui::WidgetFunctions::OnGetFocus ( ) [protected, virtual]

Called when the widget gets the keyboard focus.

Reimplemented in PLGui::AbstractButton, and PLGui::AbstractMenu.

virtual PLGUI_API void PLGui::WidgetFunctions::OnLooseFocus ( ) [protected, virtual]

Called when the widget looses the keyboard focus.

Reimplemented in PLGui::AbstractButton, and PLGui::AbstractMenu.

virtual PLGUI_API void PLGui::WidgetFunctions::OnActivate ( bool bActivate ) [protected, virtual]

Called when the widget has been activated or deactivated (focus has changed)

Parameters:

[in] bActivate 'true' if the widget itself or one of it's child widgets had the focus, else 'false'

Reimplemented in PLGui::Window.

virtual PLGUI_API void PLGui::WidgetFunctions::OnDrawBackground ( Graphics & cGraphics ) [protected, virtual]

Called to draw the widget background.

Parameters:

[in] cGraphics Graphics object used for painting

virtual PLGUI_API void PLGui::WidgetFunctions::OnDraw ( Graphics & cGraphics ) [protected, virtual]

Called to draw the widget.

Parameters:

[in] cGraphics Graphics object used for painting

Reimplemented in PLGui::Window, PLGui::Splitter, PLGui::Border, PLGui::ScrollBar, PLGui::Slider, PLGui::PopupMenu, PLGui::Panel, PLGui::Tooltip, PLGui::Button, PLGui::SlimEntry, PLGui::CheckBox, PLGui::MenuBar, and PLGui::RadioButton.

virtual PLGUI_API void PLGui::WidgetFunctions::OnMove ( const PLMath::Vector2i & vPos ) [protected, virtual]

Called when the widget gets moved.

Parameters:

[in] vPos Position

Reimplemented in PLGui::Window, and PLGui::ModSnap.

virtual PLGUI_API void PLGui::WidgetFunctions::OnSize ( const PLMath::Vector2i & vSize ) [protected, virtual]

Called when the widget gets resized.

Parameters:

[in] vSize Size

Reimplemented in PLGui::ScrollWidget.

virtual PLGUI_API void PLGui::WidgetFunctions::OnWindowState ( EWindowState nWindowState ) [protected, virtual]

Called when the window state has changed.

Parameters:

[in] nWindowState Window state

Reimplemented in PLGui::Window.

virtual PLGUI_API void PLGui::WidgetFunctions::OnEnterFullscreen ( ) [protected, virtual]

Called when fullscreen mode is activated.

Reimplemented in PLGui::Window.

virtual PLGUI_API void PLGui::WidgetFunctions::OnLeaveFullscreen ( ) [protected, virtual]

Called when fullscreen mode is deactivated.

Reimplemented in PLGui::Window.

virtual PLGUI_API PLMath::Vector2i PLGui::WidgetFunctions::OnPreferredSize ( const PLMath::Vector2i & vRefSize ) const [protected, virtual]

Called when the widget is to calculate it's preferred size.

Parameters:

[in] vRefSize Precalculated reference size, can be (-1, -1) if no reference size is available

Returns:: Preferred size

Remarks:: If the widget returns -1 in a component (X/Y), it means that there is no preferred size in that direction. A layout will in that case use 'as much space as possible', while the FitSize() functions will use the current size.

Reimplemented in PLGui::Widget, PLGui::TabBar, PLGui::TabBarEntry, PLGui::AbstractMenu, PLGui::Splitter, PLGui::Border, PLGui::ScrollBar, PLGui::Slider, PLGui::Panel, PLGui::Button, PLGui::CheckBox, PLGui::MenuBar, PLGui::RadioButton, and PLGui::SlimEntry.

virtual PLGUI_API void PLGui::WidgetFunctions::OnAdjustContent ( ) [protected, virtual]

Called when the widget content has to be adjusted.

Reimplemented in PLGui::Widget, PLGui::TabBar, PLGui::TabBarEntry, PLGui::Window, PLGui::WindowContainer, PLGui::TabContainer, PLGui::Splitter, PLGui::ScrollWidget, PLGui::Border, PLGui::Panel, and PLGui::ContainerWidget.

virtual PLGUI_API void PLGui::WidgetFunctions::OnMouseEnter ( ) [protected, virtual]

Called when the mouse has entered the widget.

Reimplemented in PLGui::AbstractButton, PLGui::TabBarEntry, PLGui::TabBarButton, and PLGui::Button.

virtual PLGUI_API void PLGui::WidgetFunctions::OnMouseLeave ( ) [protected, virtual]

Called when the mouse has left the widget.

Reimplemented in PLGui::AbstractButton, PLGui::TabBarEntry, PLGui::Window, PLGui::Splitter, PLGui::TabBarButton, PLGui::ScrollBar, PLGui::Slider, and PLGui::Button.

virtual PLGUI_API void PLGui::WidgetFunctions::OnMouseOver ( bool bMouseOver ) [protected, virtual]

Called when the mouse-over state of the widget has changed.

Parameters:

[in] bMouseOver 'true' if the mouse is over the widget or a child widget, else 'false'

Reimplemented in PLGui::ModBlend.

virtual PLGUI_API void PLGui::WidgetFunctions::OnMouseMove ( const PLMath::Vector2i & vPos ) [protected, virtual]

Called when the mouse is moved within the widget or captured by it.

Parameters:

[in] vPos Mouse position within the widget

Reimplemented in PLGui::AbstractButton, PLGui::Window, PLGui::AbstractMenu, PLGui::Splitter, PLGui::ScrollBar, and PLGui::Slider.

virtual PLGUI_API void PLGui::WidgetFunctions::OnMouseHover ( ) [protected, virtual]

Called when the mouse hovers over the widget.

Reimplemented in PLGui::ModTooltip.

virtual PLGUI_API void PLGui::WidgetFunctions::OnMousePosUpdate ( const PLMath::Vector2i & vPos ) [protected, virtual]

Called when the mouse position inside the widget has changed.

Parameters:

[in] vPos Mouse position within the widget

Remarks:: This function is called, when the mouse position inside the widget has changed without the user moving the mouse. This is the case e.g. when the widget has been moved while the mouse was inside. Usually, you should only need OnMouseMove() to react on mouse movements, but when implementing widget movement, you must also react on OnMousePosUpdate() to update the new mouse position without doing any action. This is especially important in order to let several Widget-Modifiers work together without interfering each other.

Reimplemented in PLGui::Window.

virtual PLGUI_API void PLGui::WidgetFunctions::OnMouseButtonDown	(	PLCore::uint32	nButton,
		const PLMath::Vector2i &	vPos
	)		`[protected, virtual]`

Called when a mouse button is pressed.

Parameters:

[in]	nButton	Mouse button that is pressed
[in]	vPos	Mouse position within the widget

Reimplemented in PLGui::AbstractButton, PLGui::Window, PLGui::AbstractMenu, PLGui::Splitter, PLGui::ScrollBar, and PLGui::Slider.

virtual PLGUI_API void PLGui::WidgetFunctions::OnMouseButtonUp	(	PLCore::uint32	nButton,
		const PLMath::Vector2i &	vPos
	)		`[protected, virtual]`

Called when a mouse button is released.

Parameters:

[in]	nButton	Mouse button that is released
[in]	vPos	Mouse position within the widget

Reimplemented in PLGui::AbstractButton, PLGui::Window, PLGui::AbstractMenu, PLGui::Splitter, PLGui::ScrollBar, and PLGui::Slider.

virtual PLGUI_API void PLGui::WidgetFunctions::OnMouseButtonClick	(	PLCore::uint32	nButton,
		const PLMath::Vector2i &	vPos
	)		`[protected, virtual]`

Called when a mouse button is clicked.

Parameters:

[in]	nButton	Mouse button that is clicked
[in]	vPos	Mouse position within the widget

Reimplemented in PLGui::TabBarEntry.

virtual PLGUI_API void PLGui::WidgetFunctions::OnMouseButtonDoubleClick	(	PLCore::uint32	nButton,
		const PLMath::Vector2i &	vPos
	)		`[protected, virtual]`

Called when a mouse button is double-clicked.

Parameters:

[in]	nButton	Mouse button that is double-clicked
[in]	vPos	Mouse position within the widget

Reimplemented in PLGui::Window.

virtual PLGUI_API void PLGui::WidgetFunctions::OnMouseWheel ( int nDelta ) [protected, virtual]

Called when the mouse wheel is used.

Parameters:

[in] nDelta Mouse wheel movement

virtual PLGUI_API void PLGui::WidgetFunctions::OnKeyDown	(	PLCore::uint32	nKey,
		PLCore::uint32	nModifiers
	)		`[protected, virtual]`

Called when a key was pressed.

Parameters:

[in]	nKey	Pressed key
[in]	nModifiers	Modifier keys pressed

Note:

Because of a possible autorepeat the key may be 'pressed' multiple times before the 'OnKeyUp'-function is called

Reimplemented in PLGui::AbstractButton, PLGui::AbstractMenu, and PLGui::ModFullscreen.

virtual PLGUI_API void PLGui::WidgetFunctions::OnKeyUp	(	PLCore::uint32	nKey,
		PLCore::uint32	nModifiers
	)		`[protected, virtual]`

Called when a key was released.

Parameters:

[in]	nKey	Released key
[in]	nModifiers	Modifier keys pressed

Reimplemented in PLGui::AbstractButton.

virtual PLGUI_API void PLGui::WidgetFunctions::OnHotkey ( PLCore::uint32 nHotkey ) [protected, virtual]

Called when a hotkey was pressed.

Parameters:

[in] nHotkey Hotkey ID

virtual PLGUI_API void PLGui::WidgetFunctions::OnDrop ( const DataObject & cData ) [protected, virtual]

Called when data has been dropped onto the widget.

Parameters:

[in] cData Data

virtual PLGUI_API void PLGui::WidgetFunctions::OnUserMessage	(	PLCore::uint32	nData,
		void *	pDataPtr
	)		`[protected, virtual]`

Called when a user defined message has been sent.

Parameters:

[in]	nData	Message data
[in]	pDataPtr	Data pointer

The documentation for this class was generated from the following file:

WidgetFunctions.h

Public Member Functions

Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
