PLGui::Slider Class Reference

Slider widget. More...

#include <Slider.h>

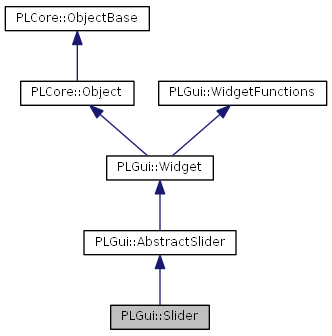

Inheritance diagram for PLGui::Slider:

List of all members.

Classes
struct	SSliderHandle
	Slider handle. More...
Public Member Functions
virtual PLGUI_API void	OnDraw (Graphics &cGraphics) override
	Called to draw the widget.
virtual PLGUI_API PLMath::Vector2i	OnPreferredSize (const PLMath::Vector2i &vRefSize) const override
	Called when the widget is to calculate it's preferred size.
virtual PLGUI_API void	OnDisable () override
	Called when the widget gets disabled.
virtual PLGUI_API void	OnMouseLeave () override
	Called when the mouse has left the widget.
virtual PLGUI_API void	OnMouseMove (const PLMath::Vector2i &vPos) override
	Called when the mouse is moved within the widget or captured by it.
virtual PLGUI_API void	OnMouseButtonDown (PLCore::uint32 nButton, const PLMath::Vector2i &vPos) override
	Called when a mouse button is pressed.
virtual PLGUI_API void	OnMouseButtonUp (PLCore::uint32 nButton, const PLMath::Vector2i &vPos) override
	Called when a mouse button is released.
Protected Member Functions
virtual PLGUI_API void	OnChangeValue (int nValue) override
	Called when a new value has been set.
void	CalculateHandlePos ()
	Calculate position of slider handle.
PLCore::uint32	GetHandleState ()
	Get widget state for the handle.
void	CheckButtons (const PLMath::Vector2i &vPos)
	Check if a button has been pressed.
Protected Attributes
EOrientation	m_nOrientation
SSliderHandle	m_sHandle
PLMath::Vector2i	m_vMousePos

---

Detailed Description

Slider widget.

---

Member Function Documentation

virtual PLGUI_API void PLGui::Slider::OnChangeValue

(

int

nValue

)

[override, protected, virtual]

Called when a new value has been set.

Parameters:

[in]

nValue

Value

Reimplemented from PLGui::AbstractSlider.

virtual PLGUI_API void PLGui::Slider::OnDraw

(

Graphics &

cGraphics

)

[override, virtual]

Called to draw the widget.

Parameters:

[in]

cGraphics

Graphics object used for painting

Reimplemented from PLGui::WidgetFunctions.

virtual PLGUI_API PLMath::Vector2i PLGui::Slider::OnPreferredSize

(

const PLMath::Vector2i &

vRefSize

)

const [override, virtual]

Called when the widget is to calculate it's preferred size.

Parameters:

[in]

vRefSize

Precalculated reference size, can be (-1, -1) if no reference size is available

Returns:

Preferred size

Remarks:

If the widget returns -1 in a component (X/Y), it means that there is no preferred size in that direction. A layout will in that case use 'as much space as possible', while the FitSize() functions will use the current size.

Reimplemented from PLGui::Widget.

virtual PLGUI_API void PLGui::Slider::OnDisable

(

)

[override, virtual]

Called when the widget gets disabled.

Reimplemented from PLGui::WidgetFunctions.

virtual PLGUI_API void PLGui::Slider::OnMouseLeave

(

)

[override, virtual]

Called when the mouse has left the widget.

Reimplemented from PLGui::WidgetFunctions.

virtual PLGUI_API void PLGui::Slider::OnMouseMove

(

const PLMath::Vector2i &

vPos

)

[override, virtual]

Called when the mouse is moved within the widget or captured by it.

Parameters:

[in]

vPos

Mouse position within the widget

Reimplemented from PLGui::WidgetFunctions.

virtual PLGUI_API void PLGui::Slider::OnMouseButtonDown	(	PLCore::uint32	nButton,
		const PLMath::Vector2i &	vPos
	)		[override, virtual]

Called when a mouse button is pressed.

Parameters:

[in]	nButton	Mouse button that is pressed
[in]	vPos	Mouse position within the widget

Reimplemented from PLGui::WidgetFunctions.

virtual PLGUI_API void PLGui::Slider::OnMouseButtonUp	(	PLCore::uint32	nButton,
		const PLMath::Vector2i &	vPos
	)		[override, virtual]

Called when a mouse button is released.

Parameters:

[in]	nButton	Mouse button that is released
[in]	vPos	Mouse position within the widget

Reimplemented from PLGui::WidgetFunctions.

void PLGui::Slider::CalculateHandlePos

(

)

[protected]

Calculate position of slider handle.

PLCore::uint32 PLGui::Slider::GetHandleState

(

)

[protected]

Get widget state for the handle.

Returns:

Widget state of handle (combination of EWidgetState values)

void PLGui::Slider::CheckButtons

(

const PLMath::Vector2i &

vPos

)

[protected]

Check if a button has been pressed.

Parameters:

[in]

vPos

Mouse position

---

Member Data Documentation

EOrientation PLGui::Slider::m_nOrientation [protected]

Scrollbar orientation

SSliderHandle PLGui::Slider::m_sHandle [protected]

Handle

PLMath::Vector2i PLGui::Slider::m_vMousePos [protected]

Last mouse position

---

The documentation for this class was generated from the following file:

• Slider.h
