PLGui::Theme Class Reference

Theme. More...

#include <Theme.h>

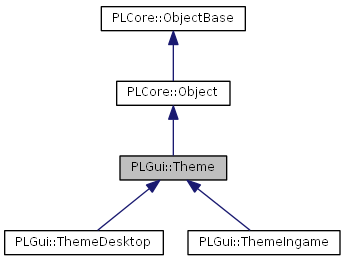

Inheritance diagram for PLGui::Theme:

List of all members.

Public Member Functions
PLGUI_API	Theme (Gui &cGui, const PLCore::String &sName="")
	Constructor.
virtual PLGUI_API	~Theme ()
	Destructor.
PLGUI_API Gui *	GetGui () const
	Get owner GUI.
PLGUI_API PLCore::String	GetName () const
	Get name of theme.
PLGUI_API const PLGui::Font &	GetDefaultFont () const
	Get default font.
PLGUI_API const PLGui::Image &	GetDefaultIcon () const
	Get default icon.
PLGUI_API int	GetWindowBorderSize () const
	Get window border size.
PLGUI_API int	GetWindowTitleBarHeight () const
	Get window title bar height.
PLGUI_API int	GetMenuBarHeight () const
	Get menu bar height.
PLGUI_API PLGraphics::Color4	GetWindowColor () const
	Get default window color.
PLGUI_API int	GetPanelBorderSize () const
	Get panel border size.
PLGUI_API PLGraphics::Color4	GetPanelColor () const
	Get default panel color.
PLGUI_API PLMath::Vector2i	GetSysButtonSize () const
	Get system button size.
virtual void	DrawRect (Graphics &cGraphics, const PLMath::Vector2i &vPos1, const PLMath::Vector2i &vPos2, ELineStyle nStyle, const PLGraphics::Color4 &cColor, int nWidth, int nRound=0)=0
virtual void	DrawBorder (Graphics &cGraphics, const PLMath::Vector2i &vPos1, const PLMath::Vector2i &vPos2, EBorderStyle nBorderStyle)=0
virtual void	DrawFocusRect (Graphics &cGraphics, const PLMath::Vector2i &vPos1, const PLMath::Vector2i &vPos2)=0
virtual void	DrawSeparator (Graphics &cGraphics, const PLMath::Vector2i &vPos1, const PLMath::Vector2i &vPos2, EOrientation nOrientation)=0
virtual void	DrawRule (Graphics &cGraphics, const PLMath::Vector2i &vPos1, const PLMath::Vector2i &vPos2, EOrientation nOrientation)=0
virtual void	DrawPanel (Graphics &cGraphics, const PLMath::Vector2i &vPos1, const PLMath::Vector2i &vPos2, EBorderStyle nBorderStyle)=0
virtual void	DrawWindow (Graphics &cGraphics, const PLMath::Vector2i &vPos1, const PLMath::Vector2i &vPos2, bool bBorder, PLCore::uint32 nWidgetState, const PLCore::String &sTitle, const PLGui::Image &cIcon)=0
virtual void	DrawSystemButton (Graphics &cGraphics, const PLMath::Vector2i &vPos, ESystemCommand nSystemCommand, PLCore::uint32 nWidgetState)=0
virtual void	DrawButton (Graphics &cGraphics, const PLMath::Vector2i &vPos1, const PLMath::Vector2i &vPos2, const PLCore::String &sTitle, const Image &cImage, PLCore::uint32 nWidgetState)=0
virtual void	DrawToggleButton (Graphics &cGraphics, const PLMath::Vector2i &vPos1, const PLMath::Vector2i &vPos2, const PLCore::String &sTitle, const Image &cImage, PLCore::uint32 nWidgetState, ECheckState nChecked)=0
virtual void	DrawRadioButton (Graphics &cGraphics, const PLMath::Vector2i &vPos1, const PLMath::Vector2i &vPos2, const PLCore::String &sTitle, PLCore::uint32 nWidgetState, ECheckState nChecked)=0
virtual void	DrawCheckBox (Graphics &cGraphics, const PLMath::Vector2i &vPos1, const PLMath::Vector2i &vPos2, const PLCore::String &sTitle, PLCore::uint32 nWidgetState, ECheckState nChecked)=0
virtual void	DrawTooltip (Graphics &cGraphics, const PLMath::Vector2i &vPos1, const PLMath::Vector2i &vPos2, PLCore::uint32 nWidgetState)=0
virtual void	DrawSlider (Graphics &cGraphics, const PLMath::Vector2i &vPos1, const PLMath::Vector2i &vPos2, EOrientation nOrientation, PLCore::uint32 nWidgetState)=0
virtual void	DrawSliderHandle (Graphics &cGraphics, const PLMath::Vector2i &vPos1, const PLMath::Vector2i &vPos2, EOrientation nOrientation, PLCore::uint32 nWidgetState)=0
virtual void	DrawScrollBar (Graphics &cGraphics, const PLMath::Vector2i &vPos1, const PLMath::Vector2i &vPos2, EOrientation nOrientation, PLCore::uint32 nWidgetState)=0
virtual void	DrawScrollBarPlusButton (Graphics &cGraphics, const PLMath::Vector2i &vPos1, const PLMath::Vector2i &vPos2, EOrientation nOrientation, PLCore::uint32 nWidgetState)=0
virtual void	DrawScrollBarMinusButton (Graphics &cGraphics, const PLMath::Vector2i &vPos1, const PLMath::Vector2i &vPos2, EOrientation nOrientation, PLCore::uint32 nWidgetState)=0
virtual void	DrawScrollBarHandle (Graphics &cGraphics, const PLMath::Vector2i &vPos1, const PLMath::Vector2i &vPos2, EOrientation nOrientation, PLCore::uint32 nWidgetState)=0
virtual void	DrawSplitter (Graphics &cGraphics, const PLMath::Vector2i &vPos1, const PLMath::Vector2i &vPos2, EOrientation nOrientation)=0
virtual void	DrawMenuBar (Graphics &cGraphics, const PLMath::Vector2i &vPos1, const PLMath::Vector2i &vPos2, EOrientation nOrientation, PLCore::uint32 nWidgetState)=0
virtual void	DrawPopupMenu (Graphics &cGraphics, const PLMath::Vector2i &vPos1, const PLMath::Vector2i &vPos2, EOrientation nOrientation, PLCore::uint32 nWidgetState)=0
virtual void	DrawMenuItem (Graphics &cGraphics, const PLMath::Vector2i &vPos1, const PLMath::Vector2i &vPos2, const PLCore::String &sTitle, const Image &cImage, bool bDrawArrow, EMenuItemType nType, EOrientation nOrientation, PLCore::uint32 nWidgetState)=0
Protected Attributes
Gui *	m_pGui
PLCore::String	m_sName
PLGui::Font	m_cDefaultFont
PLGui::Image	m_cDefaultIcon
int	m_nWindowBorderSize
int	m_nWindowTitleBarHeight
int	m_nMenuBarHeight
PLGraphics::Color4	m_cWindowColor
int	m_nPanelBorderSize
PLGraphics::Color4	m_cPanelColor
PLMath::Vector2i	m_vSysButtonSize

---

Detailed Description

Theme.

---

Constructor & Destructor Documentation

PLGUI_API PLGui::Theme::Theme	(	Gui &	cGui,
		const PLCore::String &	sName = ""
	)

Constructor.

Parameters:

[in]	cGui	Owner GUI
[in]	sName	Name of modifier

virtual PLGUI_API PLGui::Theme::~Theme

(

)

[virtual]

Destructor.

---

Member Function Documentation

PLGUI_API Gui* PLGui::Theme::GetGui

(

)

const

Get owner GUI.

Returns:

Pointer to GUI object (never a null pointer)

PLGUI_API PLCore::String PLGui::Theme::GetName

(

)

const

Get name of theme.

Returns:

Name of theme

PLGUI_API const PLGui::Font& PLGui::Theme::GetDefaultFont

(

)

const

Get default font.

Returns:

Default font

PLGUI_API const PLGui::Image& PLGui::Theme::GetDefaultIcon

(

)

const

Get default icon.

Returns:

Default icon

PLGUI_API int PLGui::Theme::GetWindowBorderSize

(

)

const

Get window border size.

Returns:

Border size

PLGUI_API int PLGui::Theme::GetWindowTitleBarHeight

(

)

const

Get window title bar height.

Returns:

Title bar height

PLGUI_API int PLGui::Theme::GetMenuBarHeight

(

)

const

Get menu bar height.

Returns:

Menu bar height

PLGUI_API PLGraphics::Color4 PLGui::Theme::GetWindowColor

(

)

const

Get default window color.

Returns:

Window color

PLGUI_API int PLGui::Theme::GetPanelBorderSize

(

)

const

Get panel border size.

Returns:

Border size

PLGUI_API PLGraphics::Color4 PLGui::Theme::GetPanelColor

(

)

const

Get default panel color.

Returns:

Panel color

PLGUI_API PLMath::Vector2i PLGui::Theme::GetSysButtonSize

(

)

const

Get system button size.

Returns:

Size of system button (X and Y)

virtual void PLGui::Theme::DrawRect	(	Graphics &	cGraphics,
		const PLMath::Vector2i &	vPos1,
		const PLMath::Vector2i &	vPos2,
		ELineStyle	nStyle,
		const PLGraphics::Color4 &	cColor,
		int	nWidth,
		int	nRound = 0
	)		[pure virtual]

Implemented in PLGui::ThemeDesktop.

virtual void PLGui::Theme::DrawBorder	(	Graphics &	cGraphics,
		const PLMath::Vector2i &	vPos1,
		const PLMath::Vector2i &	vPos2,
		EBorderStyle	nBorderStyle
	)		[pure virtual]

Implemented in PLGui::ThemeDesktop.

virtual void PLGui::Theme::DrawFocusRect	(	Graphics &	cGraphics,
		const PLMath::Vector2i &	vPos1,
		const PLMath::Vector2i &	vPos2
	)		[pure virtual]

Implemented in PLGui::ThemeDesktop.

virtual void PLGui::Theme::DrawSeparator	(	Graphics &	cGraphics,
		const PLMath::Vector2i &	vPos1,
		const PLMath::Vector2i &	vPos2,
		EOrientation	nOrientation
	)		[pure virtual]

Implemented in PLGui::ThemeDesktop.

virtual void PLGui::Theme::DrawRule	(	Graphics &	cGraphics,
		const PLMath::Vector2i &	vPos1,
		const PLMath::Vector2i &	vPos2,
		EOrientation	nOrientation
	)		[pure virtual]

Implemented in PLGui::ThemeDesktop.

virtual void PLGui::Theme::DrawPanel	(	Graphics &	cGraphics,
		const PLMath::Vector2i &	vPos1,
		const PLMath::Vector2i &	vPos2,
		EBorderStyle	nBorderStyle
	)		[pure virtual]

Implemented in PLGui::ThemeDesktop.

virtual void PLGui::Theme::DrawWindow	(	Graphics &	cGraphics,
		const PLMath::Vector2i &	vPos1,
		const PLMath::Vector2i &	vPos2,
		bool	bBorder,
		PLCore::uint32	nWidgetState,
		const PLCore::String &	sTitle,
		const PLGui::Image &	cIcon
	)		[pure virtual]

Implemented in PLGui::ThemeDesktop.

virtual void PLGui::Theme::DrawSystemButton	(	Graphics &	cGraphics,
		const PLMath::Vector2i &	vPos,
		ESystemCommand	nSystemCommand,
		PLCore::uint32	nWidgetState
	)		[pure virtual]

Implemented in PLGui::ThemeDesktop.

virtual void PLGui::Theme::DrawButton	(	Graphics &	cGraphics,
		const PLMath::Vector2i &	vPos1,
		const PLMath::Vector2i &	vPos2,
		const PLCore::String &	sTitle,
		const Image &	cImage,
		PLCore::uint32	nWidgetState
	)		[pure virtual]

Implemented in PLGui::ThemeDesktop.

virtual void PLGui::Theme::DrawToggleButton	(	Graphics &	cGraphics,
		const PLMath::Vector2i &	vPos1,
		const PLMath::Vector2i &	vPos2,
		const PLCore::String &	sTitle,
		const Image &	cImage,
		PLCore::uint32	nWidgetState,
		ECheckState	nChecked
	)		[pure virtual]

Implemented in PLGui::ThemeDesktop.

virtual void PLGui::Theme::DrawRadioButton	(	Graphics &	cGraphics,
		const PLMath::Vector2i &	vPos1,
		const PLMath::Vector2i &	vPos2,
		const PLCore::String &	sTitle,
		PLCore::uint32	nWidgetState,
		ECheckState	nChecked
	)		[pure virtual]

Implemented in PLGui::ThemeDesktop.

virtual void PLGui::Theme::DrawCheckBox	(	Graphics &	cGraphics,
		const PLMath::Vector2i &	vPos1,
		const PLMath::Vector2i &	vPos2,
		const PLCore::String &	sTitle,
		PLCore::uint32	nWidgetState,
		ECheckState	nChecked
	)		[pure virtual]

Implemented in PLGui::ThemeDesktop.

virtual void PLGui::Theme::DrawTooltip	(	Graphics &	cGraphics,
		const PLMath::Vector2i &	vPos1,
		const PLMath::Vector2i &	vPos2,
		PLCore::uint32	nWidgetState
	)		[pure virtual]

Implemented in PLGui::ThemeDesktop.

virtual void PLGui::Theme::DrawSlider	(	Graphics &	cGraphics,
		const PLMath::Vector2i &	vPos1,
		const PLMath::Vector2i &	vPos2,
		EOrientation	nOrientation,
		PLCore::uint32	nWidgetState
	)		[pure virtual]

Implemented in PLGui::ThemeDesktop.

virtual void PLGui::Theme::DrawSliderHandle	(	Graphics &	cGraphics,
		const PLMath::Vector2i &	vPos1,
		const PLMath::Vector2i &	vPos2,
		EOrientation	nOrientation,
		PLCore::uint32	nWidgetState
	)		[pure virtual]

Implemented in PLGui::ThemeDesktop.

virtual void PLGui::Theme::DrawScrollBar	(	Graphics &	cGraphics,
		const PLMath::Vector2i &	vPos1,
		const PLMath::Vector2i &	vPos2,
		EOrientation	nOrientation,
		PLCore::uint32	nWidgetState
	)		[pure virtual]

Implemented in PLGui::ThemeDesktop.

virtual void PLGui::Theme::DrawScrollBarPlusButton	(	Graphics &	cGraphics,
		const PLMath::Vector2i &	vPos1,
		const PLMath::Vector2i &	vPos2,
		EOrientation	nOrientation,
		PLCore::uint32	nWidgetState
	)		[pure virtual]

Implemented in PLGui::ThemeDesktop.

virtual void PLGui::Theme::DrawScrollBarMinusButton	(	Graphics &	cGraphics,
		const PLMath::Vector2i &	vPos1,
		const PLMath::Vector2i &	vPos2,
		EOrientation	nOrientation,
		PLCore::uint32	nWidgetState
	)		[pure virtual]

Implemented in PLGui::ThemeDesktop.

virtual void PLGui::Theme::DrawScrollBarHandle	(	Graphics &	cGraphics,
		const PLMath::Vector2i &	vPos1,
		const PLMath::Vector2i &	vPos2,
		EOrientation	nOrientation,
		PLCore::uint32	nWidgetState
	)		[pure virtual]

Implemented in PLGui::ThemeDesktop.

virtual void PLGui::Theme::DrawSplitter	(	Graphics &	cGraphics,
		const PLMath::Vector2i &	vPos1,
		const PLMath::Vector2i &	vPos2,
		EOrientation	nOrientation
	)		[pure virtual]

Implemented in PLGui::ThemeDesktop.

virtual void PLGui::Theme::DrawMenuBar	(	Graphics &	cGraphics,
		const PLMath::Vector2i &	vPos1,
		const PLMath::Vector2i &	vPos2,
		EOrientation	nOrientation,
		PLCore::uint32	nWidgetState
	)		[pure virtual]

Implemented in PLGui::ThemeDesktop.

virtual void PLGui::Theme::DrawPopupMenu	(	Graphics &	cGraphics,
		const PLMath::Vector2i &	vPos1,
		const PLMath::Vector2i &	vPos2,
		EOrientation	nOrientation,
		PLCore::uint32	nWidgetState
	)		[pure virtual]

Implemented in PLGui::ThemeDesktop.

virtual void PLGui::Theme::DrawMenuItem	(	Graphics &	cGraphics,
		const PLMath::Vector2i &	vPos1,
		const PLMath::Vector2i &	vPos2,
		const PLCore::String &	sTitle,
		const Image &	cImage,
		bool	bDrawArrow,
		EMenuItemType	nType,
		EOrientation	nOrientation,
		PLCore::uint32	nWidgetState
	)		[pure virtual]

Implemented in PLGui::ThemeDesktop.

---

Member Data Documentation

Gui* PLGui::Theme::m_pGui [protected]

Owner GUI

PLCore::String PLGui::Theme::m_sName [protected]

Theme name

PLGui::Font PLGui::Theme::m_cDefaultFont [protected]

Default font

PLGui::Image PLGui::Theme::m_cDefaultIcon [protected]

Default icon

int PLGui::Theme::m_nWindowBorderSize [protected]

Border size of a window

int PLGui::Theme::m_nWindowTitleBarHeight [protected]

Title bar height of a window

int PLGui::Theme::m_nMenuBarHeight [protected]

Menu bar height

PLGraphics::Color4 PLGui::Theme::m_cWindowColor [protected]

Default window color

int PLGui::Theme::m_nPanelBorderSize [protected]

Border size of a panel

PLGraphics::Color4 PLGui::Theme::m_cPanelColor [protected]

Default panel color

PLMath::Vector2i PLGui::Theme::m_vSysButtonSize [protected]

System button size

---

The documentation for this class was generated from the following file:

• Theme.h
