Tab bar entry. More...

#include <TabBarEntry.h>

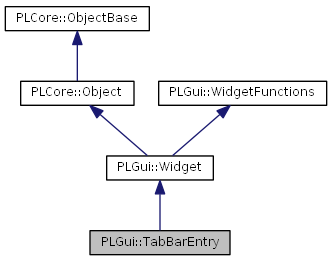

Inheritance diagram for PLGui::TabBarEntry:

[legend]

Public Member Functions
PLGUI_API	TabBarEntry (Widget *pParent=nullptr)
	Constructor.
virtual PLGUI_API	~TabBarEntry ()
	Destructor.
PLGUI_API TabBar *	GetTabBar () const
	Get TabBar.
PLGUI_API PLCore::String	GetText () const
	Get text.
PLGUI_API void	SetText (const PLCore::String &sText)
	Set text.
PLGUI_API const Image &	GetIcon () const
	Get icon.
PLGUI_API void	SetIcon (const Image &cIcon)
	Set icon.
PLGUI_API Widget *	GetWidget () const
	Get associated widget.
PLGUI_API void	SetWidget (Widget *pWidget)
	Set associated widget.
PLGUI_API void *	GetUserData () const
	Get associated data.
PLGUI_API void	SetUserData (void *pData)
	Set associated data.
PLGUI_API int	GetIndex () const
	Get tab index.
PLGUI_API bool	IsClosable () const
	Check if tab can be closed by the user.
Protected Member Functions
PLGUI_API void	SetTabBar (TabBar *pTabBar)
	Set TabBar.
PLGUI_API void	SetIndex (int nIndex)
	Set tab index.
PLGUI_API void	SetClosable (bool bClosable)
	Set if tab can be closed by the user.
virtual PLGUI_API PLMath::Vector2i	OnPreferredSize (const PLMath::Vector2i &vRefSize) const
	Called when the widget is to calculate it's preferred size.
virtual PLGUI_API void	OnAdjustContent ()
	Called when the widget content has to be adjusted.
virtual PLGUI_API void	OnMouseEnter ()
	Called when the mouse has entered the widget.
virtual PLGUI_API void	OnMouseLeave ()
	Called when the mouse has left the widget.
virtual PLGUI_API void	OnMouseButtonClick (PLCore::uint32 nButton, const PLMath::Vector2i &vPos)
	Called when a mouse button is clicked.
Protected Attributes
PLCore::String	m_sText
Image	m_cIcon
Widget *	m_pWidget
void *	m_pData
TabBar *	m_pTabBar
int	m_nIndex
bool	m_bClosable
TabBarButton *	m_pButtonClose

Detailed Description

Tab bar entry.

Constructor & Destructor Documentation

PLGUI_API PLGui::TabBarEntry::TabBarEntry ( Widget * pParent = nullptr )

Constructor.

Parameters:

[in] pParent Pointer to parent widget

virtual PLGUI_API PLGui::TabBarEntry::~TabBarEntry ( ) [virtual]

Destructor.

Member Function Documentation

PLGUI_API TabBar* PLGui::TabBarEntry::GetTabBar ( ) const

Get TabBar.

Returns:: TabBar

PLGUI_API PLCore::String PLGui::TabBarEntry::GetText ( ) const

Get text.

Returns:: Text

PLGUI_API void PLGui::TabBarEntry::SetText ( const PLCore::String & sText )

Set text.

Parameters:

[in] sText Text

PLGUI_API const Image& PLGui::TabBarEntry::GetIcon ( ) const

Get icon.

Returns:: Image

Reimplemented from PLGui::Widget.

PLGUI_API void PLGui::TabBarEntry::SetIcon ( const Image & cIcon )

Set icon.

Parameters:

[in] cIcon Image

Reimplemented from PLGui::Widget.

PLGUI_API Widget* PLGui::TabBarEntry::GetWidget ( ) const

Get associated widget.

Returns:: Widget (can be a null pointer)

Remarks:: see SetWidget()

PLGUI_API void PLGui::TabBarEntry::SetWidget ( Widget * pWidget )

Set associated widget.

Parameters:

[in] pWidget Widget (can be a null pointer)

Remarks:: You can use this function to associate a widget with a tab entry. Note however that this is only a pure data slot and is not used by the TabBar at all, so the TabBar doesn't automatically show or hide widgets based on the currently selected tab. If you want functionality like that, you can use TabContainer which has implemented that already and provides a window container with an associated TabBar to select windows.

PLGUI_API void* PLGui::TabBarEntry::GetUserData ( ) const

Get associated data.

Returns:: Data pointer

Remarks:: see SetData()

Reimplemented from PLGui::Widget.

PLGUI_API void PLGui::TabBarEntry::SetUserData ( void * pData )

Set associated data.

Parameters:

[in] pData Data pointer

Remarks:: You can use this function to associate arbitrary data with a tab entry. This is a pure user data that is not used by the TabBar itself.

Reimplemented from PLGui::Widget.

PLGUI_API int PLGui::TabBarEntry::GetIndex ( ) const

Get tab index.

Returns:: Index of tab

PLGUI_API bool PLGui::TabBarEntry::IsClosable ( ) const

Check if tab can be closed by the user.

Returns:: 'true' if tab is closable, else 'false'

PLGUI_API void PLGui::TabBarEntry::SetTabBar ( TabBar * pTabBar ) [protected]

Set TabBar.

Parameters:

[in] pTabBar TabBar

PLGUI_API void PLGui::TabBarEntry::SetIndex ( int nIndex ) [protected]

Set tab index.

Parameters:

[in] nIndex Index of tab

PLGUI_API void PLGui::TabBarEntry::SetClosable ( bool bClosable ) [protected]

Set if tab can be closed by the user.

Parameters:

[in] bClosable 'true' if tab is closable, else 'false'

virtual PLGUI_API PLMath::Vector2i PLGui::TabBarEntry::OnPreferredSize ( const PLMath::Vector2i & vRefSize ) const [protected, virtual]

Called when the widget is to calculate it's preferred size.

Parameters:

[in] vRefSize Precalculated reference size, can be (-1, -1) if no reference size is available

Returns:: Preferred size

Remarks:: If the widget returns -1 in a component (X/Y), it means that there is no preferred size in that direction. A layout will in that case use 'as much space as possible', while the FitSize() functions will use the current size.

Reimplemented from PLGui::Widget.

virtual PLGUI_API void PLGui::TabBarEntry::OnAdjustContent ( ) [protected, virtual]

Called when the widget content has to be adjusted.

Reimplemented from PLGui::Widget.

virtual PLGUI_API void PLGui::TabBarEntry::OnMouseEnter ( ) [protected, virtual]

Called when the mouse has entered the widget.

Reimplemented from PLGui::WidgetFunctions.

virtual PLGUI_API void PLGui::TabBarEntry::OnMouseLeave ( ) [protected, virtual]

Called when the mouse has left the widget.

Reimplemented from PLGui::WidgetFunctions.
