PLScene::SceneRenderer Class Reference

Scene renderer class. More...

#include <SceneRenderer.h>

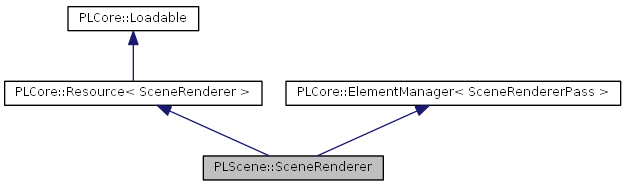

Inheritance diagram for PLScene::SceneRenderer:

List of all members.

Public Member Functions
PLS_API SceneRendererManager &	GetSceneRendererManager () const
	Returns the scene renderer manager this scene renderer is in.
PLS_API SceneRendererPass *	Create (const PLCore::String &sClass, const PLCore::String &sName="", const PLCore::String &sParameters="")
	Creates a new scene renderer pass.
virtual PLS_API bool	Unload () override
	Unloads the loadable.
virtual PLS_API PLCore::String	GetLoadableTypeName () const override
	Returns the loadable type name.
Public Attributes
PLCore::Event	EventDestroyed
Protected Member Functions
PLS_API	SceneRenderer (SceneRendererManager &cManager, const PLCore::String &sName)
	Constructor.
virtual PLS_API	~SceneRenderer ()
	Destructor.

---

Detailed Description

Scene renderer class.

Remarks:

A scene renderer 'just' renders the scene visibility tree provided by the scene cull query. (SQCull) Quite primitive scene renderers can be implemented completely within one scene renderer class. If a lot of special effects and so one are required, we strongly recommend to split up the rendering into multiple self-containing rendering passes. Have a look into the 'SceneRendererPass' class documentation for more information about this topic.

Note:

• Derived classes should use a 'SR'-prefix (example: SRBegin)
• Prefer creating new scene renderer passes instead of scene renderer

---

Constructor & Destructor Documentation

PLS_API PLScene::SceneRenderer::SceneRenderer	(	SceneRendererManager &	cManager,
		const PLCore::String &	sName
	)		[protected]

Constructor.

Parameters:

[in]	cManager	Scene renderer manager using this resource
[in]	sName	Resource name to set

virtual PLS_API PLScene::SceneRenderer::~SceneRenderer

(

)

[protected, virtual]

Destructor.

---

Member Function Documentation

PLS_API SceneRendererManager& PLScene::SceneRenderer::GetSceneRendererManager

(

)

const

Returns the scene renderer manager this scene renderer is in.

Returns:

The scene renderer manager this shader is in

PLS_API SceneRendererPass* PLScene::SceneRenderer::Create	(	const PLCore::String &	sClass,
		const PLCore::String &	sName = "",
		const PLCore::String &	sParameters = ""
	)

Creates a new scene renderer pass.

Parameters:

[in]	sClass	Name of the scene renderer pass class to create an instance from
[in]	sName	Scene renderer pass name
[in]	sParameters	Optional parameter string

Returns:

Pointer to the new scene renderer pass or a null pointer if something went wrong (maybe unknown class or the class is not derived from SceneRendererPass)

Note:

• If the desired name is already in use, the name is chosen automatically

virtual PLS_API bool PLScene::SceneRenderer::Unload

(

)

[override, virtual]

Unloads the loadable.

Returns:

'true' if all went fine, else 'false'

Reimplemented from PLCore::Loadable.

virtual PLS_API PLCore::String PLScene::SceneRenderer::GetLoadableTypeName

(

)

const [override, virtual]

Returns the loadable type name.

Returns:

The loadable type name

Reimplemented from PLCore::Loadable.

---

Member Data Documentation

PLCore::Event PLScene::SceneRenderer::EventDestroyed

Scene renderer destroyed event. When this event is emitted the scene renderer is already in the destruction phase and parts may already be invalid. Best to e.g. only update our scene renderer pointer.

---

The documentation for this class was generated from the following file:

• SceneRenderer.h
