PLScene::SQCull Class Reference

Visibility determination scene query class. More...

#include <SQCull.h>

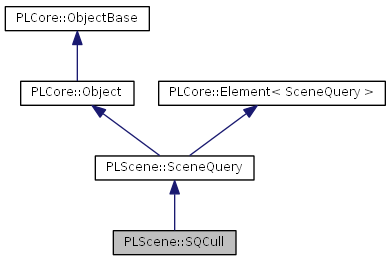

Inheritance diagram for PLScene::SQCull:

List of all members.

Classes
struct	Statistics
	Several statistics of the culling process. More...
Public Types
enum	EMode { Frustum = 0, StopAndWait = 1, Coherent = 2, Previous = 3 }
	Cull mode. More...
Public Member Functions
	pl_class (PLS_RTTI_EXPORT, SQCull,"PLScene", PLScene::SceneQuery,"Visibility determination scene query class") pl_constructor_0(DefaultConstructor
PLS_API	SQCull ()
	Default constructor.
virtual PLS_API	~SQCull ()
	Destructor.
PLS_API EMode	GetMode () const
	Returns the used cull mode.
PLS_API void	SetMode (EMode nMode=Coherent)
	Sets the used cull mode.
PLS_API PLCore::uint32	GetVisibilityThreshold () const
	Returns visibility threshold.
PLS_API void	SetVisibilityThreshold (PLCore::uint32 nThreshold=1)
	Sets visible pixels threshold for visibility classification.
PLS_API const Statistics &	GetStatistics () const
	Returns the statistics.
PLS_API SceneContainer *	GetCameraContainer () const
	Returns the container the camera is in.
PLS_API bool	SetCameraContainer (SceneContainer *pCameraContainer)
	Sets the container the camera is in.
PLS_API const PLMath::Vector3 &	GetCameraPosition () const
	Returns the used camera position.
PLS_API void	SetCameraPosition (const PLMath::Vector3 &vPos)
	Sets the used camera position.
PLS_API const PLMath::PlaneSet &	GetViewFrustum () const
	Returns the used view frustum.
PLS_API void	SetViewFrustum (const PLMath::PlaneSet &cFrustum)
	Sets the used view frustum.
PLS_API const PLMath::Matrix4x4 &	GetProjectionMatrix () const
PLS_API void	SetProjectionMatrix (const PLMath::Matrix4x4 &mProjection)
PLS_API const PLMath::Matrix4x4 &	GetViewMatrix () const
PLS_API void	SetViewMatrix (const PLMath::Matrix4x4 &mView)
PLS_API const PLMath::Matrix4x4 &	GetViewProjectionMatrix () const
PLS_API void	SetViewProjectionMatrix (const PLMath::Matrix4x4 &mViewProjection)
PLS_API const VisContainer *	GetVisRootContainer () const
	Returns the visibility root container.
PLS_API const VisContainer &	GetVisContainer () const
	Returns the visibility container this scene query belongs to.
virtual PLS_API bool	PerformQuery () override
	Performs the query.
Public Attributes
Default	constructor

---

Detailed Description

Visibility determination scene query class.

Remarks:

This scene query is used to request the current visible scene nodes. (Hidden Surface Removal (HSR)) You can choose between different culling algorithms whereby the advanced techniques not only ignore scene nodes outside the view frustum but also scene nodes which are hidden through other scene nodes. Additionally, some statistics are calculated. In optimal situations, cells&portals, frustum culling and occlusion culling are used all together to get the desired results. The result of the whole process is called PVS. (Potential Visibility Set)

Note:

• The 'PerformQuery()'-call must be done within the correct render target and with a valid set viewport and scissor rectangle

---

Member Enumeration Documentation

enum PLScene::SQCull::EMode

Cull mode.

Enumerator:

Frustum	Culls the scene with view frustum culling only
StopAndWait	Culls the scene with the hierarchical stop and wait algorithm
Coherent	Culls the scene with the coherent hierarchical algorithm (CHC)
Previous	Culls the scene using the visibility information of the previous frame

---

Constructor & Destructor Documentation

PLS_API PLScene::SQCull::SQCull

(

)

Default constructor.

virtual PLS_API PLScene::SQCull::~SQCull

(

)

[virtual]

Destructor.

---

Member Function Documentation

PLScene::SQCull::pl_class	(	PLS_RTTI_EXPORT	,
		SQCull	,
		"PLScene"	,
		PLScene::SceneQuery	,
		"Visibility determination scene query class"
	)

PLS_API EMode PLScene::SQCull::GetMode

(

)

const

Returns the used cull mode.

Returns:

Used cull mode

PLS_API void PLScene::SQCull::SetMode

(

EMode

nMode = Coherent

)

Sets the used cull mode.

Parameters:

[in]

nMode

Used cull mode

PLS_API PLCore::uint32 PLScene::SQCull::GetVisibilityThreshold

(

)

const

Returns visibility threshold.

Returns:

Visibility threshold

Remarks:

The visibility threshold is dependent of the render target dimension. If you set the visibility threshold to 100 and your render target dimension is 100x100 scene nodes may ugly disappear and at a render target dimension of 1000x1000 you can't see such disappearances.

Note:

• Used by the render modes StopAndWait and Coherent

PLS_API void PLScene::SQCull::SetVisibilityThreshold

(

PLCore::uint32

nThreshold = 1

)

Sets visible pixels threshold for visibility classification.

Parameters:

[in]

nThreshold

Threshold

See also:

• GetVisibilityThreshold()

PLS_API const Statistics& PLScene::SQCull::GetStatistics

(

)

const

Returns the statistics.

Returns:

Statistics

PLS_API SceneContainer* PLScene::SQCull::GetCameraContainer

(

)

const

Returns the container the camera is in.

Returns:

Container the camera is in, a null pointer on error

PLS_API bool PLScene::SQCull::SetCameraContainer

(

SceneContainer *

pCameraContainer

)

Sets the container the camera is in.

Parameters:

[in]

pCameraContainer

Container the camera is in, can be a null pointer

Returns:

'true' if all went fine, else 'false'

PLS_API const PLMath::Vector3& PLScene::SQCull::GetCameraPosition

(

)

const

Returns the used camera position.

Returns:

The used camera position (container space)

PLS_API void PLScene::SQCull::SetCameraPosition

(

const PLMath::Vector3 &

vPos

)

Sets the used camera position.

Parameters:

[in]

vPos

The used camera position (container space)

PLS_API const PLMath::PlaneSet& PLScene::SQCull::GetViewFrustum

(

)

const

Returns the used view frustum.

Returns:

The used view frustum (container space)

PLS_API void PLScene::SQCull::SetViewFrustum

(

const PLMath::PlaneSet &

cFrustum

)

Sets the used view frustum.

Parameters:

[in]

cFrustum

The used view frustum (container space)

PLS_API const PLMath::Matrix4x4& PLScene::SQCull::GetProjectionMatrix

(

)

const

PLS_API void PLScene::SQCull::SetProjectionMatrix

(

const PLMath::Matrix4x4 &

mProjection

)

PLS_API const PLMath::Matrix4x4& PLScene::SQCull::GetViewMatrix

(

)

const

PLS_API void PLScene::SQCull::SetViewMatrix

(

const PLMath::Matrix4x4 &

mView

)

PLS_API const PLMath::Matrix4x4& PLScene::SQCull::GetViewProjectionMatrix

(

)

const

PLS_API void PLScene::SQCull::SetViewProjectionMatrix

(

const PLMath::Matrix4x4 &

mViewProjection

)

PLS_API const VisContainer* PLScene::SQCull::GetVisRootContainer

(

)

const

Returns the visibility root container.

Returns:

The visibility root container, a null pointer on error

See also:

• GetVisContainer()

PLS_API const VisContainer& PLScene::SQCull::GetVisContainer

(

)

const

Returns the visibility container this scene query belongs to.

Returns:

The visibility container this scene query belongs to, same as GetRootContainer() if this is the visibility root container

Remarks:

After you performed the cull query (= visibility determination) you can use this function to get the resulting visibility scene tree. Using this tree, you can render the visible parts of the scene without any effort.

virtual PLS_API bool PLScene::SQCull::PerformQuery

(

)

[override, virtual]

Performs the query.

Note:

• Before you start the query you have to do some settings within the derived query classes first. (for instance setting the query volume)

Returns:

'true' if the query was cancelled by the user, else 'false'

Implements PLScene::SceneQuery.

---

Member Data Documentation

Default PLScene::SQCull::constructor

---

The documentation for this class was generated from the following file:

• SQCull.h
