Scene container node (group node) class which is using scene nodes. More...

#include <SceneContainer.h>

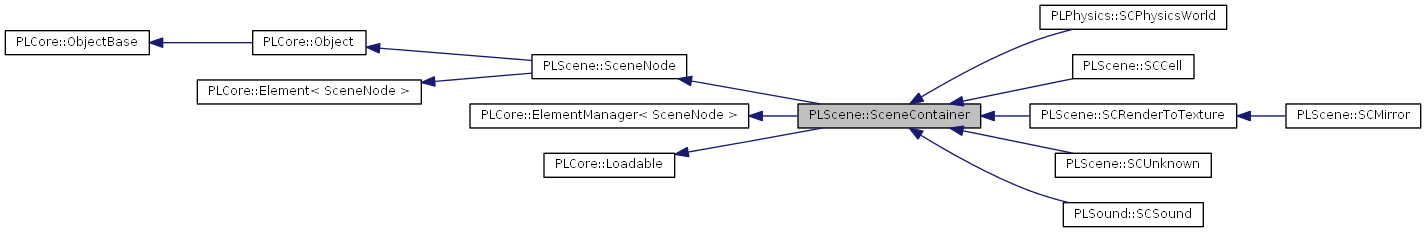

Inheritance diagram for PLScene::SceneContainer:

[legend]

Public Types
enum	EFlags { NoRecursion = 1<<10 }
	Scene node flags (SceneNode flags extension) More...
Public Member Functions
PLS_API void	SetFilename (const PLCore::String &sValue)
PLS_API	SceneContainer ()
	Default constructor.
virtual PLS_API	~SceneContainer ()
	Destructor.
SceneNode *	Create (const PLCore::String &sClass, const PLCore::String &sName="", const PLCore::String &sParameters="")
	Creates a new scene node.
PLS_API SceneNode *	CreateAtIndex (const PLCore::String &sClass, const PLCore::String &sName="", const PLCore::String &sParameters="", int nPosition=-1)
	Creates a new scene node at a certain index inside the scene node list.
PLS_API void	CalculateAABoundingBox ()
	Calculates and sets the axis align bounding box in 'scene node space'.
PLS_API bool	GetTransformMatrixTo (SceneContainer &cContainer, PLMath::Matrix3x4 &mTransform)
	Calculates a transform matrix to bring a transformation from 'this scene container' into 'another scene container'.
PLS_API SceneHierarchy *	CreateHierarchy (const PLCore::String &sClass="PLScene::SHList")
	Creates the scene hierarchy of this scene container.
PLS_API SceneHierarchy *	GetHierarchyInstance ()
	Returns the scene hierarchy of this scene container.
PLS_API SceneQuery *	CreateQuery (const PLCore::String &sClass)
	Creates a scene query.
PLS_API bool	DestroyQuery (SceneQuery &cQuery)
	Destroys a scene query.
virtual PLS_API bool	DeInit () override
	De-initializes the manager.
virtual PLS_API SceneNode *	GetByIndex (PLCore::uint32 nIndex=0) const override
virtual PLS_API SceneNode *	GetByName (const PLCore::String &sName) const override
	Returns the element with the given name.
virtual PLS_API bool	LoadByFilename (const PLCore::String &sFilename, const PLCore::String &sParams="", const PLCore::String &sMethod="") override
	Loads the loadable from a file given by filename.
virtual PLS_API bool	LoadByFile (PLCore::File &cFile, const PLCore::String &sParams="", const PLCore::String &sMethod="") override
	Loads the loadable from a file given by a reference.
virtual PLS_API bool	Unload () override
	Unloads the loadable.
virtual PLS_API PLCore::String	GetLoadableTypeName () const override
	Returns the loadable type name.
Protected Member Functions
virtual PLS_API void	InitFunction () override
	This function is called when the scene node gets initialized.
virtual PLS_API void	DeInitFunction () override
	This function is called when the scene node gets de-initialized.
virtual PLS_API void	OnActivate (bool bActivate) override
	Called when the scene node has been activated or deactivated.
virtual PLS_API bool	CallLoadable (PLCore::File &cFile, PLCore::Loader &cLoader, const PLCore::String &sMethod, const PLCore::String &sParams) override
	Calls the loadable in order to load or save.

Detailed Description

Scene container node (group node) class which is using scene nodes.

Remarks:: This is a root or inner node of the scene graph.

Note:

The 'scene node space' axis aligned bounding box should always cover all scene nodes of this container
Within GetByName(<Name>) you can also use 'absolute names' instead of 'relative' names. 'Root.MyScene.MyNode' for instance will return the scene node 'MyNode' within the scene container 'MyScene' which is a subnode of 'Root'. 'MyScene.MyNode' will return the node 'MyNode' of the container 'MyScene' which is an element of the current container. 'Parent.MyNode' will return the scene node 'MyNode' within the parent scene container. 'Parent' returns the parent scene container, 'This' returns THIS container, 'Root' will return the root scene container itself.
Use "GetSceneContext()->GetRoot()" to get the 'root' node in which you can insert your scenes
Derived classes should use a 'SC'-prefix (example: SCCell)
By default, all draw function flags are set

Member Enumeration Documentation

enum PLScene::SceneContainer::EFlags

Scene node flags (SceneNode flags extension)

Enumerator:

NoRecursion

Do NOT take the scene nodes of this container into account when for instance rendering the scene. 'SCRenderToTexture' for example sets this flag.

Reimplemented from PLScene::SceneNode.

Constructor & Destructor Documentation

PLS_API PLScene::SceneContainer::SceneContainer ( )

Default constructor.

virtual PLS_API PLScene::SceneContainer::~SceneContainer ( ) [virtual]

Destructor.

Member Function Documentation

PLS_API void PLScene::SceneContainer::SetFilename ( const PLCore::String & sValue )

SceneNode * PLScene::SceneContainer::Create	(	const PLCore::String &	sClass,
		const PLCore::String &	sName = `""`,
		const PLCore::String &	sParameters = `""`
	)		`[inline]`

Creates a new scene node.

Parameters:

[in]	sClass	Name of the scene node class to create an instance from
[in]	sName	Scene node name
[in]	sParameters	Optional parameter string

Returns:: Pointer to the new scene node or a null pointer if something went wrong (maybe unknown class or the class is not derived from SceneNode)

Note:

If the desired name is already in use, the name is chosen automatically

PLS_API SceneNode* PLScene::SceneContainer::CreateAtIndex	(	const PLCore::String &	sClass,
		const PLCore::String &	sName = `""`,
		const PLCore::String &	sParameters = `""`,
		int	nPosition = `-1`
	)

Creates a new scene node at a certain index inside the scene node list.

Parameters:

[in]	sClass	Name of the scene node class to create an instance from
[in]	sName	Scene node name
[in]	sParameters	Optional parameter string
[in]	nPosition	Optional index position specifying the location within the scene node list where the scene node should be added, <0 for at the end

Returns:: Pointer to the new scene node or a null pointer if something went wrong (maybe unknown class or the class is not derived from SceneNode)

Note:

If the desired name is already in use, the name is chosen automatically

PLS_API void PLScene::SceneContainer::CalculateAABoundingBox ( )

Calculates and sets the axis align bounding box in 'scene node space'.

Remarks:: Because the 'scene node space' axis aligned bounding box should always cover all scene nodes of this container, you can use this function to calculate and set this a bounding box automatically.

PLS_API bool PLScene::SceneContainer::GetTransformMatrixTo	(	SceneContainer &	cContainer,
		PLMath::Matrix3x4 &	mTransform
	)

Calculates a transform matrix to bring a transformation from 'this scene container' into 'another scene container'.

Parameters:

[in]	cContainer	'Target' scene container
[out]	mTransform	Receives the transform matrix, may contain an invalid matrix on error

Returns:: 'true' if all went fine, else 'false'

PLS_API SceneHierarchy* PLScene::SceneContainer::CreateHierarchy ( const PLCore::String & sClass = "PLScene::SHList" )

Creates the scene hierarchy of this scene container.

Parameters:

[in] sClass Class name of the scene hierarchy to create, if empty this function will do nothing

Returns:: Pointer to the created scene hierarchy of this scene container. This is NEVER a null pointer - if no special hierarchy is used the default hierarchy 'PLScene::SHList' is used instead which is in fact only a simple list which is using the container directly.

Note:

This hierarchy is destroyed by this scene container automatically
All current container scene nodes are added to the hierarchy automatically and the hierarchy is created

PLS_API SceneHierarchy* PLScene::SceneContainer::GetHierarchyInstance ( )

Returns the scene hierarchy of this scene container.

Returns:: Pointer to the scene hierarchy of this scene container, can NEVER be a null pointer!

Remarks:: Before the hierarchy is returned, scene nodes are refreshed if required. So, do NOT backup the returned pointer, call this function if you need a pointer to the hierarchy!

PLS_API SceneQuery* PLScene::SceneContainer::CreateQuery ( const PLCore::String & sClass )

Creates a scene query.

Parameters:

[in] sClass Class name of the scene query to create

Remarks:: Have a look at SceneQuery for scene query remarks. If your created query is no longer required you can destroy it using the DestroyQuery() functions. But note that if you need a query frequently it's not a good idea to create & destroy it every time you perform this query. For instance queries for rendering the scene will store different current rendering information, in this case it would be terrible to create & destroy the query every frame! Maybe the rendering algorithm doesn't work correctly if this is done because sometimes they will need information from the previous frame! Such queries should be created once and then be used all the time. Use SceneQueryHandler to hold your pointer to the query. If the container is destroyed your pointer is set to a null pointer automatically. If for instance the scene hierarchy was changed some queries like render queries have to update some internal data. The internal scene query manager of the scene container will inform it's queries in such a case. The created scene query can ONLY operate on this scene container and it's child scene nodes/ containers. Therefore you can limit your queries to for instance to a single room instead using the hold scene. Use the scene root (GetRootContainer()) to access the complete scene.

Returns:: Pointer to the created scene query operating on this scene container, a null pointer on error (maybe unknown class or the class is not derived from 'SceneQuery')

PLS_API bool PLScene::SceneContainer::DestroyQuery ( SceneQuery & cQuery )

Destroys a scene query.

Parameters:

[in] cQuery Scene query to destroy

Returns:: 'true' if all went fine, else 'false' (invalid query :)

virtual PLS_API void PLScene::SceneContainer::InitFunction ( ) [override, protected, virtual]

This function is called when the scene node gets initialized.

Reimplemented from PLScene::SceneNode.

Reimplemented in PLScene::SCRenderToTexture, and PLPhysics::SCPhysicsWorld.

virtual PLS_API void PLScene::SceneContainer::DeInitFunction ( ) [override, protected, virtual]

This function is called when the scene node gets de-initialized.

Reimplemented from PLScene::SceneNode.

Reimplemented in PLPhysics::SCPhysicsWorld.

virtual PLS_API void PLScene::SceneContainer::OnActivate ( bool bActivate ) [override, protected, virtual]

Called when the scene node has been activated or deactivated.

Parameters:

[in] bActivate 'true' if the scene node is now active, else 'false'

Note:

The scene node "Inactive"-flag as well as the "Frozen"-flag are taken into account
'bActivate' will be 'true' if the scene node AND the parent scene container (recursive!) are active
'bActivate' will be 'false' if the scene node OR the parent scene container (recursive!) is inactive
The default implementation calls the "OnActivate()" of all attached scene node modifiers

Reimplemented from PLScene::SceneNode.

Reimplemented in PLPhysics::SCPhysicsWorld.

virtual PLS_API bool PLScene::SceneContainer::DeInit ( ) [override, virtual]

De-initializes the manager.

Returns:: 'true' if all went fine, else 'false'

Reimplemented from PLCore::ElementManager< AType >.

virtual PLS_API SceneNode* PLScene::SceneContainer::GetByIndex ( PLCore::uint32 nIndex = 0 ) const [override, virtual]

virtual PLS_API SceneNode* PLScene::SceneContainer::GetByName ( const PLCore::String & sName ) const [override, virtual]

Returns the element with the given name.

Parameters:

[in] sName Element name

Returns:: The corresponding element, a null pointer if there's no match

Note:

You can overload this function to specialize the behavior. This is done for instance within SceneContainer to be able to use 'absolute names' like 'Root.MyScene.MyNode', too.

Reimplemented from PLCore::ElementManager< AType >.

virtual PLS_API bool PLScene::SceneContainer::LoadByFilename	(	const PLCore::String &	sFilename,
		const PLCore::String &	sParams = `""`,
		const PLCore::String &	sMethod = `""`
	)		`[override, virtual]`

Loads the loadable from a file given by filename.

Parameters:

[in]	sFilename	Loadable filename
[in]	sParams	Optional load method parameters, can be an empty string
[in]	sMethod	Optional name of the load method to use, can be an empty string

Returns:: 'true' if all went fine, else 'false'

Note:

If no method name was provided, 'Load' if sParams is empty, or 'LoadParams' if sParams is not empty is used automatically

Reimplemented from PLCore::Loadable.

Reimplemented in PLPhysics::SCPhysicsWorld.

virtual PLS_API bool PLScene::SceneContainer::LoadByFile	(	PLCore::File &	cFile,
		const PLCore::String &	sParams = `""`,
		const PLCore::String &	sMethod = `""`
	)		`[override, virtual]`

Loads the loadable from a file given by a reference.

Parameters:

[in]	cFile	File to load from, must be opened and readable
[in]	sParams	Optional load method parameters, can be an empty string
[in]	sMethod	Optional name of the load method to use, can be an empty string

Returns:: 'true' if all went fine, else 'false'

Note:

If no method name was provided, 'Load' if sParams is empty, or 'LoadParams' if sParams is not empty is used automatically

Reimplemented from PLCore::Loadable.

Reimplemented in PLPhysics::SCPhysicsWorld.

virtual PLS_API bool PLScene::SceneContainer::Unload ( ) [override, virtual]

Unloads the loadable.

Returns:: 'true' if all went fine, else 'false'

Reimplemented from PLCore::Loadable.

virtual PLS_API PLCore::String PLScene::SceneContainer::GetLoadableTypeName ( ) const [override, virtual]

Returns the loadable type name.

Returns:: The loadable type name

Reimplemented from PLCore::Loadable.

virtual PLS_API bool PLScene::SceneContainer::CallLoadable	(	PLCore::File &	cFile,
		PLCore::Loader &	cLoader,
		const PLCore::String &	sMethod,
		const PLCore::String &	sParams
	)		`[override, protected, virtual]`

Calls the loadable in order to load or save.

Parameters:

[in]	cFile	File to load from, MUST be opened
[in]	cLoader	Loader to use
[in]	sMethod	Name of the method to use
[in]	sParams	Method parameters

Returns:: 'true' if all went fine, else 'false'

Note:

The default implementation is empty and will return always 'false'

Reimplemented from PLCore::Loadable.

The documentation for this class was generated from the following files:
