A set of planes defines a convex volume (e.g. the frustum, an event area...) More...

#include <PlaneSet.h>

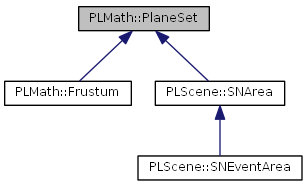

Inheritance diagram for PLMath::PlaneSet:

Public Types
enum	EViewPlaneOrder { VPNear = 0, VPRight = 1, VPLeft = 2, VPBottom = 3, VPTop = 4, VPFar = 5 }
	Default view plane order. More...
Public Member Functions
PLMATH_API	PlaneSet ()
	Constructor.
PLMATH_API	PlaneSet (const PlaneSet &cSource)
	Copy constructor.
virtual PLMATH_API	~PlaneSet ()
	Destructor.
PLMATH_API Plane *	Create ()
	Creates and adds a new plane to the plane set.
PLMATH_API void	CreateBox (const Vector3 &vMin, const Vector3 &vMax)
	Creates 6 planes which enclose a box area.
PLMATH_API void	CreateViewPlanes (const Matrix4x4 &mViewProjection, bool bInfProj=false)
	Creates view planes using a view projection matrix.
PLMATH_API bool	CreateViewPlanes (const PLCore::Array< Vector3 > &lstVertices, const Vector3 &vViewPosition)
	Creates view planes using vertices and a view position.
PLMATH_API void	CreateSelectionPlanes (const Vector2 &vStartPos, const Vector2 &vEndPos, int nX, int nY, int nWidth, int nHeight, const Matrix4x4 &mProjection, const Matrix4x4 &mView, bool bInfProj=false)
	Creates selection planes.
PLMATH_API void	CreateSelectionPlanes (const Vector2 &vStartPos, const Vector2 &vEndPos, int nX, int nY, int nWidth, int nHeight, const Matrix4x4 &mProjection, const Matrix3x4 &mView, bool bInfProj=false)
PLMATH_API PLCore::uint32	GetNumOfPlanes () const
	Returns the number of planes.
PLMATH_API const Plane *	operator[] (int nID) const
	Returns a plane.
PLMATH_API Plane *	operator[] (int nID)
	Returns a plane.
PLMATH_API PLCore::Array< Plane > &	GetList ()
	Returns the plane list.
PLMATH_API const PLCore::Array < Plane > &	GetList () const
	Returns the plane list.
PLMATH_API bool	RemovePlane (PLCore::uint32 nID=0)
	Removes a plane.
PLMATH_API void	Clear ()
	Clears the plane set.
PLMATH_API PlaneSet &	operator= (const PlaneSet &cSource)
	Copy operator.
PLMATH_API PlaneSet &	operator*= (const Matrix3x3 &mRot)
	Plane set transformation.
PLMATH_API PlaneSet &	operator*= (const Matrix3x4 &mTrans)
	Plane set transformation.
PLMATH_API PlaneSet &	operator*= (const Matrix4x4 &mTrans)
	Plane set transformation.
PLMATH_API bool	IsConvex () const
	Checks whether the plane set is convex or not.
PLMATH_API void	CalculateSphere (Sphere &cSphere) const
	Calculates the sphere surrounding the enclosed area.
PLMATH_API void	CalculateBox (Vector3 &vMin, Vector3 &vMax) const
	Calculates the box surrounding the enclosed area.
Protected Attributes
PLCore::Array< Plane >	m_lstPlane

Detailed Description

A set of planes defines a convex volume (e.g. the frustum, an event area...)

Note:

If there are no planes the tests whether something is inside the planes or not will return always 'false'

Member Enumeration Documentation

enum PLMath::PlaneSet::EViewPlaneOrder

Default view plane order.

Enumerator:

VPNear	Near plane
VPRight	Right plane
VPLeft	Left plane
VPBottom	Bottom plane
VPTop	Top plane
VPFar	Far plane

Constructor & Destructor Documentation

PLMATH_API PLMath::PlaneSet::PlaneSet ( )

Constructor.

PLMATH_API PLMath::PlaneSet::PlaneSet ( const PlaneSet & cSource )

Copy constructor.

Parameters:

[in] cSource Source to copy from

virtual PLMATH_API PLMath::PlaneSet::~PlaneSet ( ) [virtual]

Destructor.

Member Function Documentation

PLMATH_API Plane* PLMath::PlaneSet::Create ( )

Creates and adds a new plane to the plane set.

Returns:: The created and added new plane, a null pointer if there was an error

PLMATH_API void PLMath::PlaneSet::CreateBox	(	const Vector3 &	vMin,
		const Vector3 &	vMax
	)

Creates 6 planes which enclose a box area.

Parameters:

[in]	vMin	Minimum position of the box
[in]	vMax	Maximum position of the box

Remarks:: Plane order:
0 = Left (min x)
1 = Right (max x)
2 = Bottom (min y)
3 = Top (max y)
4 = Back (min z)
5 = Front (max z)

Note:

The six enclosing planes corresponding to the box are created automatically

PLMATH_API void PLMath::PlaneSet::CreateViewPlanes	(	const Matrix4x4 &	mViewProjection,
		bool	bInfProj = `false`
	)

Creates view planes using a view projection matrix.

Parameters:

[in]	mViewProjection	View projection matrix
[in]	bInfProj	Is the projection matrix part infinite? In this case, there's no far plane.

Note:

If there are not enough planes this function will create it. There are 6 view planes of the projection matrix is not infinite, else there are 5 planes. (no far plane)
See EViewPlaneOrder for plane order

PLMATH_API bool PLMath::PlaneSet::CreateViewPlanes	(	const PLCore::Array< Vector3 > &	lstVertices,
		const Vector3 &	vViewPosition
	)

Creates view planes using vertices and a view position.

Parameters:

[in]	lstVertices	Vertices (xyz, counterclockwise) defining a 'portal'-polygon (there must be at least 3 vertices)
[in]	vViewPosition	View position

Returns:: 'true' if all went fine, else 'false' (not enough vertices provided?)

Remarks:: You can for example use this function to create a 'frustum of a portal'.

Note:

If there are not enough planes this function will create it. There are 5 planes. (no far plane)

PLMATH_API void PLMath::PlaneSet::CreateSelectionPlanes	(	const Vector2 &	vStartPos,
		const Vector2 &	vEndPos,
		int	nX,
		int	nY,
		int	nWidth,
		int	nHeight,
		const Matrix4x4 &	mProjection,
		const Matrix4x4 &	mView,
		bool	bInfProj = `false`
	)

Creates selection planes.

Parameters:

[in]	vStartPos	Selection rectangle start position
[in]	vEndPos	Selection rectangle end position
[in]	nX	X component of the pixel coordinate of the upper-left corner of the viewport
[in]	nY	Y component of the pixel coordinate of the upper-left corner of the viewport
[in]	nWidth	Width of the clip volume, in pixels
[in]	nHeight	Height of the clip volume, in pixels
[in]	mProjection	Projection matrix
[in]	mView	View matrix
[in]	bInfProj	Is the projection matrix infinite? In this case, there's no far plane.

Note:

Use this function for instance when dragging a selection rectangle via mouse to receive the scene nodes within it. The start and end positions are within the given viewport.
If there are not enough planes this function will create it. There are 6 selection planes.
See EViewPlaneOrder for plane order

PLMATH_API void PLMath::PlaneSet::CreateSelectionPlanes	(	const Vector2 &	vStartPos,
		const Vector2 &	vEndPos,
		int	nX,
		int	nY,
		int	nWidth,
		int	nHeight,
		const Matrix4x4 &	mProjection,
		const Matrix3x4 &	mView,
		bool	bInfProj = `false`
	)

PLMATH_API PLCore::uint32 PLMath::PlaneSet::GetNumOfPlanes ( ) const

Returns the number of planes.

Returns:: Number of planes in the set

PLMATH_API const Plane* PLMath::PlaneSet::operator[] ( int nID ) const

Returns a plane.

Parameters:

[in] nID ID of the plane which should be returned

Returns:: Plane with the given ID, a null pointer if there was an error

PLMATH_API Plane* PLMath::PlaneSet::operator[] ( int nID )

Returns a plane.

Parameters:

[in] nID ID of the plane which should be returned

Returns:: Plane with the given ID, a null pointer if there was an error

PLMATH_API PLCore::Array<Plane>& PLMath::PlaneSet::GetList ( )

Returns the plane list.

Returns:: Plane list

PLMATH_API const PLCore::Array<Plane>& PLMath::PlaneSet::GetList ( ) const

Returns the plane list.

Returns:: Plane list

PLMATH_API bool PLMath::PlaneSet::RemovePlane ( PLCore::uint32 nID = 0 )

Removes a plane.

Parameters:

[in] nID ID of the plane which should be removed

Returns:: 'true' if all went fine, else 'false'

PLMATH_API void PLMath::PlaneSet::Clear ( )

Clears the plane set.

PLMATH_API PlaneSet& PLMath::PlaneSet::operator= ( const PlaneSet & cSource )

Copy operator.

Parameters:

[in] cSource Source to copy from

Returns:: Reference to this instance

PLMATH_API PlaneSet& PLMath::PlaneSet::operator*= ( const Matrix3x3 & mRot )

Plane set transformation.

Parameters:

[in] mRot 3x3 rotation matrix

Returns:: This instance

PLMATH_API PlaneSet& PLMath::PlaneSet::operator*= ( const Matrix3x4 & mTrans )

Plane set transformation.

Parameters:

[in] mTrans 3x4 transformation matrix

Returns:: This instance

PLMATH_API PlaneSet& PLMath::PlaneSet::operator*= ( const Matrix4x4 & mTrans )

Plane set transformation.

Parameters:

[in] mTrans 4x4 transformation matrix

Returns:: This instance

PLMATH_API bool PLMath::PlaneSet::IsConvex ( ) const

Checks whether the plane set is convex or not.

Returns:: 'true' if the plane set is convex, else 'false'

Remarks:: A plane set is a convex volume if each plane has at least one 'neighbour' plane 'facing' it.

PLMATH_API void PLMath::PlaneSet::CalculateSphere ( Sphere & cSphere ) const

Calculates the sphere surrounding the enclosed area.

Parameters:

[out] cSphere Will receive the sphere surrounding the enclosed area

See also:

GetSphere()

PLMATH_API void PLMath::PlaneSet::CalculateBox	(	Vector3 &	vMin,
		Vector3 &	vMax
	)		const

Calculates the box surrounding the enclosed area.

Parameters:

[out]	vMin	Will receive the minimum position of the box
[out]	vMax	Will receive the maximum position of the box

Member Data Documentation

PLCore::Array<Plane> PLMath::PlaneSet::m_lstPlane [protected]

Plane list

The documentation for this class was generated from the following file:

PlaneSet.h
