Abstract sound manager main class. More...

#include <SoundManager.h>

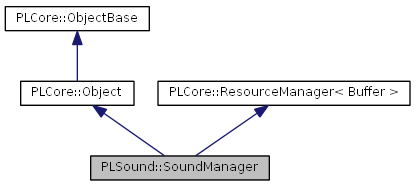

Inheritance diagram for PLSound::SoundManager:

Classes
class	Format
	Sound format. More...
Public Types
enum	EListener { ListenerPosition = 0, ListenerVelocity = 1, ListenerForward = 2, ListenerUpward = 3, ListenerNumber = 4 }
	Listener attributes. More...
Public Member Functions
	pl_class (PLSOUND_RTTI_EXPORT, SoundManager,"PLSound", PLCore::Object,"Abstract sound manager main class") pl_class_endpublic
	Sound statistics.
virtual PLSOUND_API	~SoundManager ()
	Destructor.
PLSOUND_API const Statistics &	GetStatistics () const
	Returns the sound statistics.
PLSOUND_API PLCore::uint32	GetNumOfResources () const
	Returns the number of resources.
PLSOUND_API Resource *	GetResource (PLCore::uint32 nIndex=0) const
	Returns a sound resource.
PLSOUND_API bool	AddResource (Resource &cResource)
	Adds a sound resource to the sound manager.
PLSOUND_API bool	RemoveResource (Resource &cResource)
	Removes a sound resource from the sound manager.
virtual PLCore::String	GetDescription () const =0
	Returns the sound manager description.
virtual bool	GetFormatList (PLCore::List< Format > &lstList) const =0
	Gets a list of all known sound formats.
virtual float	GetVolume () const =0
	Gets the master volume.
virtual void	SetVolume (float fVolume=1.0f)=0
	Sets the master volume.
virtual float	GetPitch () const =0
	Returns the master pitch multiplier.
virtual void	SetPitch (float fPitch=1.0f)=0
	Sets the master pitch multiplier.
virtual float	GetDopplerFactor () const =0
	Gets the doppler factor.
virtual void	SetDopplerFactor (float fFactor=1.0f)=0
	Sets the doppler factor.
virtual Buffer *	CreateSoundBuffer (const PLCore::String &sFilename="", bool bStream=false)=0
	Creates a sound buffer.
virtual Source *	CreateSoundSource (Buffer *pSoundBuffer=nullptr)=0
	Creates a sound source.
virtual PLMath::Vector3	GetListenerAttribute (EListener nAttribute) const =0
	Gets a listener attribute value.
virtual bool	SetListenerAttribute (EListener nAttribute, const PLMath::Vector3 &vV)=0
	Sets a listener attribute value.
Protected Member Functions
PLSOUND_API	SoundManager ()
	Constructor.
Protected Attributes
Statistics	m_sStatistics
PLCore::Array< Resource * >	m_lstResources

Detailed Description

Abstract sound manager main class.

Note:

Does not unload unused resources automatically by default

Member Enumeration Documentation

enum PLSound::SoundManager::EListener

Listener attributes.

Enumerator:

ListenerPosition	Position (float3, x/y/z)
ListenerVelocity	Velocity in meters per second (float3, x/y/z)
ListenerForward	Forward unit length orientation vector (float3, x/y/z)
ListenerUpward	Upwards facing unit length orientation vector (float3, x/y/z)
ListenerNumber	Number of listener properties

Constructor & Destructor Documentation

virtual PLSOUND_API PLSound::SoundManager::~SoundManager ( ) [virtual]

Destructor.

PLSOUND_API PLSound::SoundManager::SoundManager ( ) [protected]

Constructor.

Member Function Documentation

PLSound::SoundManager::pl_class	(	PLSOUND_RTTI_EXPORT	,
		SoundManager	,
		"PLSound"	,
		PLCore::Object	,
		"Abstract sound manager main class"
	)		`[inline]`

Sound statistics.

< Number of sound buffers

< Number of sound sources

< Number of currently active sound sources

PLSOUND_API const Statistics& PLSound::SoundManager::GetStatistics ( ) const

Returns the sound statistics.

Returns:: The sound statistics

PLSOUND_API PLCore::uint32 PLSound::SoundManager::GetNumOfResources ( ) const

Returns the number of resources.

Returns:: Number of resources

PLSOUND_API Resource* PLSound::SoundManager::GetResource ( PLCore::uint32 nIndex = 0 ) const

Returns a sound resource.

Parameters:

[in] nIndex Index of the resource to return

Returns:: The resource at the given index, a null pointer on error

PLSOUND_API bool PLSound::SoundManager::AddResource ( Resource & cResource )

Adds a sound resource to the sound manager.

Parameters:

[in] cResource Sound resource to add

Returns:: 'true' if all went fine and the sound resource was added to the sound manager, else 'false'

Note:

The sound resource itself is only added to the sound manager's list of resources!

PLSOUND_API bool PLSound::SoundManager::RemoveResource ( Resource & cResource )

Removes a sound resource from the sound manager.

Parameters:

[in] cResource Sound resource to remove

Returns:: 'true' if all went fine and the sound resource was removed from the sound manager, else 'false' (maybe the resource isn't in the sound manager)

Note:

The sound resource itself isn't destroyed, it is just removed from the sound manager's list of resources!

virtual PLCore::String PLSound::SoundManager::GetDescription ( ) const [pure virtual]

Returns the sound manager description.

Returns:: Sound manager description

virtual bool PLSound::SoundManager::GetFormatList ( PLCore::List< Format > & lstList ) const [pure virtual]

Gets a list of all known sound formats.

Parameters:

[out] lstList List to receive the known sound formats (see Format)

Returns:: 'true' if all went fine, else 'false'

Note:

The given list is NOT cleared before the formats are added

virtual float PLSound::SoundManager::GetVolume ( ) const [pure virtual]

Gets the master volume.

Returns:: Volume (value from 0.0-1.0 -> 0.0 = silence, 1.0 = full volume)

virtual void PLSound::SoundManager::SetVolume ( float fVolume = 1.0f ) [pure virtual]

Sets the master volume.

Parameters:

[in] fVolume Volume (value from 0.0-1.0 -> 0.0 = silence, 1.0 = full volume)

virtual float PLSound::SoundManager::GetPitch ( ) const [pure virtual]

Returns the master pitch multiplier.

Returns:: Pitch multiplier

Remarks:: pitch < 1.0 = slower
pitch = 1.0 = normal
pitch > 1.0 = faster

virtual void PLSound::SoundManager::SetPitch ( float fPitch = 1.0f ) [pure virtual]

Sets the master pitch multiplier.

Parameters:

[in] fPitch Pitch multiplier

See also:

GetPitch()

virtual float PLSound::SoundManager::GetDopplerFactor ( ) const [pure virtual]

Gets the doppler factor.

Returns:: Doppler factor

Remarks:: If velocities are applied to the listener object or to any source object, then doppler shift will be applied to the audio. The following formula is used to calculate doppler shift:
f� = f*(DV � DF*vl)/(DV + DF*vs)
DV = doppler velocity
DF = doppler factor
vl = listener velocity (scalar value along source-to-listener vector)
vs = source velocity (scalar value along source-to-listener vector)
f = frequency of sample
f� = Doppler shifted frequency
The doppler velocity (340) represents the speed of sound.
The doppler factor is used to exaggerate or de-emphasize the doppler shift.

virtual void PLSound::SoundManager::SetDopplerFactor ( float fFactor = 1.0f ) [pure virtual]

Sets the doppler factor.

Parameters:

[in] fFactor Doppler factor

See also:

GetDopplerFactor()

virtual Buffer* PLSound::SoundManager::CreateSoundBuffer	(	const PLCore::String &	sFilename = `""`,
		bool	bStream = `false`
	)		`[pure virtual]`

Creates a sound buffer.

Parameters:

[in]	sFilename	Sound filename, if empty, only create the sound buffer without loading it (full path, supported file formats are API dependent)
[in]	bStream	Stream the file? (recommended for large files!)

Returns:: The created sound buffer, a null pointer on error

Note:

If there's already a sound buffer with this name, this sound buffer is returned
Not each sound buffer can be streamed, use SoundBuffer::IsStreamed() to check whether streaming is used.

virtual Source* PLSound::SoundManager::CreateSoundSource ( Buffer * pSoundBuffer = nullptr ) [pure virtual]

Creates a sound source.

Parameters:

[in] pSoundBuffer Sound buffer to load, a null pointer if load no sound buffer by default

Returns:: The created sound source, a null pointer on error

Remarks:: The simplest creation of a sound source ready for playback would be
SoundSource *pSS = pSM->CreateSoundSource(CreateSoundBuffer("MySound.wav"));
Whereby 'MySound.wav' isn't loaded twice if there's already such a sound buffer.

virtual PLMath::Vector3 PLSound::SoundManager::GetListenerAttribute ( EListener nAttribute ) const [pure virtual]

Gets a listener attribute value.

Parameters:

[in] nAttribute Listener attribute to return

Returns:: Requested listener attribute value

virtual bool PLSound::SoundManager::SetListenerAttribute	(	EListener	nAttribute,
		const PLMath::Vector3 &	vV
	)		`[pure virtual]`

Sets a listener attribute value.

Parameters:

[in]	nAttribute	Listener attribute to set
[in]	vV	New listener attribute value

Returns:: 'true' if all went fine, else 'false'

Member Data Documentation

Statistics PLSound::SoundManager::m_sStatistics [protected]

Sound statistics

PLCore::Array<Resource*> PLSound::SoundManager::m_lstResources [protected]

Sound resources of this sound manager

Reimplemented from PLCore::ResourceManager< Buffer >.

The documentation for this class was generated from the following file:

SoundManager.h
