#include <Object.h>

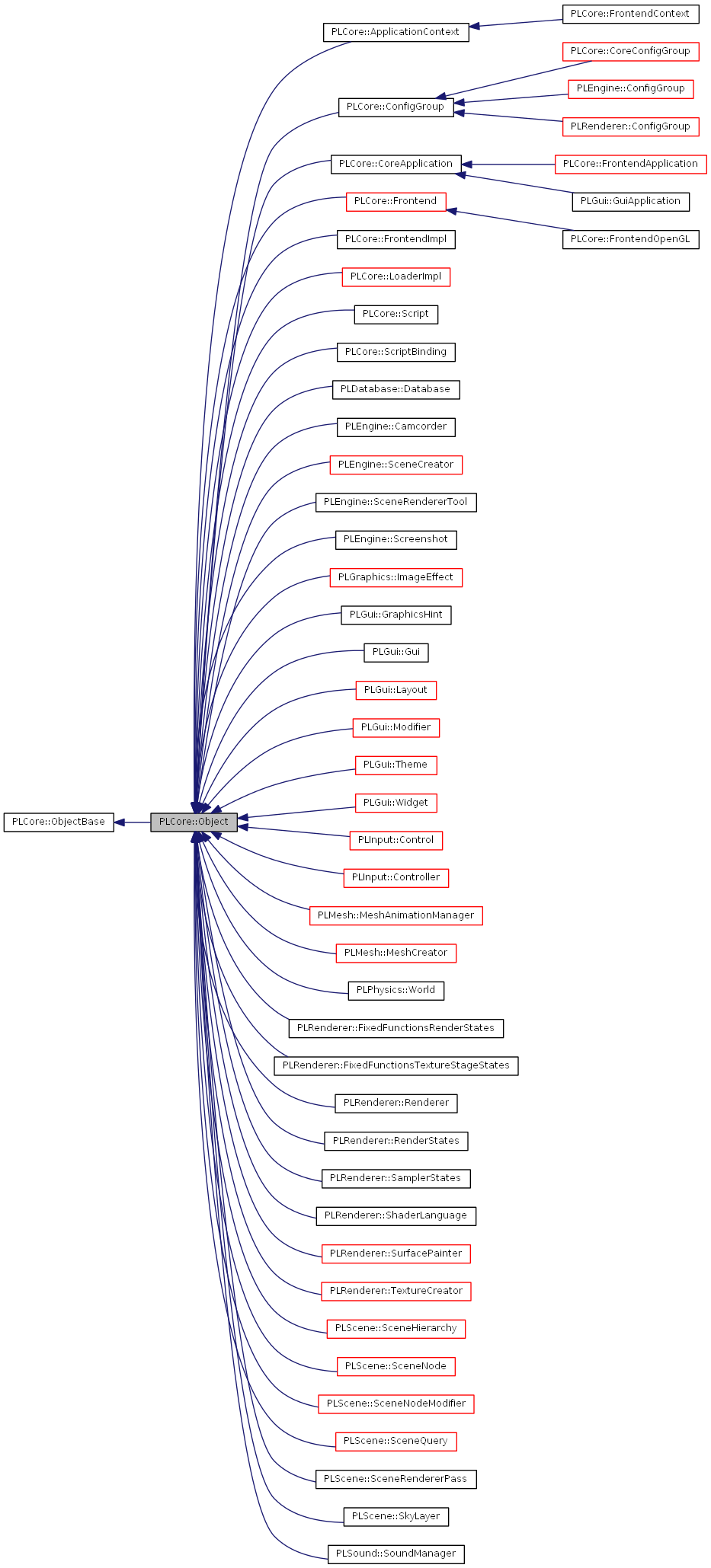

Inheritance diagram for PLCore::Object:

[legend]

Public Member Functions
PLCORE_API	Object ()
	Constructor.
virtual PLCORE_API	~Object ()
	Destructor.
PLCORE_API bool	IsInstanceOfByReference (const Class &cClass) const
	Check if object is instance of a given class by using a given class reference.
PLCORE_API bool	IsInstanceOf (const String &sClass) const
	Check if object is instance of a given class.
PLCORE_API const List< DynVar * >	GetAttributes () const
	Get attributes.
PLCORE_API DynVar *	GetAttribute (const String &sName) const
	Get attribute.
PLCORE_API void	GetMethods (List< DynFuncPtr > &lstMethods)
	Get all callable methods.
PLCORE_API DynFuncPtr	GetMethod (const String &sName)
	Get callable method by using a given method name.
PLCORE_API const List< DynEvent * >	GetSignals () const
	Get a list of all signals.
PLCORE_API DynEvent *	GetSignal (const String &sName) const
	Get signal by using a given signal name.
PLCORE_API const List < DynEventHandler * >	GetSlots () const
	Get a list of all slots.
PLCORE_API DynEventHandler *	GetSlot (const String &sName) const
	Get slot by using a given slot name.
PLCORE_API void	SetAttribute (const String &sName, const String &sValue)
	Set attribute value by using a given string value.
PLCORE_API void	SetAttribute (const String &sName, const DynVar &cVar)
	Set attribute value by using a given dynamic variable reference.
PLCORE_API void	SetAttribute (const String &sName, const DynVar *pVar)
	Set attribute value by using a given dynamic variable pointer.
PLCORE_API void	SetAttributeDefault (const String &sName)
	Set attribute to it's default value.
PLCORE_API void	CallMethod (const String &sName, DynParams &cParams)
	Call method with given dynamic parameters.
PLCORE_API void	CallMethod (const String &sName, const DynParams &cParams)
	Call method with given constant dynamic parameters.
PLCORE_API void	CallMethod (const String &sName, const String &sParams)
	Call method with parameters given as string.
PLCORE_API void	CallMethod (const String &sName, const XmlElement &cElement)
	Call method with parameters given as XML element.
PLCORE_API String	GetValues (EDefaultValue nDefaultValue=NoDefault) const
	Get attribute values as a string.
PLCORE_API void	SetValues (const String &sVars)
	Set multiple attribute values as a string at once.
PLCORE_API void	GetValuesXml (XmlElement &cElement, EDefaultValue nDefaultValue=NoDefault) const
	Get attribute values as XML.
PLCORE_API void	SetValuesXml (const XmlElement &cElement)
	Set attribute values from XML.
PLCORE_API void	SetDefaultValues ()
	Set all attributes to default.
virtual PLCORE_API String	ToString () const
	Get object as string.
virtual PLCORE_API void	FromString (const String &sString)
	Set object from string.
virtual PLCORE_API XmlElement	ToXml () const
	Get object as XML.
virtual PLCORE_API void	FromXml (const XmlElement &cElement)
	Set object from XML.

Detailed Description

Object base class.

Constructor & Destructor Documentation

PLCORE_API PLCore::Object::Object ( )

Constructor.

virtual PLCORE_API PLCore::Object::~Object ( ) [virtual]

Destructor.

Member Function Documentation

PLCORE_API bool PLCore::Object::IsInstanceOfByReference ( const Class & cClass ) const

Check if object is instance of a given class by using a given class reference.

Parameters:

[in] cClass Class

Returns:: 'true' if the object is an instance of the class or one of it's derived classes, else 'false'

PLCORE_API bool PLCore::Object::IsInstanceOf ( const String & sClass ) const

Check if object is instance of a given class.

Parameters:

[in] sClass Class name (with namespace)

Returns:: 'true' if the object is an instance of the class or one of it's derived classes, else 'false'

PLCORE_API const List<DynVar*> PLCore::Object::GetAttributes ( ) const

Get attributes.

Returns:: List of attributes (do not destroy the returned attribute instances)

Remarks:: Use this function with caution, as the list is assembled and copied each time the function is called! In general it is recommended to use GetClass()->GetAttributes() to obtain a list of attribute descriptors and then call GetAttribute() from the descriptor to get access to the actual attribute

PLCORE_API DynVar* PLCore::Object::GetAttribute ( const String & sName ) const

Get attribute.

Parameters:

[in] sName Attribute name

Returns:: Attribute (do not destroy the returned instance, can be a null pointer, if no attribute with that name could be found)

PLCORE_API void PLCore::Object::GetMethods ( List< DynFuncPtr > & lstMethods )

Get all callable methods.

Parameters:

[out] lstMethods Receives the list of callable methods, the given list is not cleared before new entries are added (do not destroy the returned instances)

Remarks:: Performance warning: Use this function with caution, as the list is assembled and callable method instances are created each time the function is called! If you only need the method descriptors, use GetClass()->GetMethods() instead.

PLCORE_API DynFuncPtr PLCore::Object::GetMethod ( const String & sName )

Get callable method by using a given method name.

Parameters:

[in] sName Method name

Returns:: Callable method (do not destroy the returned instance, can be a null pointer, if no method with that name could be found)

Remarks:: Performance warning: Use this function with caution, as the callable method instance is created each time the function is called! If you only need the method descriptor, use GetClass()->GetMethod() instead.

PLCORE_API const List<DynEvent*> PLCore::Object::GetSignals ( ) const

Get a list of all signals.

Returns:: List of signals (do not destroy the returned instances)

Remarks:: Use this function with caution, as the list is assembled and copied each time the function is called! In general it is recommended to use GetClass()->GetSignals() to obtain a list of signal descriptors and then call GetSignal() from the descriptor to get access to the actual signal

PLCORE_API DynEvent* PLCore::Object::GetSignal ( const String & sName ) const

Get signal by using a given signal name.

Parameters:

[in] sName Signal name

Returns:: Signal (do not destroy the returned instance, can be a null pointer, if no signal with that name could be found)

PLCORE_API const List<DynEventHandler*> PLCore::Object::GetSlots ( ) const

Get a list of all slots.

Returns:: List of slots (do not destroy the returned instances)

Remarks:: Use this function with caution, as the list is assembled and copied each time the function is called! In general it is recommended to use GetClass()->GetSlots() to obtain a list of slot descriptors and then call GetSlot() from the descriptor to get access to the actual slot

PLCORE_API DynEventHandler* PLCore::Object::GetSlot ( const String & sName ) const

Get slot by using a given slot name.

Parameters:

[in] sName Slot name

Returns:: Slot (do not destroy the returned instance, can be a null pointer, if no slot with that name could be found)

PLCORE_API void PLCore::Object::SetAttribute	(	const String &	sName,
		const String &	sValue
	)

Set attribute value by using a given string value.

Parameters:

[in]	sName	Attribute name
[in]	sValue	Attribute value as string

PLCORE_API void PLCore::Object::SetAttribute	(	const String &	sName,
		const DynVar &	cVar
	)

Set attribute value by using a given dynamic variable reference.

Parameters:

[in]	sName	Attribute name
[in]	cVar	Attribute value as dynamic variable reference

PLCORE_API void PLCore::Object::SetAttribute	(	const String &	sName,
		const DynVar *	pVar
	)

Set attribute value by using a given dynamic variable pointer.

Parameters:

[in]	sName	Attribute name
[in]	pVar	Attribute value as dynamic variable pointer, in case of a null pointer, nothing happens at all

Remarks:: This is a comfort method allowing to write e.g. pFirstObject->SetAttribute("MyAttribute", pSecondObject->GetAttribute("MyAttribute")); instead of DynVar *pDynVar = pSecondObject->GetAttribute(); if (pDynVar) pFirstObject->SetAttribute("MyAttribute", *pDynVar); In case there's no such attribute in "pSecondObject", nothing happens at all.

PLCORE_API void PLCore::Object::SetAttributeDefault ( const String & sName )

Set attribute to it's default value.

Parameters:

[in] sName Attribute name

PLCORE_API void PLCore::Object::CallMethod	(	const String &	sName,
		DynParams &	cParams
	)

Call method with given dynamic parameters.

Parameters:

[in]	sName	Method name
[in]	cParams	Dynamic parameters

PLCORE_API void PLCore::Object::CallMethod	(	const String &	sName,
		const DynParams &	cParams
	)

Call method with given constant dynamic parameters.

Parameters:

[in]	sName	Method name
[in]	cParams	Constant dynamic parameters

PLCORE_API void PLCore::Object::CallMethod	(	const String &	sName,
		const String &	sParams
	)

Call method with parameters given as string.

Parameters:

[in]	sName	Method name
[in]	sParams	Parameters as string

PLCORE_API void PLCore::Object::CallMethod	(	const String &	sName,
		const XmlElement &	cElement
	)

Call method with parameters given as XML element.

Parameters:

[in]	sName	Method name
[in]	cElement	Parameters as XML element

PLCORE_API String PLCore::Object::GetValues ( EDefaultValue nDefaultValue = NoDefault ) const

Get attribute values as a string.

Parameters:

[in] nDefaultValue 'WithDefault' to retrieve all attributes, 'NoDefault' to only retrieve attributes that are not set to default

Returns:: String containing attributes and values

Remarks:: The returned string contains the attributes and their values. Example: "Name='Test' IntValue='10'"

PLCORE_API void PLCore::Object::SetValues ( const String & sVars )

Set multiple attribute values as a string at once.

Parameters:

[in] sVars String containing attributes and values (e.g. "Name='Bob' Position='1 2 3'")

PLCORE_API void PLCore::Object::GetValuesXml	(	XmlElement &	cElement,
		EDefaultValue	nDefaultValue = `NoDefault`
	)		const

Get attribute values as XML.

Parameters:

[out]	cElement	XML element
[in]	nDefaultValue	'WithDefault' to retrieve all attributes, 'NoDefault' to only retrieve attributes that are not set to default

Remarks:: The attributes and their values are added as XML-attributes to the given XML-element

PLCORE_API void PLCore::Object::SetValuesXml ( const XmlElement & cElement )

Set attribute values from XML.

Parameters:

[out] cElement XML element

Remarks:: The attributes and their values are read from the XML-attributes of the given XML-element

PLCORE_API void PLCore::Object::SetDefaultValues ( )

Set all attributes to default.

virtual PLCORE_API String PLCore::Object::ToString ( ) const [virtual]

Get object as string.

Returns:: String representation of object

virtual PLCORE_API void PLCore::Object::FromString ( const String & sString ) [virtual]

Set object from string.

Parameters:

[in] sString String representation of object

virtual PLCORE_API XmlElement PLCore::Object::ToXml ( ) const [virtual]

Get object as XML.

Returns:: XML representation of object

virtual PLCORE_API void PLCore::Object::FromXml ( const XmlElement & cElement ) [virtual]

Set object from XML.

Parameters:

[in] cElement XML representation of object

The documentation for this class was generated from the following file:

Object.h
