Spot light scene node. More...

#include <SNSpotLight.h>

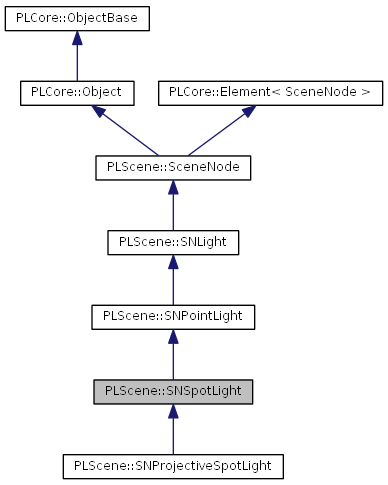

Inheritance diagram for PLScene::SNSpotLight:

[legend]

Public Types
enum	EFlags { NoCone = 1<<13 }
	Scene node flags (SceneNode flags extension) More...
Public Member Functions
	pl_enum (EFlags) pl_enum_base(SNPointLight
	Scene node debug flags (SceneNode debug flags extension)
PLS_API void	SetOuterAngle (float fValue)
PLS_API float	GetInnerAngle () const
PLS_API void	SetInnerAngle (float fValue)
PLS_API float	GetZNear () const
PLS_API void	SetZNear (float fValue)
PLS_API float	GetAspect () const
PLS_API void	SetAspect (float fValue)
PLS_API	SNSpotLight ()
	Default constructor.
virtual PLS_API	~SNSpotLight ()
	Destructor.
PLS_API const PLMath::Matrix4x4 &	GetProjectionMatrix ()
	Returns the projection matrix.
PLS_API const PLMath::Matrix3x4 &	GetViewMatrix ()
	Returns the view matrix.
PLS_API const PLMath::Frustum &	GetFrustum ()
	Returns the spot light frustum.
PLS_API const PLCore::Array < PLMath::Vector3 > &	GetFrustumVertices ()
	Returns the 8 spot light frustum vertices.
virtual PLS_API bool	IsSpotLight () const override
	Returns whether this scene node is a spot light (SNSpotLight) or not.
virtual PLS_API void	DrawDebug (PLRenderer::Renderer &cRenderer, const VisNode *pVisNode=nullptr) override
	This function is called when the debug parts of the scene are drawn.
Protected Types
enum	EInternalLightFlags { RecalculateProjectionMatrix = 1<<1, RecalculateViewMatrix = 1<<2, RecalculateFrustum = 1<<3, RecalculateFrustumVertices = 1<<4 }
	Flags which hold �nternal light information ('SNPointLight::EInternalLightFlags' extension) More...
Protected Member Functions
virtual PLS_API void	UpdateAABoundingBox () override
	Updates the axis align bounding box in 'scene node space'.
virtual PLS_API void	GetBoundingSphere (PLMath::Sphere &cSphere) override
	Returns the bounding sphere in 'scene node space'.
virtual PLS_API void	GetContainerBoundingSphere (PLMath::Sphere &cSphere) override
	Returns the current bounding sphere in 'scene container space'.

Detailed Description

Spot light scene node.

Remarks:: PixelLight is using a right-handed coordinate system like OpenGL does, therefore the spot light usually looks along the negative z-axis. While this fact may be ok in 'low level' functionality, it makes spot lights less comfortable within the scene graph because this 'look along negative z' doesn't go along with universal features like 'look at this point'. So, we decided to 'break' the right-handed coordinate system convention within the spot light scene node when it's coming to 'look along negative z'. Instead we 'look along positive z' and we profit from an universal behavior and don't need to care about flipping axis.

Note:

By default, the 'NoCone' flag is not set meaning that the given outer and inner angles are used for lighting

Member Enumeration Documentation

enum PLScene::SNSpotLight::EFlags

Scene node flags (SceneNode flags extension)

Enumerator:

NoCone

Do not use the given outer and inner angles for lighting

Reimplemented from PLScene::SNLight.

Reimplemented in PLScene::SNProjectiveSpotLight.

enum PLScene::SNSpotLight::EInternalLightFlags [protected]

Flags which hold �nternal light information ('SNPointLight::EInternalLightFlags' extension)

Enumerator:

RecalculateProjectionMatrix	Recalculation of projection matrix required
RecalculateViewMatrix	Recalculation of view matrix required
RecalculateFrustum	Recalculation of frustum required
RecalculateFrustumVertices	Recalculation of frustum vertices required

Reimplemented from PLScene::SNPointLight.

Constructor & Destructor Documentation

PLS_API PLScene::SNSpotLight::SNSpotLight ( )

Default constructor.

virtual PLS_API PLScene::SNSpotLight::~SNSpotLight ( ) [virtual]

Destructor.

Member Function Documentation

PLScene::SNSpotLight::pl_enum ( EFlags ) [inline]

Scene node debug flags (SceneNode debug flags extension)

< Perform a depth test when render the debug stuff like lines

< Do not draw the (green) frustum

< Draw the (green) frustum vertices

Reimplemented from PLScene::SceneNode.

PLS_API void PLScene::SNSpotLight::SetOuterAngle ( float fValue )

PLS_API float PLScene::SNSpotLight::GetInnerAngle ( ) const

PLS_API void PLScene::SNSpotLight::SetInnerAngle ( float fValue )

PLS_API float PLScene::SNSpotLight::GetZNear ( ) const

PLS_API void PLScene::SNSpotLight::SetZNear ( float fValue )

PLS_API float PLScene::SNSpotLight::GetAspect ( ) const

PLS_API void PLScene::SNSpotLight::SetAspect ( float fValue )

PLS_API const PLMath::Matrix4x4& PLScene::SNSpotLight::GetProjectionMatrix ( )

Returns the projection matrix.

Returns:: Projection matrix

PLS_API const PLMath::Matrix3x4& PLScene::SNSpotLight::GetViewMatrix ( )

Returns the view matrix.

Remarks:: PixelLight is using a right-handed coordinate system like OpenGL does, therefore the view matrix 'looks' along the negative z-axis. (unlike the spot light scene node itself, have a look into the class documentation)

Returns:: View matrix

PLS_API const PLMath::Frustum& PLScene::SNSpotLight::GetFrustum ( )

Returns the spot light frustum.

Returns:: Spot light frustum in 'scene container space'

PLS_API const PLCore::Array<PLMath::Vector3>& PLScene::SNSpotLight::GetFrustumVertices ( )

Returns the 8 spot light frustum vertices.

Returns:: 8 spot light frustum vertices in 'scene container space'

Note:

This vertices can for instance be used to check the spot frustum visibility

virtual PLS_API bool PLScene::SNSpotLight::IsSpotLight ( ) const [override, virtual]

Returns whether this scene node is a spot light (SNSpotLight) or not.

Returns:: 'true' if this scene node is a spot light, else 'false'

Note:

More performant than IsInstanceOf("PLScene::SNSpotLight")

Reimplemented from PLScene::SNLight.

virtual PLS_API void PLScene::SNSpotLight::DrawDebug	(	PLRenderer::Renderer &	cRenderer,
		const VisNode *	pVisNode = `nullptr`
	)		`[override, virtual]`

This function is called when the debug parts of the scene are drawn.

Parameters:

[in]	cRenderer	The used renderer
[in]	pVisNode	The current visibility node of this scene node, can be a null pointer

Note:

Should only be called if the 'UseDrawDebug' draw flag and the 'DebugEnabled' debug flag is set

Beside drawing scene node stuff, the default implementation emits the SignalDrawDebug signal

See also:

DrawPre()

Reimplemented from PLScene::SNPointLight.

virtual PLS_API void PLScene::SNSpotLight::UpdateAABoundingBox ( ) [override, protected, virtual]

Updates the axis align bounding box in 'scene node space'.

Remarks:: This function is called when the axis align bounding box needs to be calculated. One can overwrite the default implementation to calculate the axis align bounding box in another way. The default implementation is empty. (current set axis align bounding box is still used)

Note:

We recommend to use 'SetAABoundingBox()' inside your own implementation to set the new axis align bounding box, this function will take care of all other required updates

Reimplemented from PLScene::SNPointLight.

virtual PLS_API void PLScene::SNSpotLight::GetBoundingSphere ( PLMath::Sphere & cSphere ) [override, protected, virtual]

Returns the bounding sphere in 'scene node space'.

Parameters:

[out] cSphere Receives the bounding sphere in 'scene node space'

Remarks:: This function is called when the sphere needs to be calculated. One can overwrite the default implementation to calculate the sphere in another way.

Reimplemented from PLScene::SNPointLight.

virtual PLS_API void PLScene::SNSpotLight::GetContainerBoundingSphere ( PLMath::Sphere & cSphere ) [override, protected, virtual]

Returns the current bounding sphere in 'scene container space'.

Parameters:

[out] cSphere Receives the current bounding in 'scene container space'

See also:
