Ragdoll scene node. More...

#include <SNRagdoll.h>

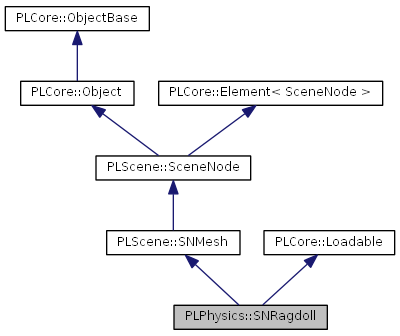

Inheritance diagram for PLPhysics::SNRagdoll:

[legend]

Public Types
enum	EDebugFlags { DebugNoPhysicsBodies = 1<<18 }
	Scene node debug flags (SceneNode debug flags extension) More...
Public Member Functions
PLPHYSICS_API bool	GetAttachToWorldEnabled () const
PLPHYSICS_API void	SetAttachToWorldEnabled (bool bValue)
PLPHYSICS_API bool	GetAutoFreeze () const
PLPHYSICS_API void	SetAutoFreeze (bool bValue)
PLPHYSICS_API bool	GetUseGravity () const
PLPHYSICS_API void	SetUseGravity (bool bValue)
PLPHYSICS_API	SNRagdoll ()
	Default constructor.
virtual PLPHYSICS_API	~SNRagdoll ()
	Destructor.
PLPHYSICS_API SCPhysicsWorld *	GetWorldContainer () const
	Returns the PL physics world scene node container the ragdoll is in.
PLPHYSICS_API void	ClearRagdoll ()
	Clears the radgoll.
PLPHYSICS_API bool	CreateRagdoll (PLMesh::SkeletonHandler *pSkeletonHandler=nullptr)
	Creates the ragdoll using a skeleton handler.
PLPHYSICS_API void	CreatePhysics (bool bAllowAttachToWorld=true)
	Creates the physics.
PLPHYSICS_API void	CreatePhysicsBodies ()
	Creates the physics bodies.
PLPHYSICS_API void	CreatePhysicsJoints (bool bAllowAttachToWorld=true)
	Creates the physics joints.
PLPHYSICS_API void	CreatePhysicsRagdoll (bool bAllowAttachToWorld=true)
	Creates the physics ragdoll.
PLPHYSICS_API PLMesh::Skeleton *	GetSkeleton () const
	Returns the ragdoll skeleton.
PLPHYSICS_API bool	IsEnabled () const
	Returns whether the ragdoll is enabled or not.
PLPHYSICS_API void	SetEnabled (bool bEnabled=true)
	Enables/disables all bodies and joints.
PLPHYSICS_API PLCore::uint32	GetNumOfBodies () const
	Returns the number of bodies.
PLPHYSICS_API RagdollBody *	GetBody (PLCore::uint32 nIndex) const
	Returns a body.
PLPHYSICS_API RagdollBody *	GetBody (const PLCore::String &sName) const
	Returns a body.
PLPHYSICS_API RagdollBody *	AddBody (const PLCore::String &sName="Joint", bool bCreatePhysics=true)
	Adds a new body.
PLPHYSICS_API RagdollBody *	CloneBody (PLCore::uint32 nIndex, bool bCreatePhysics=true)
	Clones a body.
PLPHYSICS_API bool	RemoveBody (PLCore::uint32 nIndex)
	Removes a body.
PLPHYSICS_API bool	RemoveBodyAndJoint (PLCore::uint32 nIndex)
	Removes a body and the joint attached to it.
PLPHYSICS_API PLCore::uint32	GetNumOfJoints () const
	Returns the number of joints.
PLPHYSICS_API RagdollJoint *	GetJoint (PLCore::uint32 nIndex) const
	Returns a joint.
PLPHYSICS_API RagdollJoint *	GetJoint (const PLCore::String &sName) const
	Returns a joint.
PLPHYSICS_API RagdollJoint *	AddJoint (const PLCore::String &sName="Joint", bool bCreatePhysics=true)
	Adds a new joint.
PLPHYSICS_API RagdollJoint *	CloneJoint (PLCore::uint32 nIndex, bool bCreatePhysics=true)
	Clones a joint.
PLPHYSICS_API bool	RemoveJoint (PLCore::uint32 nIndex)
	Removes a joint.
PLPHYSICS_API PLCore::uint32	GetNumOfNoCollisions () const
	Returns the number of no collisions.
PLPHYSICS_API NoCollision *	AddNoCollision ()
	Adds a new no collision.
PLPHYSICS_API NoCollision *	GetNoCollision (PLCore::uint32 nIndex) const
	Returns a no collision.
PLPHYSICS_API bool	RemoveNoCollision (PLCore::uint32 nIndex)
	Removes a no collision.
PLPHYSICS_API PLCore::uint32	GetNumOfControllers () const
	Returns the number of controllers.
PLPHYSICS_API JointController *	AddController (const PLCore::String &sJointName)
	Adds a new controller.
PLPHYSICS_API JointController *	GetController (PLCore::uint32 nIndex) const
	Returns a controller.
PLPHYSICS_API JointController *	GetController (const PLCore::String &sName) const
	Returns a controller.
PLPHYSICS_API bool	RemoveController (PLCore::uint32 nIndex)
	Removes a controller.
virtual PLPHYSICS_API void	DrawDebug (PLRenderer::Renderer &cRenderer, const PLScene::VisNode *pVisNode=nullptr) override
	This function is called when the debug parts of the scene are drawn.
virtual PLPHYSICS_API bool	Unload () override
	Unloads the loadable.
virtual PLPHYSICS_API PLCore::String	GetLoadableTypeName () const override
	Returns the loadable type name.
Protected Member Functions
virtual PLPHYSICS_API void	InitFunction () override
	This function is called when the scene node gets initialized.
virtual PLPHYSICS_API void	DeInitFunction () override
	This function is called when the scene node gets de-initialized.
virtual PLPHYSICS_API void	OnActivate (bool bActivate) override
	Called when the scene node has been activated or deactivated.
virtual PLPHYSICS_API bool	CallLoadable (PLCore::File &cFile, PLCore::Loader &cLoader, const PLCore::String &sMethod, const PLCore::String &sParams) override
	Calls the loadable in order to load or save.

Detailed Description

Ragdoll scene node.

Remarks:: The ragdoll (other names are 'online animation', 'articulated') scene node is an extension of SNMesh and allows the skeleton of the mesh to be influenced by a physics simulation.

Member Enumeration Documentation

enum PLPhysics::SNRagdoll::EDebugFlags

Scene node debug flags (SceneNode debug flags extension)

Enumerator:

DebugNoPhysicsBodies

Do not draw the physics bodies of the ragdoll

Constructor & Destructor Documentation

PLPHYSICS_API PLPhysics::SNRagdoll::SNRagdoll ( )

Default constructor.

virtual PLPHYSICS_API PLPhysics::SNRagdoll::~SNRagdoll ( ) [virtual]

Destructor.

Member Function Documentation

PLPHYSICS_API bool PLPhysics::SNRagdoll::GetAttachToWorldEnabled ( ) const

PLPHYSICS_API void PLPhysics::SNRagdoll::SetAttachToWorldEnabled ( bool bValue )

PLPHYSICS_API bool PLPhysics::SNRagdoll::GetAutoFreeze ( ) const

PLPHYSICS_API void PLPhysics::SNRagdoll::SetAutoFreeze ( bool bValue )

PLPHYSICS_API bool PLPhysics::SNRagdoll::GetUseGravity ( ) const

PLPHYSICS_API void PLPhysics::SNRagdoll::SetUseGravity ( bool bValue )

PLPHYSICS_API SCPhysicsWorld* PLPhysics::SNRagdoll::GetWorldContainer ( ) const

Returns the PL physics world scene node container the ragdoll is in.

Returns:: The PL physics world scene node container the ragdoll is in, a null pointer on error (if that's the case, something went totally wrong :)

Note:

This PL physics world scene node container can be another as the scene node container this scene node is in

PLPHYSICS_API void PLPhysics::SNRagdoll::ClearRagdoll ( )

Clears the radgoll.

PLPHYSICS_API bool PLPhysics::SNRagdoll::CreateRagdoll ( PLMesh::SkeletonHandler * pSkeletonHandler = nullptr )

Creates the ragdoll using a skeleton handler.

Parameters:

[in] pSkeletonHandler Skeleton handler to get the ragdoll information from, if a null pointer, a ragdoll is created automatically using the skeleton handler of the used mesh

Returns:: 'true' if all went fine, else 'false'

Remarks:: This function will create a ragdoll from a skeleton handler for you automatically. After the ragdoll was created, you just have to tweak it if required.

Note:

Only the main layout can be created using the skeleton handler (bodies, joints, positions, rotations etc.)
Default joint type: Universal
Default body size: 0.2 'length' 0.2
Default body mass: 1.0
The joint limits are between -0.5 and 0.5

PLPHYSICS_API void PLPhysics::SNRagdoll::CreatePhysics ( bool bAllowAttachToWorld = true )

Creates the physics.

Parameters:

[in] bAllowAttachToWorld Is it allowed to attach joints to the world?

Note:

This function calls CreatePhysicsBodies() and CreatePhysicsJoints()
You can use this function to reset the ragdoll to the initial pose (after a ragdoll is loaded it's in the initial pose by default)

PLPHYSICS_API void PLPhysics::SNRagdoll::CreatePhysicsBodies ( )

Creates the physics bodies.

Note:

After this function all physics bodies are in their initial pose

See also:

CreatePhysicsBodies()

PLPHYSICS_API void PLPhysics::SNRagdoll::CreatePhysicsJoints ( bool bAllowAttachToWorld = true )

Creates the physics joints.

Parameters:

[in] bAllowAttachToWorld Is it allowed to attach joints to the world?

Note:

After this function all physics joints are in their initial pose

See also:

CreatePhysicsBodies()

PLPHYSICS_API void PLPhysics::SNRagdoll::CreatePhysicsRagdoll ( bool bAllowAttachToWorld = true )

Creates the physics ragdoll.

Parameters:

[in] bAllowAttachToWorld Is it allowed to attach joints to the world?

PLPHYSICS_API PLMesh::Skeleton* PLPhysics::SNRagdoll::GetSkeleton ( ) const

Returns the ragdoll skeleton.

Returns:: The ragdoll skeleton, a null pointer on error

PLPHYSICS_API bool PLPhysics::SNRagdoll::IsEnabled ( ) const

Returns whether the ragdoll is enabled or not.

Returns:: 'true' if the ragdoll is enabled, else 'false'

PLPHYSICS_API void PLPhysics::SNRagdoll::SetEnabled ( bool bEnabled = true )

Enables/disables all bodies and joints.

Parameters:

[in] bEnabled 'true' if the ragdoll is enabled, else 'false'

PLPHYSICS_API PLCore::uint32 PLPhysics::SNRagdoll::GetNumOfBodies ( ) const

Returns the number of bodies.

Returns:: The number of bodies

PLPHYSICS_API RagdollBody* PLPhysics::SNRagdoll::GetBody ( PLCore::uint32 nIndex ) const

Returns a body.

Parameters:

[in] nIndex Index of the requested body

Returns:: The requested body, a null pointer on error

PLPHYSICS_API RagdollBody* PLPhysics::SNRagdoll::GetBody ( const PLCore::String & sName ) const

Returns a body.

Parameters:

[in] sName Name of the requested body

Returns:: The requested body, a null pointer on error

PLPHYSICS_API RagdollBody* PLPhysics::SNRagdoll::AddBody	(	const PLCore::String &	sName = `"Joint"`,
		bool	bCreatePhysics = `true`
	)

Adds a new body.

Parameters:

[in]	sName	Desired name
[in]	bCreatePhysics	Create the physics body after the body was added?

Returns:: The new ragdoll body, a null pointer on error

PLPHYSICS_API RagdollBody* PLPhysics::SNRagdoll::CloneBody	(	PLCore::uint32	nIndex,
		bool	bCreatePhysics = `true`
	)

Clones a body.

Parameters:

[in]	nIndex	Index of the body to clone
[in]	bCreatePhysics	Create the physics body after the cloned body was added?

Returns:: The new cloned ragdoll body, a null pointer on error

PLPHYSICS_API bool PLPhysics::SNRagdoll::RemoveBody ( PLCore::uint32 nIndex )

Removes a body.

Parameters:

[in] nIndex Index of the body to remove

Returns:: 'true' if all went fine, else 'false'

PLPHYSICS_API bool PLPhysics::SNRagdoll::RemoveBodyAndJoint ( PLCore::uint32 nIndex )

Removes a body and the joint attached to it.

Parameters:

[in] nIndex Index of the body to remove

Returns:: 'true' if all went fine, else 'false'

PLPHYSICS_API PLCore::uint32 PLPhysics::SNRagdoll::GetNumOfJoints ( ) const

Returns the number of joints.

Returns:: The number of joints

PLPHYSICS_API RagdollJoint* PLPhysics::SNRagdoll::GetJoint ( PLCore::uint32 nIndex ) const

Returns a joint.

Parameters:

[in] nIndex Index of the requested joint

Returns:: The requested joint, a null pointer on error

PLPHYSICS_API RagdollJoint* PLPhysics::SNRagdoll::GetJoint ( const PLCore::String & sName ) const

Returns a joint.

Parameters:

[in] sName Name of the requested joint

Returns:: The requested joint, a null pointer on error

PLPHYSICS_API RagdollJoint* PLPhysics::SNRagdoll::AddJoint	(	const PLCore::String &	sName = `"Joint"`,
		bool	bCreatePhysics = `true`
	)

Adds a new joint.

Parameters:

[in]	sName	Desired name
[in]	bCreatePhysics	Create the physics joint after the joint was added?

Returns:: The new ragdoll joint, a null pointer on error

PLPHYSICS_API RagdollJoint* PLPhysics::SNRagdoll::CloneJoint	(	PLCore::uint32	nIndex,
		bool	bCreatePhysics = `true`
	)

Clones a joint.

Parameters:

[in]	nIndex	Index of the joint to clone
[in]	bCreatePhysics	Create the physics joint after the cloned joint was added?

Returns:: The new cloned ragdoll joint, a null pointer on error

PLPHYSICS_API bool PLPhysics::SNRagdoll::RemoveJoint ( PLCore::uint32 nIndex )

Removes a joint.

Parameters:

[in] nIndex Index of the joint to remove

Returns:: 'true' if all went fine, else 'false'

PLPHYSICS_API PLCore::uint32 PLPhysics::SNRagdoll::GetNumOfNoCollisions ( ) const

Returns the number of no collisions.

Returns:: The number of no collisions

PLPHYSICS_API NoCollision* PLPhysics::SNRagdoll::AddNoCollision ( )

Adds a new no collision.

Returns:: The new no collision, a null pointer on error

PLPHYSICS_API NoCollision* PLPhysics::SNRagdoll::GetNoCollision ( PLCore::uint32 nIndex ) const

Returns a no collision.

Parameters:

[in] nIndex Index of the requested no collision

Returns:: The requested no collision, a null pointer on error

PLPHYSICS_API bool PLPhysics::SNRagdoll::RemoveNoCollision ( PLCore::uint32 nIndex )

Removes a no collision.

Parameters:

[in] nIndex Index of the no collision to remove

Returns:: 'true' if all went fine, else 'false'

PLPHYSICS_API PLCore::uint32 PLPhysics::SNRagdoll::GetNumOfControllers ( ) const

Returns the number of controllers.

Returns:: The number of controllers

PLPHYSICS_API JointController* PLPhysics::SNRagdoll::AddController ( const PLCore::String & sJointName )

Adds a new controller.

Parameters:

[in] sJointName Name of the joint to control

Returns:: The new (if not already created) controller, a null pointer on error

PLPHYSICS_API JointController* PLPhysics::SNRagdoll::GetController ( PLCore::uint32 nIndex ) const

Returns a controller.

Parameters:

[in] nIndex Index of the requested controller

Returns:: The requested controller, a null pointer on error

PLPHYSICS_API JointController* PLPhysics::SNRagdoll::GetController ( const PLCore::String & sName ) const

Returns a controller.

Parameters:

[in] sName Name of the requested controller

Returns:: The requested controller, a null pointer on error

PLPHYSICS_API bool PLPhysics::SNRagdoll::RemoveController ( PLCore::uint32 nIndex )

Removes a controller.

Parameters:

[in] nIndex Index of the controller to remove

Returns:: 'true' if all went fine, else 'false'

virtual PLPHYSICS_API void PLPhysics::SNRagdoll::DrawDebug	(	PLRenderer::Renderer &	cRenderer,
		const PLScene::VisNode *	pVisNode = `nullptr`
	)		`[override, virtual]`

This function is called when the debug parts of the scene are drawn.

Parameters:

[in]	cRenderer	The used renderer
[in]	pVisNode	The current visibility node of this scene node, can be a null pointer

Note:

Should only be called if the 'UseDrawDebug' draw flag and the 'DebugEnabled' debug flag is set

Beside drawing scene node stuff, the default implementation emits the SignalDrawDebug signal

See also:

DrawPre()

Reimplemented from PLScene::SNMesh.

virtual PLPHYSICS_API void PLPhysics::SNRagdoll::InitFunction ( ) [override, protected, virtual]

This function is called when the scene node gets initialized.

Reimplemented from PLScene::SceneNode.

virtual PLPHYSICS_API void PLPhysics::SNRagdoll::DeInitFunction ( ) [override, protected, virtual]

This function is called when the scene node gets de-initialized.

Reimplemented from PLScene::SNMesh.

virtual PLPHYSICS_API void PLPhysics::SNRagdoll::OnActivate ( bool bActivate ) [override, protected, virtual]

Called when the scene node has been activated or deactivated.

Parameters:

[in] bActivate 'true' if the scene node is now active, else 'false'

Note:

The scene node "Inactive"-flag as well as the "Frozen"-flag are taken into account
'bActivate' will be 'true' if the scene node AND the parent scene container (recursive!) are active
'bActivate' will be 'false' if the scene node OR the parent scene container (recursive!) is inactive
The default implementation calls the "OnActivate()" of all attached scene node modifiers

Reimplemented from PLScene::SceneNode.

virtual PLPHYSICS_API bool PLPhysics::SNRagdoll::Unload ( ) [override, virtual]

Unloads the loadable.

Returns:: 'true' if all went fine, else 'false'

Reimplemented from PLCore::Loadable.

virtual PLPHYSICS_API PLCore::String PLPhysics::SNRagdoll::GetLoadableTypeName ( ) const [override, virtual]

Returns the loadable type name.

Returns:: The loadable type name

Reimplemented from PLCore::Loadable.

virtual PLPHYSICS_API bool PLPhysics::SNRagdoll::CallLoadable	(	PLCore::File &	cFile,
		PLCore::Loader &	cLoader,
		const PLCore::String &	sMethod,
		const PLCore::String &	sParams
	)		`[override, protected, virtual]`

Calls the loadable in order to load or save.

Parameters:

[in]	cFile	File to load from, MUST be opened
[in]	cLoader	Loader to use
[in]	sMethod	Name of the method to use
[in]	sParams	Method parameters

Returns:: 'true' if all went fine, else 'false'

Note:

The default implementation is empty and will return always 'false'

Reimplemented from PLCore::Loadable.

The documentation for this class was generated from the following file:

SNRagdoll.h

Public Types

Public Member Functions

Protected Member Functions

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation
