Input controller. More...

#include <Controller.h>

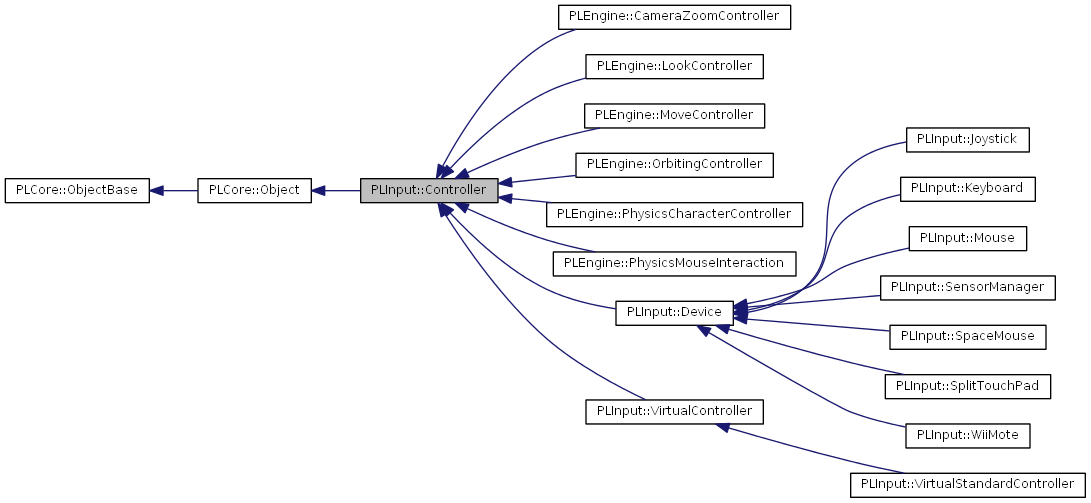

Inheritance diagram for PLInput::Controller:

[legend]

Public Member Functions
PLINPUT_API	Controller (EControllerType nType, const PLCore::String &sName, const PLCore::String &sDescription)
	Constructor.
virtual PLINPUT_API	~Controller ()
	Destructor.
PLINPUT_API EControllerType	GetType () const
	Get controller type.
PLINPUT_API PLCore::String	GetName () const
	Get controller name.
PLINPUT_API PLCore::String	GetDescription () const
	Get controller description.
PLINPUT_API bool	GetActive () const
	Check if controller is active.
PLINPUT_API void	SetActive (bool bActive)
	Activate or deactivate controller.
PLINPUT_API bool	HasChanged () const
	Check if the controller's state has changed (for polling)
PLINPUT_API const PLCore::List < Control * > &	GetControls () const
	Get all controls of the controller.
PLINPUT_API const PLCore::List < Button * > &	GetButtons () const
	Get all buttons.
PLINPUT_API const PLCore::List < Axis * > &	GetAxes () const
	Get all axes.
PLINPUT_API Control *	GetControl (const PLCore::String &sName) const
	Get control with a specific name.
PLINPUT_API char	GetChar ()
	Get character of last button that was hit.
PLINPUT_API const PLCore::List < Connection * > &	GetConnections ()
	Get connections.
PLINPUT_API void	Connect (const PLCore::String &sControl, Control *pControl, float fScale=1.0f)
	Connect to another controller.
PLINPUT_API void	ConnectAll (Controller *pController, const PLCore::String &sPrefixOut, const PLCore::String &sPrefixIn)
	Connect to another controller.
PLINPUT_API void	Disconnect (Connection *pConnection)
	Disconnect connection.
virtual PLINPUT_API void	Update ()
	Update device once per frame.
virtual PLINPUT_API void	UpdateOutputControl (Control *pControl)
	Update output controls (LEDs, effects etc.)
Protected Member Functions
PLINPUT_API void	AddControl (Control *pControl)
	Add control.
PLINPUT_API void	InformControl (Control *pControl)
	Inform controller that a control has changed it's state.
PLINPUT_API void	InitControlList (EControlType nType) const
	Init control list.
PLINPUT_API void	AddConnection (Connection *pConnection)
	Add connection.
PLINPUT_API void	RemoveConnection (Connection *pConnection)
	Remove connection.
Protected Attributes
EControllerType	m_nType
PLCore::String	m_sName
PLCore::String	m_sDescription
bool	m_bConfirmed
bool	m_bActive
bool	m_bChanged
PLCore::List< Control * >	m_lstControls
PLCore::HashMap < PLCore::String, Control * >	m_mapControls
PLCore::List< Button * >	m_lstButtons
PLCore::List< Axis * >	m_lstAxes
char	m_nChar
PLCore::List< Connection * >	m_lstConnections

Detailed Description

Input controller.

Remarks:: A controller represents an input device, which can either be a real device like e.g. a mouse or joystick, or a virtual device that is used to map real input devices to virtual axes and keys. A controller consists of a list of controls, e.g. buttons or axes and provides methods to obtain the status.

Constructor & Destructor Documentation

PLINPUT_API PLInput::Controller::Controller	(	EControllerType	nType,
		const PLCore::String &	sName,
		const PLCore::String &	sDescription
	)

Constructor.

Parameters:

[in]	nType	Controller type
[in]	sName	Controller name
[in]	sDescription	Controller description

virtual PLINPUT_API PLInput::Controller::~Controller ( ) [virtual]

Destructor.

Member Function Documentation

PLINPUT_API EControllerType PLInput::Controller::GetType ( ) const

Get controller type.

Returns:: Controller type

PLINPUT_API PLCore::String PLInput::Controller::GetName ( ) const

Get controller name.

Returns:: Name

PLINPUT_API PLCore::String PLInput::Controller::GetDescription ( ) const

Get controller description.

Returns:: Description

PLINPUT_API bool PLInput::Controller::GetActive ( ) const

Check if controller is active.

Returns:: 'true' if controller is active, else 'false'

Remarks:: If a controller is active, it sends out signals when the state of it's controls has changed. If a controller is not active, no state changes will occur and all input events from connected devices will be discarded.

PLINPUT_API void PLInput::Controller::SetActive ( bool bActive )

Activate or deactivate controller.

Parameters:

[in] bActive 'true' if controller is active, else 'false'

Remarks:: Virtual controllers can be activated or deactivated, real input devices are always active and can not be deactivated.

PLINPUT_API bool PLInput::Controller::HasChanged ( ) const

Check if the controller's state has changed (for polling)

Returns:: 'true', if the state has changed, else 'false'

PLINPUT_API const PLCore::List<Control*>& PLInput::Controller::GetControls ( ) const

Get all controls of the controller.

Returns:: List of controls

PLINPUT_API const PLCore::List<Button*>& PLInput::Controller::GetButtons ( ) const

Get all buttons.

Returns:: List of buttons

PLINPUT_API const PLCore::List<Axis*>& PLInput::Controller::GetAxes ( ) const

Get all axes.

Returns:: List of axes

PLINPUT_API Control* PLInput::Controller::GetControl ( const PLCore::String & sName ) const

Get control with a specific name.

Parameters:

[in] sName Name of control

Returns:: Control, or a null pointer if no control with that name could be found

PLINPUT_API char PLInput::Controller::GetChar ( )

Get character of last button that was hit.

Returns:: Button character (ASCII), can be '\0'

Remarks:: This function returns the character code of the last button that was hit (not pressed!). The character will then be reset to '\0', so the next call will return '\0', until a new button is first pressed and then released.

PLINPUT_API const PLCore::List<Connection*>& PLInput::Controller::GetConnections ( )

Get connections.

Returns:: List of connections (both incoming and outgoing), do not destroy the returned connection instances!

Remarks:: To determine whether a connection is incoming or outgoing, you can check e.g. GetOutputControl()->GetController() == this or something similar.

PLINPUT_API void PLInput::Controller::Connect	(	const PLCore::String &	sControl,
		Control *	pControl,
		float	fScale = `1.0f`
	)

Connect to another controller.

Parameters:

[in]	sControl	Name of control of this controller (output control)
[in]	pControl	Pointer to control (input control), shouldn't be a null pointer (but a null pointer is caught internally)
[in]	fScale	Scale factor

PLINPUT_API void PLInput::Controller::ConnectAll	(	Controller *	pController,
		const PLCore::String &	sPrefixOut,
		const PLCore::String &	sPrefixIn
	)

Connect to another controller.

Parameters:

[in]	pController	Pointer to controller containing the input controls, shouldn't be a null pointer (but a null pointer is caught internally)
[in]	sPrefixOut	Prefix for controls of this controller
[in]	sPrefixIn	Prefix for controls of the other controller

Remarks:: This connects all controls of the input controller (pController) to the controls of the output controller (this), if their names are equal, e.g. pController->"Left" will be connected to this->"Left". You can also provide a prefix for either or both sides, e.g.: ConnectAll(pOtherController, "", "Camera") will connect pController->"CameraLeft" to this->"Left".

PLINPUT_API void PLInput::Controller::Disconnect ( Connection * pConnection )

Disconnect connection.

Parameters:

[in] pConnection Connection (must be valid!), on successful disconnect, the given "pConnection" instance becomes invalid

virtual PLINPUT_API void PLInput::Controller::Update ( ) [virtual]

Update device once per frame.

Remarks:: This function can be used e.g. to reset any data of a device once per frame. Usually this is not needed, but some devices (e.g. RawInput mice etc.) need to reset their data once per frame.

Note:

The default implementation is empty

Reimplemented in PLInput::Keyboard, PLInput::Joystick, PLInput::SensorManager, PLInput::Mouse, and PLInput::SplitTouchPad.

virtual PLINPUT_API void PLInput::Controller::UpdateOutputControl ( Control * pControl ) [virtual]

Update output controls (LEDs, effects etc.)

Parameters:

[in] pControl Output control that has been changed, must be valid!

Remarks:: This function is called whenever an output control such as LED or Effect has been changed. A device should use this function to update the specific control state on the device (or update all output controls at the same time)

Note:
