PLCore::DynEvent Class Reference

Virtual base class for events. More...

#include <DynEvent.h>

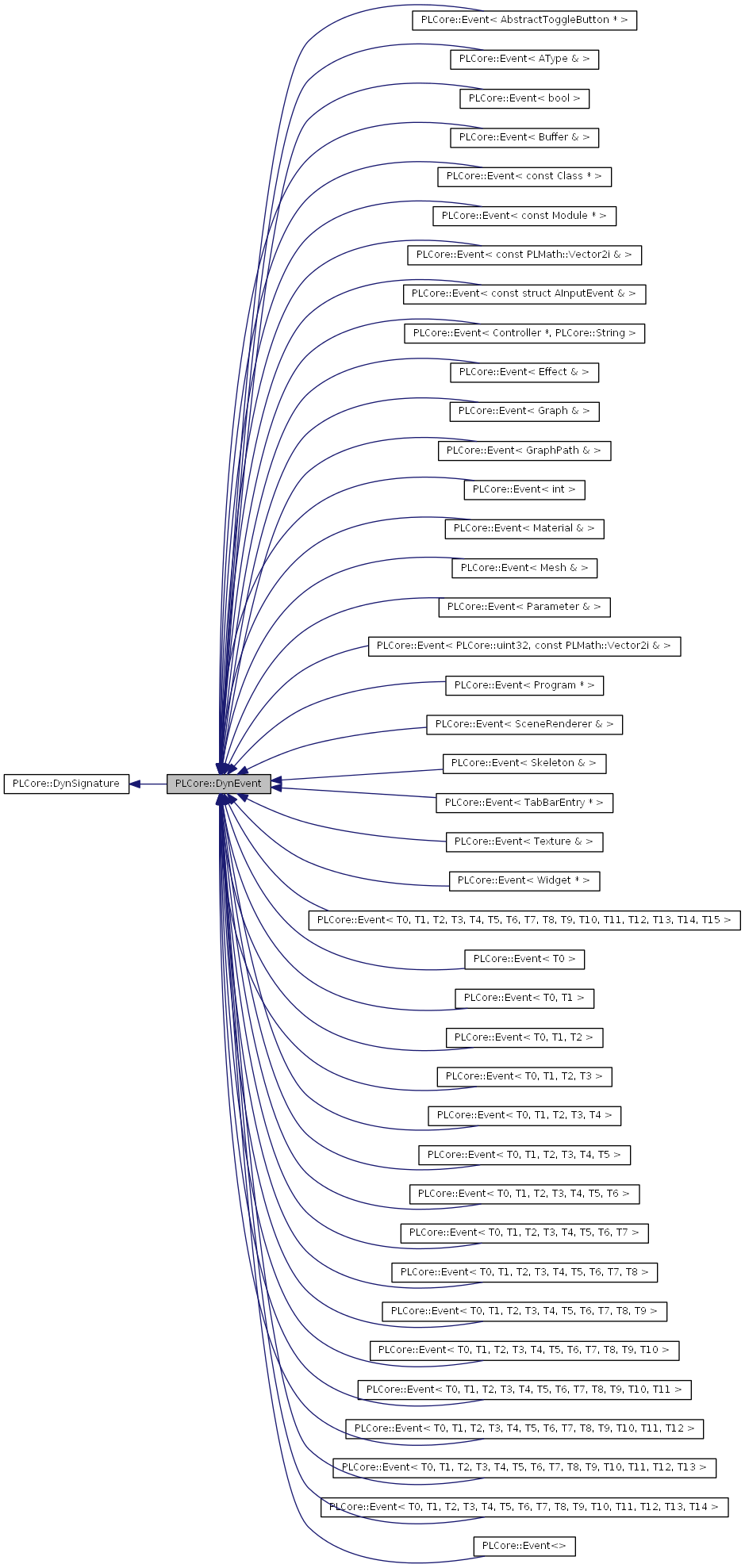

Inheritance diagram for PLCore::DynEvent:

List of all members.

Public Types
typedef Signature< void, DynParams &, void * > ::FuncType	FUNC
Public Member Functions
PLCORE_API	DynEvent ()
	Constructor.
virtual PLCORE_API	~DynEvent ()
	Destructor.
PLCORE_API void	Connect (DynEventHandler &cHandler)
	Connect event handler to the event.
PLCORE_API void	Disconnect (DynEventHandler &cHandler)
	Disconnect event handler from the event.
uint32	GetNumOfConnects () const
	Return the number of connections.
virtual PLCORE_API const EventDesc *	GetDesc () const
	Get event descriptor.
virtual PLCORE_API DynEventHandler *	CreateGenericEventHandler (const FUNC &pFunc, void *pUserData=nullptr) const
	Create a generic event handler which is compatible with this dynamic event.
virtual PLCORE_API void	Emit (DynParams &cParams) const
	Emit event.
virtual PLCORE_API void	Emit (const DynParams &cParams) const
	Emit event.
virtual PLCORE_API void	Emit (const String &sParams) const
	Emit event.
virtual PLCORE_API void	Emit (const XmlElement &cElement) const
	Emit event.
Protected Attributes
SimpleList< DynEventHandler * >	m_lstHandlers

---

Detailed Description

Virtual base class for events.

Remarks:

This is the virtual base class to access events dynamically.

Note:

• Implementation of the observer design pattern (this class is the subject/observable, the source)

---

Member Typedef Documentation

typedef Signature<void, DynParams&, void*>::FuncType PLCore::DynEvent::FUNC

---

Constructor & Destructor Documentation

PLCORE_API PLCore::DynEvent::DynEvent

(

)

Constructor.

virtual PLCORE_API PLCore::DynEvent::~DynEvent

(

)

[virtual]

Destructor.

---

Member Function Documentation

PLCORE_API void PLCore::DynEvent::Connect

(

DynEventHandler &

cHandler

)

Connect event handler to the event.

Parameters:

[in]

cHandler

Event handler

PLCORE_API void PLCore::DynEvent::Disconnect

(

DynEventHandler &

cHandler

)

Disconnect event handler from the event.

Parameters:

[in]

cHandler

Event handler

uint32 PLCore::DynEvent::GetNumOfConnects

(

)

const [inline]

Return the number of connections.

Returns:

The number of connections

Note:

• Don't use this method within performance critical situations because due internal implementation, this request has a linear, not constant runtime!

virtual PLCORE_API const EventDesc* PLCore::DynEvent::GetDesc

(

)

const [virtual]

Get event descriptor.

Returns:

Descriptor (can be a null pointer)

virtual PLCORE_API DynEventHandler* PLCore::DynEvent::CreateGenericEventHandler	(	const FUNC &	pFunc,
		void *	pUserData = nullptr
	)		const [virtual]

Create a generic event handler which is compatible with this dynamic event.

Parameters:

[in]	pFunc	Function to be called by the dynamic event handler
[in]	pUserData	Optional pointer to user data to pass on to the given generic function when the event was emitted, can be a null pointer

Returns:

The generic event handler which is compatible with this dynamic event, null pointer on error (delete the created instance if you no longer need it)

Note:

• This method just creates an instance of the generic event handler and does not automatically connect it with this dynamic event
• Use typed instead of generic event handlers whenever possible, this method only exists for situations were no type information is available at compile time

Reimplemented in PLCore::Event<>, PLCore::Event< T0 >, PLCore::Event< T0, T1 >, PLCore::Event< T0, T1, T2 >, PLCore::Event< T0, T1, T2, T3 >, PLCore::Event< T0, T1, T2, T3, T4 >, PLCore::Event< T0, T1, T2, T3, T4, T5 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11, T12 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11, T12, T13 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11, T12, T13, T14 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15 >, PLCore::Event< Effect & >, PLCore::Event< AbstractToggleButton * >, PLCore::Event< const PLMath::Vector2i & >, PLCore::Event< Material & >, PLCore::Event< const Class * >, PLCore::Event< Buffer & >, PLCore::Event< const Module * >, PLCore::Event< int >, PLCore::Event< Parameter & >, PLCore::Event< GraphPath & >, PLCore::Event< SceneRenderer & >, PLCore::Event< Widget * >, PLCore::Event< PLCore::uint32, const PLMath::Vector2i & >, PLCore::Event< const struct AInputEvent & >, PLCore::Event< Program * >, PLCore::Event< Graph & >, PLCore::Event< Mesh & >, PLCore::Event< AType & >, PLCore::Event< Skeleton & >, PLCore::Event< bool >, PLCore::Event< Texture & >, PLCore::Event< Controller *, PLCore::String >, and PLCore::Event< TabBarEntry * >.

virtual PLCORE_API void PLCore::DynEvent::Emit

(

DynParams &

cParams

)

const [virtual]

Emit event.

Parameters:

[in]

cParams

Parameters

Reimplemented in PLCore::Event<>, PLCore::Event< T0 >, PLCore::Event< T0, T1 >, PLCore::Event< T0, T1, T2 >, PLCore::Event< T0, T1, T2, T3 >, PLCore::Event< T0, T1, T2, T3, T4 >, PLCore::Event< T0, T1, T2, T3, T4, T5 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11, T12 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11, T12, T13 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11, T12, T13, T14 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15 >, PLCore::Event< Effect & >, PLCore::Event< AbstractToggleButton * >, PLCore::Event< const PLMath::Vector2i & >, PLCore::Event< Material & >, PLCore::Event< const Class * >, PLCore::Event< Buffer & >, PLCore::Event< const Module * >, PLCore::Event< int >, PLCore::Event< Parameter & >, PLCore::Event< GraphPath & >, PLCore::Event< SceneRenderer & >, PLCore::Event< Widget * >, PLCore::Event< PLCore::uint32, const PLMath::Vector2i & >, PLCore::Event< const struct AInputEvent & >, PLCore::Event< Program * >, PLCore::Event< Graph & >, PLCore::Event< Mesh & >, PLCore::Event< AType & >, PLCore::Event< Skeleton & >, PLCore::Event< bool >, PLCore::Event< Texture & >, PLCore::Event< Controller *, PLCore::String >, and PLCore::Event< TabBarEntry * >.

virtual PLCORE_API void PLCore::DynEvent::Emit

(

const DynParams &

cParams

)

const [virtual]

Emit event.

Parameters:

[in]

cParams

Parameters

Reimplemented in PLCore::Event<>, PLCore::Event< T0 >, PLCore::Event< T0, T1 >, PLCore::Event< T0, T1, T2 >, PLCore::Event< T0, T1, T2, T3 >, PLCore::Event< T0, T1, T2, T3, T4 >, PLCore::Event< T0, T1, T2, T3, T4, T5 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11, T12 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11, T12, T13 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11, T12, T13, T14 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15 >, PLCore::Event< Effect & >, PLCore::Event< AbstractToggleButton * >, PLCore::Event< const PLMath::Vector2i & >, PLCore::Event< Material & >, PLCore::Event< const Class * >, PLCore::Event< Buffer & >, PLCore::Event< const Module * >, PLCore::Event< int >, PLCore::Event< Parameter & >, PLCore::Event< GraphPath & >, PLCore::Event< SceneRenderer & >, PLCore::Event< Widget * >, PLCore::Event< PLCore::uint32, const PLMath::Vector2i & >, PLCore::Event< const struct AInputEvent & >, PLCore::Event< Program * >, PLCore::Event< Graph & >, PLCore::Event< Mesh & >, PLCore::Event< AType & >, PLCore::Event< Skeleton & >, PLCore::Event< bool >, PLCore::Event< Texture & >, PLCore::Event< Controller *, PLCore::String >, and PLCore::Event< TabBarEntry * >.

virtual PLCORE_API void PLCore::DynEvent::Emit

(

const String &

sParams

)

const [virtual]

Emit event.

Parameters:

[in]

sParams

Parameters as string

Reimplemented in PLCore::Event<>, PLCore::Event< T0 >, PLCore::Event< T0, T1 >, PLCore::Event< T0, T1, T2 >, PLCore::Event< T0, T1, T2, T3 >, PLCore::Event< T0, T1, T2, T3, T4 >, PLCore::Event< T0, T1, T2, T3, T4, T5 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11, T12 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11, T12, T13 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11, T12, T13, T14 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15 >, PLCore::Event< Effect & >, PLCore::Event< AbstractToggleButton * >, PLCore::Event< const PLMath::Vector2i & >, PLCore::Event< Material & >, PLCore::Event< const Class * >, PLCore::Event< Buffer & >, PLCore::Event< const Module * >, PLCore::Event< int >, PLCore::Event< Parameter & >, PLCore::Event< GraphPath & >, PLCore::Event< SceneRenderer & >, PLCore::Event< Widget * >, PLCore::Event< PLCore::uint32, const PLMath::Vector2i & >, PLCore::Event< const struct AInputEvent & >, PLCore::Event< Program * >, PLCore::Event< Graph & >, PLCore::Event< Mesh & >, PLCore::Event< AType & >, PLCore::Event< Skeleton & >, PLCore::Event< bool >, PLCore::Event< Texture & >, PLCore::Event< Controller *, PLCore::String >, and PLCore::Event< TabBarEntry * >.

virtual PLCORE_API void PLCore::DynEvent::Emit

(

const XmlElement &

cElement

)

const [virtual]

Emit event.

Parameters:

[in]

cElement

Parameters as XML

Reimplemented in PLCore::Event<>, PLCore::Event< T0 >, PLCore::Event< T0, T1 >, PLCore::Event< T0, T1, T2 >, PLCore::Event< T0, T1, T2, T3 >, PLCore::Event< T0, T1, T2, T3, T4 >, PLCore::Event< T0, T1, T2, T3, T4, T5 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11, T12 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11, T12, T13 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11, T12, T13, T14 >, PLCore::Event< T0, T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15 >, PLCore::Event< Effect & >, PLCore::Event< AbstractToggleButton * >, PLCore::Event< const PLMath::Vector2i & >, PLCore::Event< Material & >, PLCore::Event< const Class * >, PLCore::Event< Buffer & >, PLCore::Event< const Module * >, PLCore::Event< int >, PLCore::Event< Parameter & >, PLCore::Event< GraphPath & >, PLCore::Event< SceneRenderer & >, PLCore::Event< Widget * >, PLCore::Event< PLCore::uint32, const PLMath::Vector2i & >, PLCore::Event< const struct AInputEvent & >, PLCore::Event< Program * >, PLCore::Event< Graph & >, PLCore::Event< Mesh & >, PLCore::Event< AType & >, PLCore::Event< Skeleton & >, PLCore::Event< bool >, PLCore::Event< Texture & >, PLCore::Event< Controller *, PLCore::String >, and PLCore::Event< TabBarEntry * >.

---

Member Data Documentation

SimpleList<DynEventHandler*> PLCore::DynEvent::m_lstHandlers [protected]

List of event handlers

---

The documentation for this class was generated from the following files:

• DynEvent.h
• DynEvent.inl
