Abstract class implementation base class. More...

#include <ClassImpl.h>

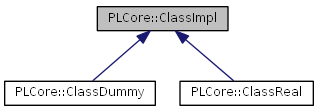

Inheritance diagram for PLCore::ClassImpl:

Public Member Functions
Class *	GetClass () const
	Return the pointer to the owner class instance wrapping this class implementation.
Protected Member Functions
PLCORE_API	ClassImpl (uint32 nModuleID, const String &sName, const String &sDescription, const String &sNamespace, const String &sBaseClass)
	Constructor.
virtual PLCORE_API	~ClassImpl ()
	Destructor.
PLCORE_API const Module *	GetModule () const
	Get module the class belongs to.
String	GetClassName () const
	Get full class name (with namespace)
String	GetBaseClassName () const
	Get full name of base class (with namespace)
String	GetName () const
	Get class name (without namespace)
String	GetDescription () const
	Get class description.
String	GetNamespace () const
	Get namespace.
PLCORE_API const Class *	GetBaseClass () const
	Get base class.
PLCORE_API bool	IsDerivedFrom (const Class &cBaseClass) const
	Check if class is derived from another class.
PLCORE_API bool	IsDerivedFrom (const String &sBaseClass) const
	Check if class is derived from another class.
const HashMap< String, String > &	GetProperties () const
	Get properties.
PLCORE_API void	AddProperty (const String &sName, const String &sValue)
	Add property.
virtual bool	IsDummy () const =0
	Return whether or not the class implementation is a dummy used for delayed shared library loading.
virtual void	InitClass () const =0
	Initialize class and class members.
virtual void	DeInitClass () const =0
	De-Initialize class and class members.
virtual const List< VarDesc * > &	GetAttributes () const =0
	Get attributes.
virtual const VarDesc *	GetAttribute (const String &sName) const =0
	Get attribute.
virtual const List< FuncDesc * > &	GetMethods () const =0
	Get methods.
virtual const FuncDesc *	GetMethod (const String &sName) const =0
	Get method.
virtual const List< EventDesc * > &	GetSignals () const =0
	Get signals.
virtual const EventDesc *	GetSignal (const String &sName) const =0
	Get signal.
virtual const List < EventHandlerDesc * > &	GetSlots () const =0
	Get slot.
virtual const EventHandlerDesc *	GetSlot (const String &sName) const =0
	Get slot.
virtual bool	HasConstructor () const =0
	Check if class has any constructors.
virtual bool	HasDefaultConstructor () const =0
	Check if class has a default constructor.
virtual const List < ConstructorDesc * > &	GetConstructors () const =0
	Get constructors.
virtual const ConstructorDesc *	GetConstructor (const String &sName) const =0
	Get constructor.
virtual Object *	Create () const =0
	Create object by using the default constructor.
virtual Object *	Create (const DynParams &cParams) const =0
	Create object by using typed constructor parameters in order to identity the constructor automatically.
virtual Object *	Create (const String &sName, const DynParams &cParams) const =0
	Create object by using a given constructor name and typed constructor parameters.
virtual Object *	Create (const String &sName, const String &sParams) const =0
	Create object by using a given constructor name and typeless constructor parameters.
Protected Attributes
Class *	m_pClass
String	m_sName
String	m_sNamespace
String	m_sClassName
String	m_sDescription
String	m_sBaseClass
HashMap< String, String >	m_mapOwnProperties
uint32	m_nModuleID
bool	m_bInitialized
const Class *	m_pBaseClass
HashMap< String, String >	m_mapProperties

Detailed Description

Abstract class implementation base class.

Note:

Implementation of the bridge design pattern, this class is the implementor of the 'Class' abstraction

Constructor & Destructor Documentation

PLCORE_API PLCore::ClassImpl::ClassImpl	(	uint32	nModuleID,
		const String &	sName,
		const String &	sDescription,
		const String &	sNamespace,
		const String &	sBaseClass
	)		`[protected]`

Constructor.

Parameters:

[in]	nModuleID	ID of owner module
[in]	sName	Name
[in]	sDescription	Description
[in]	sNamespace	Namespace
[in]	sBaseClass	Base class

virtual PLCORE_API PLCore::ClassImpl::~ClassImpl ( ) [protected, virtual]

Destructor.

Member Function Documentation

Class * PLCore::ClassImpl::GetClass ( ) const [inline]

Return the pointer to the owner class instance wrapping this class implementation.

Returns:: Pointer to the owner class instance (should never be a null pointer, unless something is *terribly* wrong ;-) )

PLCORE_API const Module* PLCore::ClassImpl::GetModule ( ) const [protected]

Get module the class belongs to.

Returns:: Module (always valid)

String PLCore::ClassImpl::GetClassName ( ) const [inline, protected]

Get full class name (with namespace)

Returns:: Name of class and namespace

String PLCore::ClassImpl::GetBaseClassName ( ) const [inline, protected]

Get full name of base class (with namespace)

Returns:: Name of base class and namespace

String PLCore::ClassImpl::GetName ( ) const [inline, protected]

Get class name (without namespace)

Returns:: Name of class

String PLCore::ClassImpl::GetDescription ( ) const [inline, protected]

Get class description.

Returns:: Description

String PLCore::ClassImpl::GetNamespace ( ) const [inline, protected]

Get namespace.

Returns:: Namespace

PLCORE_API const Class* PLCore::ClassImpl::GetBaseClass ( ) const [protected]

Get base class.

Returns:: Pointer to base class (can be a null pointer)

PLCORE_API bool PLCore::ClassImpl::IsDerivedFrom ( const Class & cBaseClass ) const [protected]

Check if class is derived from another class.

Parameters:

[in] cBaseClass Base class

Returns:: 'true' if class is derived from given base class, else 'false'

PLCORE_API bool PLCore::ClassImpl::IsDerivedFrom ( const String & sBaseClass ) const [protected]

Check if class is derived from another class.

Parameters:

[in] sBaseClass Base class name (with namespace)

Returns:: 'true' if class is derived from given base class, else 'false'

const HashMap< String, String > & PLCore::ClassImpl::GetProperties ( ) const [inline, protected]

Get properties.

Returns:: Hash map of properties (name -> value)

Remarks:: A property is a name/value pair of strings, that can be assigned to a class. Use this to transport additional information for your class, e.g. "PluginType" -> "Widget" "FileFormats" -> "avi mpg mp4"

PLCORE_API void PLCore::ClassImpl::AddProperty	(	const String &	sName,
		const String &	sValue
	)		`[protected]`

Add property.

Parameters:

[in]	sName	Property name
[in]	sValue	Property value

virtual bool PLCore::ClassImpl::IsDummy ( ) const [protected, pure virtual]

Return whether or not the class implementation is a dummy used for delayed shared library loading.

Returns:: 'true' if the class implementation is a dummy used for delayed shared library loading, else 'false'

Implemented in PLCore::ClassReal, and PLCore::ClassDummy.

virtual void PLCore::ClassImpl::InitClass ( ) const [protected, pure virtual]

Initialize class and class members.

Remarks:: This function is called automatically when it is necessary, e.g. the first time any members are being accessed. It will search for the base class of the class and initialize all members. If later a class is changed (e.g. a new member is registered at one of the base classes), that class and all derived classes will destroy their information and must be initialized again.

Implemented in PLCore::ClassReal, and PLCore::ClassDummy.

virtual void PLCore::ClassImpl::DeInitClass ( ) const [protected, pure virtual]

De-Initialize class and class members.

Remarks:: This function destroys all data about the class and it's members. See InitClass() for more information about why this is necessary and when.

Implemented in PLCore::ClassReal, and PLCore::ClassDummy.

virtual const List<VarDesc*>& PLCore::ClassImpl::GetAttributes ( ) const [protected, pure virtual]

Get attributes.

Returns:: List of attribute descriptors

Implemented in PLCore::ClassReal, and PLCore::ClassDummy.

virtual const VarDesc* PLCore::ClassImpl::GetAttribute ( const String & sName ) const [protected, pure virtual]

Get attribute.

Parameters:

[in] sName Attribute name

Returns:: Attribute descriptor (can be a null pointer, if no member with that name could be found)

Implemented in PLCore::ClassReal, and PLCore::ClassDummy.

virtual const List<FuncDesc*>& PLCore::ClassImpl::GetMethods ( ) const [protected, pure virtual]

Get methods.

Returns:: List of method descriptors

Implemented in PLCore::ClassReal, and PLCore::ClassDummy.

virtual const FuncDesc* PLCore::ClassImpl::GetMethod ( const String & sName ) const [protected, pure virtual]

Get method.

Parameters:

[in] sName Method name

Returns:: Method descriptor (can be a null pointer, if no member with that name could be found)

Implemented in PLCore::ClassReal, and PLCore::ClassDummy.

virtual const List<EventDesc*>& PLCore::ClassImpl::GetSignals ( ) const [protected, pure virtual]

Get signals.

Returns:: List of signal descriptors

Implemented in PLCore::ClassReal, and PLCore::ClassDummy.

virtual const EventDesc* PLCore::ClassImpl::GetSignal ( const String & sName ) const [protected, pure virtual]

Get signal.

Parameters:

[in] sName Signal name

Returns:: Signal descriptor (can be a null pointer, if no member with that name could be found)

Implemented in PLCore::ClassReal, and PLCore::ClassDummy.

virtual const List<EventHandlerDesc*>& PLCore::ClassImpl::GetSlots ( ) const [protected, pure virtual]

Get slot.

Returns:: List of slot descriptors

Implemented in PLCore::ClassReal, and PLCore::ClassDummy.

virtual const EventHandlerDesc* PLCore::ClassImpl::GetSlot ( const String & sName ) const [protected, pure virtual]

Get slot.

Parameters:

[in] sName Slot name

Returns:: Slot descriptor (can be a null pointer, if no member with that name could be found)

Implemented in PLCore::ClassReal, and PLCore::ClassDummy.

virtual bool PLCore::ClassImpl::HasConstructor ( ) const [protected, pure virtual]

Check if class has any constructors.

Returns:: 'true' if class has at least one constructor, else 'false'

Implemented in PLCore::ClassReal, and PLCore::ClassDummy.

virtual bool PLCore::ClassImpl::HasDefaultConstructor ( ) const [protected, pure virtual]

Check if class has a default constructor.

Returns:: 'true' if class has a default constructor, else 'false'

Implemented in PLCore::ClassReal, and PLCore::ClassDummy.

virtual const List<ConstructorDesc*>& PLCore::ClassImpl::GetConstructors ( ) const [protected, pure virtual]

Get constructors.

Returns:: List of constructor descriptors

Implemented in PLCore::ClassReal, and PLCore::ClassDummy.

virtual const ConstructorDesc* PLCore::ClassImpl::GetConstructor ( const String & sName ) const [protected, pure virtual]

Get constructor.

Parameters:

[in] sName Constructor name

Returns:: Constructor descriptor (can be a null pointer, if no member with that name could be found)

Implemented in PLCore::ClassReal, and PLCore::ClassDummy.

virtual Object* PLCore::ClassImpl::Create ( ) const [protected, pure virtual]

Create object by using the default constructor.

Returns:: Pointer to created object (can be a null pointer)

Remarks:: This function will call the default constructor of the class. If the class has no default constructor, the function will fail and return a null pointer.

Implemented in PLCore::ClassReal, and PLCore::ClassDummy.

virtual Object* PLCore::ClassImpl::Create ( const DynParams & cParams ) const [protected, pure virtual]

Create object by using typed constructor parameters in order to identity the constructor automatically.

Parameters:

[in] cParams Constructor parameters

Returns:: Pointer to created object (can be a null pointer)

Remarks:: This function will search for a constructor that matches the signature of the given parameters. If no such constructor can be found, the function will fail and return a null pointer.

Implemented in PLCore::ClassReal, and PLCore::ClassDummy.

virtual Object* PLCore::ClassImpl::Create	(	const String &	sName,
		const DynParams &	cParams
	)		const `[protected, pure virtual]`

Create object by using a given constructor name and typed constructor parameters.

Parameters:

[in]	sName	Constructor name
[in]	cParams	Constructor parameters

Returns:: Pointer to created object (can be a null pointer)

Remarks:: This function will search for a constructor with the specified name. If no such constructor can be found, or the given parameters do not match the signature of the constructor, the function will fail and return a null pointer.

Implemented in PLCore::ClassReal, and PLCore::ClassDummy.

virtual Object* PLCore::ClassImpl::Create	(	const String &	sName,
		const String &	sParams
	)		const `[protected, pure virtual]`

Create object by using a given constructor name and typeless constructor parameters.

Parameters:

[in]	sName	Constructor name
[in]	sParams	Constructor parameters

Returns:: Pointer to created object (can be a null pointer, destroy the returned instance when you no longer need it)

Remarks:: This function will search for a constructor with the specified name. If no such constructor can be found, the function will fail and return a null pointer.

Implemented in PLCore::ClassReal, and PLCore::ClassDummy.
