Abstract scene query class. More...
#include <SceneQuery.h>

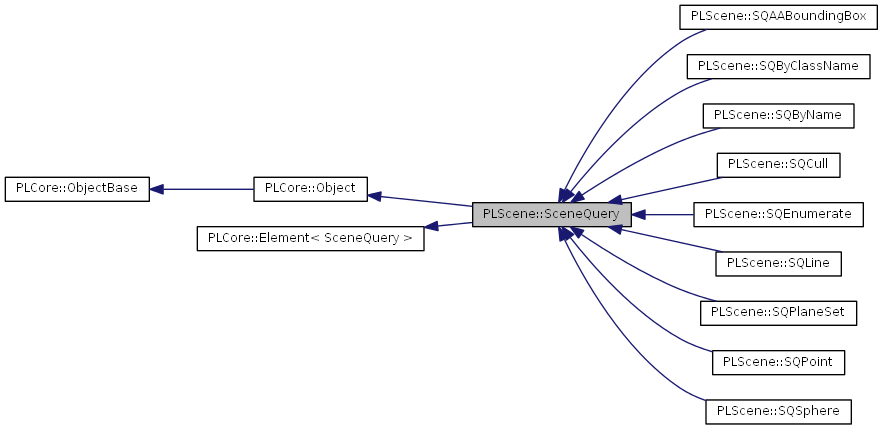

Inheritance diagram for PLScene::SceneQuery:
Public Types | |
| enum | EFlags { Recursive = 1<<0, StopQuery = 1<<1 } |
| Flags. More... | |
Public Member Functions | |
| pl_class (PLS_RTTI_EXPORT, SceneQuery,"PLScene", PLCore::Object,"Abstract scene query class") pl_signal_2(SignalSceneNode | |
| PLS_API SceneContext * | GetSceneContext () const |
| Returns the scene context the scene query is in. | |
| SceneContainer & | GetSceneContainer () const |
| Returns the scene container this query operates on. | |
| PLCore::uint32 | GetFlags () const |
| Returns the flags. | |
| void | SetFlags (PLCore::uint32 nFlags=Recursive) |
| Sets the flags. | |
| void | Stop () |
| Stops the currently running query. | |
| virtual bool | PerformQuery ()=0 |
| Performs the query. | |
Public Attributes | |
| SceneQuery SceneNode A scene node was touched during the query Event causing scene query and found scene node as | parameters |
Protected Member Functions | |
| PLS_API | SceneQuery () |
| Constructor. | |
| virtual PLS_API | ~SceneQuery () |
| Destructor. | |
Protected Attributes | |
| PLCore::uint32 | m_nFlags |
Detailed Description
Abstract scene query class.
- Remarks:
- The scene query is operating on a scene container. For instance there can be a query to perform volume checks against the scene or a query rendering the scene. This process can be quite efficient if the scene container provides a good scene hierarchy. Events will inform about the results.
- Note:
- Derived classes should use a 'SQ'-prefix (example: SQLine)
Member Enumeration Documentation
Flags.
- Enumerator:
Recursive Take sub scene containers into account
StopQuery Stop the currently running query (removed within PerformQuery() on start automatically)
Reimplemented in PLScene::SQByClassName.
Constructor & Destructor Documentation
| PLS_API PLScene::SceneQuery::SceneQuery | ( | ) | [protected] |
Constructor.
| virtual PLS_API PLScene::SceneQuery::~SceneQuery | ( | ) | [protected, virtual] |
Destructor.
Member Function Documentation
| PLScene::SceneQuery::pl_class | ( | PLS_RTTI_EXPORT | , |
| SceneQuery | , | ||
| "PLScene" | , | ||
| PLCore::Object | , | ||
| "Abstract scene query class" | |||
| ) |
| PLS_API SceneContext* PLScene::SceneQuery::GetSceneContext | ( | ) | const |
Returns the scene context the scene query is in.
- Returns:
- The scene context the scene query is in, can but shouldn't be a null pointer
| SceneContainer & PLScene::SceneQuery::GetSceneContainer | ( | ) | const [inline] |
Returns the scene container this query operates on.
- Returns:
- The scene container this query operates on
| PLCore::uint32 PLScene::SceneQuery::GetFlags | ( | ) | const [inline] |
Returns the flags.
- Returns:
- Flags (see EFlags)
| void PLScene::SceneQuery::SetFlags | ( | PLCore::uint32 | nFlags = Recursive | ) | [inline] |
Sets the flags.
- Parameters:
-
[in] nFlags Flags (see EFlags)
| void PLScene::SceneQuery::Stop | ( | ) | [inline] |
Stops the currently running query.
| virtual bool PLScene::SceneQuery::PerformQuery | ( | ) | [pure virtual] |
Performs the query.
- Note:
- Before you start the query you have to do some settings within the derived query classes first. (for instance setting the query volume)
- Returns:
- 'true' if the query was cancelled by the user, else 'false'
Implemented in PLScene::SQCull, PLScene::SQByClassName, PLScene::SQByName, PLScene::SQAABoundingBox, PLScene::SQSphere, PLScene::SQLine, PLScene::SQPlaneSet, PLScene::SQPoint, and PLScene::SQEnumerate.
Member Data Documentation
| SceneQuery SceneNode A scene node was touched during the query Event causing scene query and found scene node as PLScene::SceneQuery::parameters |
PLCore::uint32 PLScene::SceneQuery::m_nFlags [protected] |
Flags (see EFlags)
The documentation for this class was generated from the following files:
