An mesh is a special scene node that has a 3D mesh attached to it by default. More...

#include <SNMesh.h>

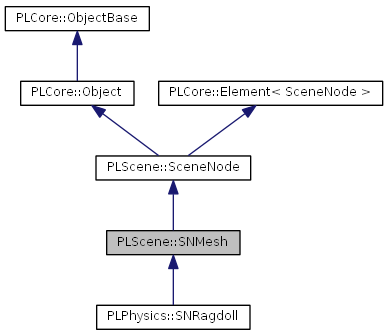

Inheritance diagram for PLScene::SNMesh:

[legend]

Public Types
enum	EFlags { NoAutomaticBoundingBox = 1<<10, LoadAtOnce = 1<<11, DynamicMesh = 1<<12, GenerateStrips = 1<<13, CalculateNormals = 1<<14, CalculateTSVs = 1<<15 }
	Scene node flags (SceneNode flags extension) More...
Public Member Functions
	pl_enum (EFlags) pl_enum_base(SceneNode
	Scene node debug flags (SceneNode debug flags extension)
PLS_API PLCore::String	GetSkin () const
PLS_API void	SetSkin (const PLCore::String &sValue)
virtual PLS_API void	SetFlags (PLCore::uint32 nValue)
PLS_API	SNMesh ()
	Default constructor.
virtual PLS_API	~SNMesh ()
	Destructor.
PLS_API bool	LoadMesh (const PLCore::String &sFilename, const PLCore::String &sParams="", const PLCore::String &sMethod="")
	Loads a mesh.
PLS_API bool	LoadSkin (const PLCore::String &sFilename, const PLCore::String &sParams="", const PLCore::String &sMethod="")
	Loads a skin.
PLS_API bool	SaveSkin (const PLCore::String &sFilename, const PLCore::String &sParams="", const PLCore::String &sMethod="")
	Saves the skin.
PLS_API bool	UnloadMesh ()
	Unloads the current mesh.
PLS_API bool	GetSkeletonJointWorldPosition (const PLCore::String &sJointName, PLMath::Vector3 &vPosition)
virtual PLS_API PLMesh::MeshHandler *	GetMeshHandler () override
	Returns a pointer to the mesh handler.
virtual PLS_API void	DrawDebug (PLRenderer::Renderer &cRenderer, const VisNode *pVisNode=nullptr) override
	This function is called when the debug parts of the scene are drawn.
Protected Member Functions
virtual PLS_API void	MeshInitFunction ()
	This function is called after the mesh handler loads a mesh.
virtual PLS_API void	MeshDeInitFunction ()
	This function is called after the mesh handler unloads a mesh.
virtual PLS_API void	DeInitFunction () override
	This function is called when the scene node gets de-initialized.

Detailed Description

An mesh is a special scene node that has a 3D mesh attached to it by default.

Note:

If 'Skin' is not empty and not a skin file, all materials are replaced through the new one
By default, invisible scene nodes internally don't load in their mesh at once and delay this until the scene node becomes visible and/or 'GetMeshHandler()' is called (use 'LoadAtOnce'-flag do force loading at once)
For the debug visualization of normal vectors the config setting 'EngineDebugConfig->NormalScale' is used to scale the length

Member Enumeration Documentation

enum PLScene::SNMesh::EFlags

Scene node flags (SceneNode flags extension)

Enumerator:

NoAutomaticBoundingBox	Do not create the bounding box of the scene node automatically using the bounding box of the used mesh
LoadAtOnce	Load the mesh at once even if not used at the moment
DynamicMesh	Hint that this is a dynamic mesh, may have an impact on the performance
GenerateStrips	Generate triangle strips? (if possible, don't use this flag -> loading times...)
CalculateNormals	Calculate normal vectors? (if not already there) (if possible, don't use this flag -> loading times...)
CalculateTSVs	Calculate tangent space vectors? (if not already there) (if possible, don't use this flag -> loading times...)

Reimplemented from PLScene::SceneNode.

Constructor & Destructor Documentation

PLS_API PLScene::SNMesh::SNMesh ( )

Default constructor.

virtual PLS_API PLScene::SNMesh::~SNMesh ( ) [virtual]

Destructor.

Member Function Documentation

PLScene::SNMesh::pl_enum ( EFlags ) [inline]

Scene node debug flags (SceneNode debug flags extension)

< Draw wireframe

< Draw vertices

< Draw tangents (red = x/u)

< Draw binormals (green = y/v)

< Draw normals (blue = z/w)

< Draw vertex numbers

< Draw joints

< Draw joint names

< Draw skeleton

< Draw anchor points

Reimplemented from PLScene::SceneNode.

PLS_API PLCore::String PLScene::SNMesh::GetSkin ( ) const

PLS_API void PLScene::SNMesh::SetSkin ( const PLCore::String & sValue )

virtual PLS_API void PLScene::SNMesh::SetFlags ( PLCore::uint32 nValue ) [virtual]

Reimplemented from PLScene::SceneNode.

PLS_API bool PLScene::SNMesh::LoadMesh	(	const PLCore::String &	sFilename,
		const PLCore::String &	sParams = `""`,
		const PLCore::String &	sMethod = `""`
	)

Loads a mesh.

Parameters:

[in]	sFilename	Mesh filename to load
[in]	sParams	Optional load method parameters, can be an empty string
[in]	sMethod	Optional name of the load method to use, can be an empty string

Returns:: 'true' if all went fine, else 'false'

Note:

If this entity is initialized the mesh defined in the entity variable m_sMesh is loaded automatically

PLS_API bool PLScene::SNMesh::LoadSkin	(	const PLCore::String &	sFilename,
		const PLCore::String &	sParams = `""`,
		const PLCore::String &	sMethod = `""`
	)

Loads a skin.

Parameters:

[in]	sFilename	Skin filename to load, if empty, the default materials of the given mesh are used
[in]	sParams	Optional load method parameters, can be an empty string
[in]	sMethod	Optional name of the load method to use, can be an empty string

Returns:: 'true' if all went fine, else 'false'

PLS_API bool PLScene::SNMesh::SaveSkin	(	const PLCore::String &	sFilename,
		const PLCore::String &	sParams = `""`,
		const PLCore::String &	sMethod = `""`
	)

Saves the skin.

Parameters:

[in]	sFilename	Skin filename
[in]	sParams	Optional save method parameters, can be an empty string
[in]	sMethod	Optional name of the save method to use, can be an empty string

Returns:: 'true' if all went fine, else 'false'

PLS_API bool PLScene::SNMesh::UnloadMesh ( )

Unloads the current mesh.

Returns:: 'true' if all went fine, else 'false'

PLS_API bool PLScene::SNMesh::GetSkeletonJointWorldPosition	(	const PLCore::String &	sJointName,
		PLMath::Vector3 &	vPosition
	)

virtual PLS_API void PLScene::SNMesh::MeshInitFunction ( ) [protected, virtual]

This function is called after the mesh handler loads a mesh.

Note:

Use e.g. to get animation information

virtual PLS_API void PLScene::SNMesh::MeshDeInitFunction ( ) [protected, virtual]

This function is called after the mesh handler unloads a mesh.

Note:

The default implementation is empty

See also:

MeshInitFunction()

virtual PLS_API PLMesh::MeshHandler* PLScene::SNMesh::GetMeshHandler ( ) [override, virtual]

Returns a pointer to the mesh handler.

Returns:: Pointer to the mesh handler, a null pointer if there's no mesh handler

Note:

Returns a null pointer by default, function can be implemented in derived classes

See also:

DrawPre()

Reimplemented from PLScene::SceneNode.

virtual PLS_API void PLScene::SNMesh::DrawDebug	(	PLRenderer::Renderer &	cRenderer,
		const VisNode *	pVisNode = `nullptr`
	)		`[override, virtual]`

This function is called when the debug parts of the scene are drawn.

Parameters:

[in]	cRenderer	The used renderer
[in]	pVisNode	The current visibility node of this scene node, can be a null pointer

Note:

Should only be called if the 'UseDrawDebug' draw flag and the 'DebugEnabled' debug flag is set

Beside drawing scene node stuff, the default implementation emits the SignalDrawDebug signal

See also:

DrawPre()

Reimplemented from PLScene::SceneNode.

Reimplemented in PLPhysics::SNRagdoll.

virtual PLS_API void PLScene::SNMesh::DeInitFunction ( ) [override, protected, virtual]

This function is called when the scene node gets de-initialized.

Reimplemented from PLScene::SceneNode.

Reimplemented in PLPhysics::SNRagdoll.

The documentation for this class was generated from the following file:

SNMesh.h
