PLScene::SNMMeshJoint Class Reference

Mesh scene node joint modifier class. More...

#include <SNMMeshJoint.h>

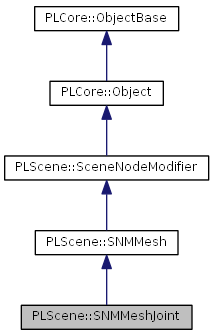

Inheritance diagram for PLScene::SNMMeshJoint:

List of all members.

Public Types
enum	EFlags { UseFallbackRotation = 1<<2 }
	Flags (SceneNodeModifier flags extension) More...
Public Member Functions
PLS_API const PLMath::Vector3 &	GetRotation () const
PLS_API void	SetRotation (const PLMath::Vector3 &vValue)
PLS_API const PLMath::Vector3 &	GetMin () const
PLS_API void	SetMin (const PLMath::Vector3 &vValue)
PLS_API const PLMath::Vector3 &	GetMax () const
PLS_API void	SetMax (const PLMath::Vector3 &vValue)
PLS_API	SNMMeshJoint (SceneNode &cSceneNode)
	Constructor.
virtual PLS_API	~SNMMeshJoint ()
	Destructor.
Protected Member Functions
virtual PLS_API void	OnActivate (bool bActivate) override
	Called when the scene node modifier has been activated or deactivated.

---

Detailed Description

Mesh scene node joint modifier class.

Note:

• Adds automatically a "PLScene::SNMMeshUpdate" scene node modifier (if there's not yet one) in order to frequently update the mesh
• If the node has no mesh with a skeleton, this modifier will have no effect

---

Member Enumeration Documentation

enum PLScene::SNMMeshJoint::EFlags

Flags (SceneNodeModifier flags extension)

Enumerator:

UseFallbackRotation

Use fallback rotation if the target is 'out of rotation range'

Reimplemented from PLScene::SceneNodeModifier.

---

Constructor & Destructor Documentation

PLS_API PLScene::SNMMeshJoint::SNMMeshJoint

(

SceneNode &

cSceneNode

)

Constructor.

Parameters:

[in]

cSceneNode

Owner scene node

virtual PLS_API PLScene::SNMMeshJoint::~SNMMeshJoint

(

)

[virtual]

Destructor.

---

Member Function Documentation

PLS_API const PLMath::Vector3& PLScene::SNMMeshJoint::GetRotation

(

)

const

PLS_API void PLScene::SNMMeshJoint::SetRotation

(

const PLMath::Vector3 &

vValue

)

PLS_API const PLMath::Vector3& PLScene::SNMMeshJoint::GetMin

(

)

const

PLS_API void PLScene::SNMMeshJoint::SetMin

(

const PLMath::Vector3 &

vValue

)

PLS_API const PLMath::Vector3& PLScene::SNMMeshJoint::GetMax

(

)

const

PLS_API void PLScene::SNMMeshJoint::SetMax

(

const PLMath::Vector3 &

vValue

)

virtual PLS_API void PLScene::SNMMeshJoint::OnActivate

(

bool

bActivate

)

[override, protected, virtual]

Called when the scene node modifier has been activated or deactivated.

Parameters:

[in]

bActivate

'true' if the scene node modifier is now active, else 'false'

Note:

• The scene node "Inactive"-flag as well as the "Frozen"-flag are taken into account
• 'bActivate' will be 'true' if the scene node modifier AND the owner scene node AND it's parent scene container (recursive!) are active
• 'bActivate' will be 'false' if the scene node modifier OR the owner scene node OR it's parent scene container (recursive!) is inactive
• The default implementation is empty

Reimplemented from PLScene::SceneNodeModifier.

---

The documentation for this class was generated from the following file:

• SNMMeshJoint.h
