Abstract renderer surface where we can render in. More...

#include <Surface.h>

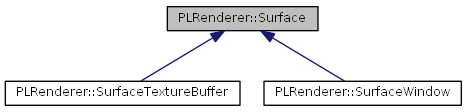

Inheritance diagram for PLRenderer::Surface:

Public Types
enum	EType { Window = 0, TextureBuffer = 1 }
	Surface types. More...
Public Member Functions
virtual PLRENDERER_API	~Surface ()
	Destructor.
Renderer &	GetRenderer () const
	Returns the owner renderer.
EType	GetType () const
	Returns the surface type.
bool	IsActive () const
	Returns whether the surface is active or not.
void	SetActive (bool bActive=true)
	Sets whether the surface is active or not.
SurfacePainter *	GetPainter () const
	Returns the surface painter.
PLRENDERER_API bool	SetPainter (SurfacePainter *pPainter, bool bDestroy=true)
	Set a surface painter.
PLRENDERER_API void	Draw ()
	Draws the surface.
bool	IsSwapY () const
	Returns the whether the surface is flipped along the y axis.
void	SetSwapY (bool bSwapY=false)
	Sets the whether the surface is flipped along the y axis.
virtual PLMath::Vector2i	GetSize () const =0
	Returns the size of this renderer surface.
virtual PLRENDERER_API bool	IsAPISwapY () const
	Returns the whether the surface is flipped along the y axis.
Public Attributes
PLCore::Event	EventPaintBegin
PLCore::Event	EventPaint
PLCore::Event	EventPaintEnd
Protected Member Functions
PLRENDERER_API	Surface (Renderer &cRenderer, EType nType)
	Constructor.
virtual bool	Init ()=0
	Initializes the surface.
virtual void	DeInit ()=0
	De-initializes the surface.
virtual bool	MakeCurrent (PLCore::uint8 nFace=0)=0
	Makes this surface to the renderers current render target.
virtual PLRENDERER_API bool	UnmakeCurrent ()
	Unmakes this surface from the renderers current render target.
virtual bool	Present ()=0
	Presents the contents of the next buffer in the sequence of back buffers owned by the device.
virtual PLRENDERER_API void	BackupDeviceData ()
	Backups the surface device data.
virtual PLRENDERER_API void	RestoreDeviceData ()
	Restores the surface device data.

Detailed Description

Abstract renderer surface where we can render in.

Member Enumeration Documentation

enum PLRenderer::Surface::EType

Surface types.

Enumerator:

Window	Render to window
TextureBuffer	Render to texture buffer

Constructor & Destructor Documentation

virtual PLRENDERER_API PLRenderer::Surface::~Surface ( ) [virtual]

Destructor.

PLRENDERER_API PLRenderer::Surface::Surface	(	Renderer &	cRenderer,
		EType	nType
	)		`[protected]`

Constructor.

Parameters:

[in]	cRenderer	Owner renderer
[in]	nType	Surface type

Member Function Documentation

Renderer & PLRenderer::Surface::GetRenderer ( ) const [inline]

Returns the owner renderer.

Returns:: The owner renderer

Surface::EType PLRenderer::Surface::GetType ( ) const [inline]

Returns the surface type.

Returns:: Surface type

bool PLRenderer::Surface::IsActive ( ) const [inline]

Returns whether the surface is active or not.

Returns:: 'true' if the surface is active, else 'false'

void PLRenderer::Surface::SetActive ( bool bActive = true ) [inline]

Sets whether the surface is active or not.

Parameters:

[in] bActive 'true' if the surface is active, else 'false'

SurfacePainter * PLRenderer::Surface::GetPainter ( ) const [inline]

Returns the surface painter.

Returns:: The surface painter, a null pointer if there's no surface painter

PLRENDERER_API bool PLRenderer::Surface::SetPainter	(	SurfacePainter *	pPainter,
		bool	bDestroy = `true`
	)

Set a surface painter.

Parameters:

[in]	pPainter	Pointer to the surface painter, can be a null pointer
[in]	bDestroy	Destroy the current set surface painter? (if there's one)

Returns:: 'true' if all went fine, else 'false'

Remarks:: The painter will be destroyed by the surface, so don't delete it again!

PLRENDERER_API void PLRenderer::Surface::Draw ( )

Draws the surface.

Remarks:: Just calls the OnPaint() function if there's a surface painter and if this surface is active.

bool PLRenderer::Surface::IsSwapY ( ) const [inline]

Returns the whether the surface is flipped along the y axis.

Returns:: 'true' if the surface is flipped along the y axis, else 'false'

void PLRenderer::Surface::SetSwapY ( bool bSwapY = false ) [inline]

Sets the whether the surface is flipped along the y axis.

Parameters:

[in] bSwapY 'true' if the surface is flipped along the y axis, else 'false'

virtual PLMath::Vector2i PLRenderer::Surface::GetSize ( ) const [pure virtual]

Returns the size of this renderer surface.

Returns:: The size of this renderer surface

virtual PLRENDERER_API bool PLRenderer::Surface::IsAPISwapY ( ) const [virtual]

Returns the whether the surface is flipped along the y axis.

Returns:: 'true' if the surface is flipped along the y axis, else 'false'

Note:

By overwriting this function, the renderer backend can decide by itself how to flip the surface

virtual bool PLRenderer::Surface::Init ( ) [protected, pure virtual]

Initializes the surface.

Returns:: 'true' if all went fine, else 'false'

virtual void PLRenderer::Surface::DeInit ( ) [protected, pure virtual]

De-initializes the surface.

virtual bool PLRenderer::Surface::MakeCurrent ( PLCore::uint8 nFace = 0 ) [protected, pure virtual]

Makes this surface to the renderers current render target.

Parameters:

[in] nFace Cube map face to render in (0-5) - only used if this is a cube texture buffer render target

Returns:: 'true' if all went fine, else 'false'

virtual PLRENDERER_API bool PLRenderer::Surface::UnmakeCurrent ( ) [protected, virtual]

Unmakes this surface from the renderers current render target.

Returns:: 'true' if all went fine, else 'false'

virtual bool PLRenderer::Surface::Present ( ) [protected, pure virtual]

Presents the contents of the next buffer in the sequence of back buffers owned by the device.

Returns:: 'true' if all went fine, else 'false'

virtual PLRENDERER_API void PLRenderer::Surface::BackupDeviceData ( ) [protected, virtual]

Backups the surface device data.

Note:

Used for instance if the display mode is changed to backup/restore all surface device data
Normally only used inside Renderer::BackupDeviceObjects()/Renderer::RestoreDeviceObjects()

virtual PLRENDERER_API void PLRenderer::Surface::RestoreDeviceData ( ) [protected, virtual]

Restores the surface device data.

See also:
