PLRenderer::Resource Class Reference

Renderer resource base class. More...

#include <Resource.h>

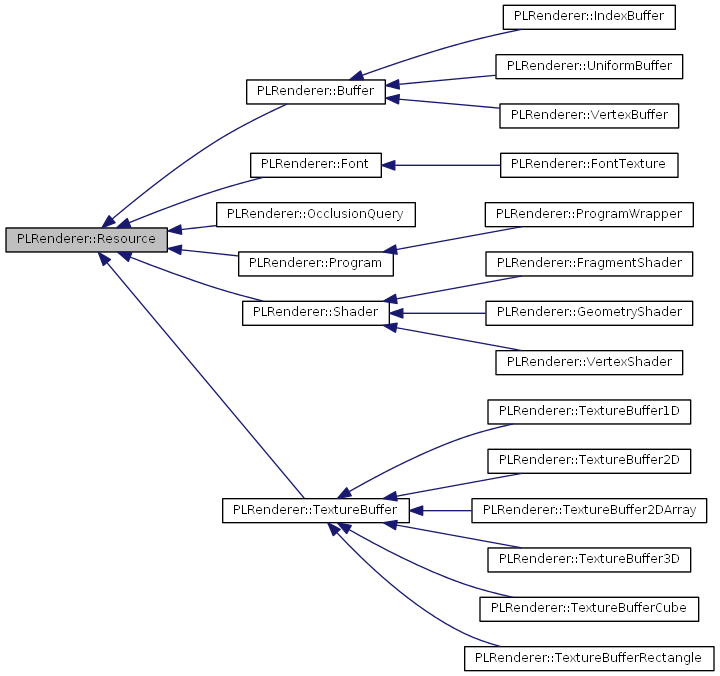

Inheritance diagram for PLRenderer::Resource:

List of all members.

Public Types
enum	EType {   TypeIndexBuffer = 0, TypeVertexBuffer = 1, TypeUniformBuffer = 2, TypeTextureBuffer1D = 3,   TypeTextureBuffer2D = 4, TypeTextureBuffer2DArray = 5, TypeTextureBufferRectangle = 6, TypeTextureBuffer3D = 7,   TypeTextureBufferCube = 8, TypeOcclusionQuery = 9, TypeVertexShader = 10, TypeGeometryShader = 11,   TypeFragmentShader = 12, TypeProgram = 13, TypeFont = 14 }
	Resource types. More...
Public Member Functions
virtual PLRENDERER_API	~Resource ()
	Destructor.
Renderer &	GetRenderer () const
	Returns the owner renderer.
EType	GetType () const
	Returns the resource type.
PLCore::uint32	GetNumOfHandlers () const
	Returns the number of resource handlers.
bool	IsHandler (ResourceHandler &cHandler) const
	Returns whether a resource handler is using this resource.
PLRENDERER_API bool	AddHandler (ResourceHandler &cHandler)
	Adds a resource handler.
PLRENDERER_API bool	RemoveHandler (ResourceHandler &cHandler)
	Removes a resource handler.
PLRENDERER_API void	ClearHandlers ()
	Clears the list of handlers.
Protected Member Functions
PLRENDERER_API	Resource (Renderer &cRenderer, EType nType)
	Constructor.
virtual PLRENDERER_API void	BackupDeviceData (PLCore::uint8 **ppBackup)
	Backups the resource device data.
virtual PLRENDERER_API void	RestoreDeviceData (PLCore::uint8 **ppBackup)
	Restores the resource device data.

---

Detailed Description

Renderer resource base class.

---

Member Enumeration Documentation

enum PLRenderer::Resource::EType

Resource types.

Enumerator:

TypeIndexBuffer	Index buffer (IBO)
TypeVertexBuffer	Vertex buffer (VBO)
TypeUniformBuffer	Uniform buffer (UBO)
TypeTextureBuffer1D	1D texture buffer
TypeTextureBuffer2D	2D texture buffer
TypeTextureBuffer2DArray	2D array texture buffer (kind of 3D texture, but without filtering between the depth layers)
TypeTextureBufferRectangle	Rectangle texture buffer
TypeTextureBuffer3D	3D texture buffer
TypeTextureBufferCube	Cube texture buffer
TypeOcclusionQuery	Occlusion query
TypeVertexShader	Vertex shader
TypeGeometryShader	Geometry shader
TypeFragmentShader	Fragment shader
TypeProgram	Program
TypeFont	Font

Reimplemented in PLRenderer::VertexBuffer, and PLRenderer::IndexBuffer.

---

Constructor & Destructor Documentation

virtual PLRENDERER_API PLRenderer::Resource::~Resource

(

)

[virtual]

Destructor.

PLRENDERER_API PLRenderer::Resource::Resource	(	Renderer &	cRenderer,
		EType	nType
	)		[protected]

Constructor.

Parameters:

[in]	cRenderer	Owner renderer
[in]	nType	Resource type

---

Member Function Documentation

Renderer & PLRenderer::Resource::GetRenderer

(

)

const [inline]

Returns the owner renderer.

Returns:

The owner renderer

Resource::EType PLRenderer::Resource::GetType

(

)

const [inline]

Returns the resource type.

Returns:

Resource type

PLCore::uint32 PLRenderer::Resource::GetNumOfHandlers

(

)

const [inline]

Returns the number of resource handlers.

Returns:

The number of resource handlers

bool PLRenderer::Resource::IsHandler

(

ResourceHandler &

cHandler

)

const [inline]

Returns whether a resource handler is using this resource.

Parameters:

[in]

cHandler

Resource handler to check

Returns:

'true' if the given resource handler is using this resource, else 'false'

Note:

• The handlers will be informed if the resource was lost
• The handlers itself are not deleted etc. they are only 'added' to a list

PLRENDERER_API bool PLRenderer::Resource::AddHandler

(

ResourceHandler &

cHandler

)

Adds a resource handler.

Parameters:

[in]

cHandler

Resource handler which should be added

Returns:

'true' if all went fine, else 'false'

See also:

• IsHandler()

PLRENDERER_API bool PLRenderer::Resource::RemoveHandler

(

ResourceHandler &

cHandler

)

Removes a resource handler.

Parameters:

[in]

cHandler

Resource handler to remove

Returns:

'true' if all went fine, else 'false'

See also:

• IsHandler()

PLRENDERER_API void PLRenderer::Resource::ClearHandlers

(

)

Clears the list of handlers.

See also:

• IsHandler()

virtual PLRENDERER_API void PLRenderer::Resource::BackupDeviceData

(

PLCore::uint8 **

ppBackup

)

[protected, virtual]

Backups the resource device data.

Parameters:

[in,out]

ppBackup

Pointer to a pointer for the data backup (MUST be ALWAYS VALID or a null pointer!)

Note:

• Used for instance if the display mode is changed to backup/restore all resource device data
• Normally only used inside Renderer::BackupDeviceObjects()/Renderer::RestoreDeviceObjects()

virtual PLRENDERER_API void PLRenderer::Resource::RestoreDeviceData

(

PLCore::uint8 **

ppBackup

)

[protected, virtual]

Restores the resource device data.

Parameters:

[in,out]

ppBackup

Pointer to a pointer for the data backup (MUST be ALWAYS VALID or a null pointer!)

See also:

• BackupDeviceData()

---

The documentation for this class was generated from the following files:

• PLRenderer/include/PLRenderer/Renderer/Resource.h
• PLRenderer/include/PLRenderer/Renderer/Resource.inl
