PLMesh::MorphTargetAni Class Reference

Morph target animation class. More...

#include <MorphTargetAni.h>

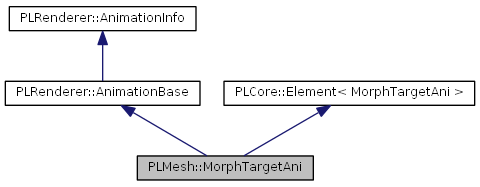

Inheritance diagram for PLMesh::MorphTargetAni:

List of all members.

Classes
class	AniMorphTarget
	Animation morph target. More...
Public Member Functions
PLMESH_API	MorphTargetAni (const PLCore::String &sName, PLCore::ElementManager< MorphTargetAni > *pManager=nullptr)
	Constructor.
virtual PLMESH_API	~MorphTargetAni ()
	Destructor.
PLMESH_API PLCore::Array < AniMorphTarget > &	GetMorphTargets ()
	Returns the morph target animation morph targets.
PLMESH_API bool	ApplyMorphTargetWeight (PLCore::Array< float > &lstMorphTargetWeights, PLCore::uint32 nFrame, float fWeight=1.0f, const Mesh *pMesh=nullptr) const
	Applies the morph target weight from the given morph target frame to the given morph target weights.
PLMESH_API bool	ApplyMorphTargetWeight (PLCore::Array< float > &lstMorphTargetWeights, PLCore::uint32 nFrame1, PLCore::uint32 nFrame2, float fTime, float fWeight=1.0f, const Mesh *pMesh=nullptr) const
	Applies the blended morph target weight from the given morph target frames to the given morph target weights.
virtual PLMESH_API MorphTargetAni &	operator= (const MorphTargetAni &cSource)
virtual PLMESH_API PLCore::String	GetSourceName () const override
	Get the animation source name.

---

Detailed Description

Morph target animation class.

---

Constructor & Destructor Documentation

PLMESH_API PLMesh::MorphTargetAni::MorphTargetAni	(	const PLCore::String &	sName,
		PLCore::ElementManager< MorphTargetAni > *	pManager = nullptr
	)

Constructor.

Parameters:

[in]	sName	Name
[in]	pManager	Element manager using this element, can be a null pointer

Note:

• If you provide the pointer to the owner manager the morph target animation will check in the owner morph target animation manager name list
• If the desired name is already in use inside the owner manager an alternative name is set

virtual PLMESH_API PLMesh::MorphTargetAni::~MorphTargetAni

(

)

[virtual]

Destructor.

---

Member Function Documentation

PLMESH_API PLCore::Array<AniMorphTarget>& PLMesh::MorphTargetAni::GetMorphTargets

(

)

Returns the morph target animation morph targets.

Returns:

Morph target animation morph targets

PLMESH_API bool PLMesh::MorphTargetAni::ApplyMorphTargetWeight	(	PLCore::Array< float > &	lstMorphTargetWeights,
		PLCore::uint32	nFrame,
		float	fWeight = 1.0f,
		const Mesh *	pMesh = nullptr
	)		const

Applies the morph target weight from the given morph target frame to the given morph target weights.

Parameters:

[out]	lstMorphTargetWeights	Morph target weights to manipulate
[in]	nFrame	Morph target animation frame
[in]	fWeight	Weight (0.0-1.0)
[in]	pMesh	Mesh of the given morph target weights array, can be a null pointer

Returns:

'true' if all went fine, else 'false'

Note:

• If pMesh is not a null pointer lstMorphTargetWeights is a list of ALL morph target influences of the given mesh, else lstMorphTargetWeights is only a list of the morph target weights of THIS animation!

PLMESH_API bool PLMesh::MorphTargetAni::ApplyMorphTargetWeight	(	PLCore::Array< float > &	lstMorphTargetWeights,
		PLCore::uint32	nFrame1,
		PLCore::uint32	nFrame2,
		float	fTime,
		float	fWeight = 1.0f,
		const Mesh *	pMesh = nullptr
	)		const

Applies the blended morph target weight from the given morph target frames to the given morph target weights.

Parameters:

[out]	lstMorphTargetWeights	Morph target weights to manipulate
[in]	nFrame1	Morph target animation frame 1
[in]	nFrame2	Morph target animation frame 2
[in]	fTime	Morph target animation time (0.0-1.0)
[in]	fWeight	Weight (0.0-1.0)
[in]	pMesh	Mesh of the given morph target weights array, can be a null pointer

Returns:

'true' if all went fine, else 'false'

See also:

• ApplyMorphTargetWeight() above

virtual PLMESH_API MorphTargetAni& PLMesh::MorphTargetAni::operator=

(

const MorphTargetAni &

cSource

)

[virtual]

virtual PLMESH_API PLCore::String PLMesh::MorphTargetAni::GetSourceName

(

)

const [override, virtual]

Get the animation source name.

Returns:

Animation source name, empty on error

Note:

• If this is a skeleton animation, the source name is the name of a skeleton. (SkeletonManager::Get(...))
• If this is a vertex animation, the source name is the name of a morph target animation. (pMyMesh->GetMorphTargetAnimationManager().Get(...))

Reimplemented from PLRenderer::AnimationInfo.

---

The documentation for this class was generated from the following file:

• MorphTargetAni.h
