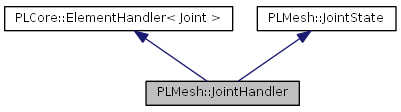

Inheritance diagram for PLMesh::JointHandler:

Public Member Functions
PLMESH_API	JointHandler ()
	Constructor.
virtual PLMESH_API	~JointHandler ()
	Destructor.
PLMESH_API bool	IsUserControlled () const
	Returns whether or not this joint is user controlled.
PLMESH_API void	SetUserControlled (bool bUserControlled=false)
	Sets whether or not this joint is user controlled.
PLMESH_API bool	CalculateStates (const JointHandler *pJointHandler=nullptr)
	Calculates the current absolute translation and rotation states and the transform joint matrix.
PLMESH_API JointHandler &	operator= (const JointHandler &cSource)
	Copy operator.
PLMESH_API bool	operator== (const JointHandler &cJointHandler) const
	Compares two joint handlers.

Detailed Description

Joint handler class.

Constructor & Destructor Documentation

PLMESH_API PLMesh::JointHandler::JointHandler ( )

Constructor.

virtual PLMESH_API PLMesh::JointHandler::~JointHandler ( ) [virtual]

Destructor.

PLMESH_API bool PLMesh::JointHandler::IsUserControlled ( ) const

Returns whether or not this joint is user controlled.

Remarks:: By default, joints are NOT user controlled which means their absolute translation and rotation is calculated automatically by the animation system by using their relative states. This way, multiple 'offline' (predefined :) animations can be mixed together to get a final animation where animations can only influence some parts of the skeleton. If a joint is marked as 'used controlled', the animations system does not calculate the absolute values by itself. In this case, this joints can be fully 'online' (dynamic) animated by using for instance physics objects in the case of ragdoll animations. Normally only a few joints are user controlled while others are still updated automatically relative to their parents.

PLMESH_API void PLMesh::JointHandler::SetUserControlled ( bool bUserControlled = false )

Sets whether or not this joint is user controlled.

Parameters:

[in] bUserControlled 'true' if this joint is user controlled, else 'false'

See also:

PLMESH_API bool PLMesh::JointHandler::CalculateStates ( const JointHandler * pJointHandler = nullptr )

Calculates the current absolute translation and rotation states and the transform joint matrix.

Parameters:

[in] pJointHandler Parent joint of this joint, if a null pointer there's no parent joint

Returns:: 'true' if all went fine, else 'false' (maybe the handler has no joint or the given parent joint is invalid)

PLMESH_API JointHandler& PLMesh::JointHandler::operator= ( const JointHandler & cSource )

Copy operator.

Parameters:

[in] cSource Source to copy from

PLMESH_API bool PLMesh::JointHandler::operator== ( const JointHandler & cJointHandler ) const

Compares two joint handlers.

Parameters:

[in] cJointHandler Joint handler to compare with

The documentation for this class was generated from the following file:
