SpaceMouse input device. More...
#include <SpaceMouse.h>

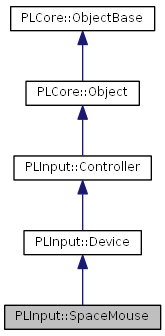

Inheritance diagram for PLInput::SpaceMouse:
Public Member Functions | |
| PLINPUT_API | SpaceMouse (const PLCore::String &sName, DeviceImpl *pImpl) |
| Constructor. | |
| virtual PLINPUT_API | ~SpaceMouse () |
| Destructor. | |
Public Attributes | |
| PLInput::Axis | TransX |
| PLInput::Axis | TransY |
| PLInput::Axis | TransZ |
| PLInput::Axis | RotX |
| PLInput::Axis | RotY |
| PLInput::Axis | RotZ |
| PLInput::Button | Button0 |
| PLInput::Button | Button1 |
| PLInput::Button | Button2 |
| PLInput::Button | Button3 |
| PLInput::Button | Button4 |
| PLInput::Button | Button5 |
| PLInput::Button | Button6 |
| PLInput::Button | Button7 |
Detailed Description
SpaceMouse input device.
- Remarks:
- This class supports the following device backend types:
- HIDDevice
Constructor & Destructor Documentation
| PLINPUT_API PLInput::SpaceMouse::SpaceMouse | ( | const PLCore::String & | sName, |
| DeviceImpl * | pImpl | ||
| ) |
Constructor.
- Parameters:
-
[in] sName Device name [in] pImpl System specific device implementation, can, but shouldn't be a null pointer
| virtual PLINPUT_API PLInput::SpaceMouse::~SpaceMouse | ( | ) | [virtual] |
Destructor.
Member Data Documentation
Absolute x translation axis (the values are usually roughly between [-400 .. 400])
Absolute y translation axis (the values are usually roughly between [-400 .. 400])
Absolute z translation axis (the values are usually roughly between [-400 .. 400])
Absolute x rotation axis (the values are usually roughly between [-400 .. 400])
Absolute y rotation axis (the values are usually roughly between [-400 .. 400])
Absolute z rotation axis (the values are usually roughly between [-400 .. 400])
The documentation for this class was generated from the following file:
