PLEngine::SNMPhysicsCharacter Class Reference

Basic PL physics character scene node modifier class. More...

#include <SNMPhysicsCharacter.h>

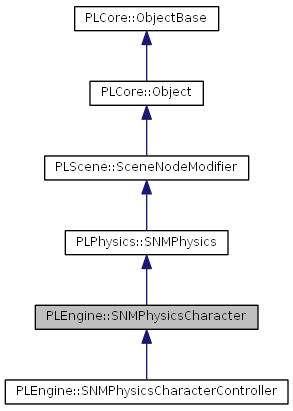

Inheritance diagram for PLEngine::SNMPhysicsCharacter:

List of all members.

Public Types
enum	EFlags { YMovement = 1<<2 }
	Scene node modifier flags (PLScene::SceneNodeModifier flags extension) More...
Public Member Functions
PL_API bool	IsRunning () const
	Gets the running mode.
PL_API void	SetRunning (bool bRun=false)
	Sets the running mode.
PL_API bool	IsCreeping () const
	Gets the creeping mode.
PL_API void	SetCreeping (bool bCreep=false)
	Sets the creeping mode.
PL_API const PLMath::Vector3 &	GetMovement () const
	Gets the movement vector.
PL_API void	SetMovement (const PLMath::Vector3 &vMovement)
	Sets the movement vector.
PL_API bool	Jump ()
	Performs a jump.
Protected Member Functions
PL_API PLPhysics::Body *	GetPhysicsBody () const
	Returns the PL physics body of the scene node.
virtual PL_API void	OnActivate (bool bActivate) override
	Called when the scene node modifier has been activated or deactivated.

---

Detailed Description

Basic PL physics character scene node modifier class.

Remarks:

This class will access the PLPhysics::SNMPhysicsBody scene node modifier and take over control of the physics body. So, this modifier makes only sense if there's a PLPhysics::SNMPhysicsBody, too.

Note:

• Primary intended for rapid prototyping

---

Member Enumeration Documentation

enum PLEngine::SNMPhysicsCharacter::EFlags

Scene node modifier flags (PLScene::SceneNodeModifier flags extension)

Enumerator:

YMovement

Perform movement also on the y axis, else movement is just performed on the x/z plane

Reimplemented from PLScene::SceneNodeModifier.

Reimplemented in PLEngine::SNMPhysicsCharacterController.

---

Member Function Documentation

PL_API bool PLEngine::SNMPhysicsCharacter::IsRunning

(

)

const

Gets the running mode.

Returns:

'true' if the character runs, else 'false'

PL_API void PLEngine::SNMPhysicsCharacter::SetRunning

(

bool

bRun = false

)

Sets the running mode.

Parameters:

[in]

bRun

Did the character run?

PL_API bool PLEngine::SNMPhysicsCharacter::IsCreeping

(

)

const

Gets the creeping mode.

Returns:

'true' if the character creeps, else 'false'

PL_API void PLEngine::SNMPhysicsCharacter::SetCreeping

(

bool

bCreep = false

)

Sets the creeping mode.

Parameters:

[in]

bCreep

Did the character creep?

PL_API const PLMath::Vector3& PLEngine::SNMPhysicsCharacter::GetMovement

(

)

const

Gets the movement vector.

Returns:

The movement vector

Note:

• The movement vector should be normalized

PL_API void PLEngine::SNMPhysicsCharacter::SetMovement

(

const PLMath::Vector3 &

vMovement

)

Sets the movement vector.

Parameters:

[in]

vMovement

The new movement vector, if the length is >1, the vector is used in a normalized form inside OnUpdate()

See also:

• GetMovement()

PL_API bool PLEngine::SNMPhysicsCharacter::Jump

(

)

Performs a jump.

Returns:

'true' if all went fine an the jump is performed, else 'false' (maybe the character does not stand on the ground)

PL_API PLPhysics::Body* PLEngine::SNMPhysicsCharacter::GetPhysicsBody

(

)

const [protected]

Returns the PL physics body of the scene node.

Returns:

The PL physics body of the scene node, a null pointer if there's no such body

virtual PL_API void PLEngine::SNMPhysicsCharacter::OnActivate

(

bool

bActivate

)

[override, protected, virtual]

Called when the scene node modifier has been activated or deactivated.

Parameters:

[in]

bActivate

'true' if the scene node modifier is now active, else 'false'

Note:

• The scene node "Inactive"-flag as well as the "Frozen"-flag are taken into account
• 'bActivate' will be 'true' if the scene node modifier AND the owner scene node AND it's parent scene container (recursive!) are active
• 'bActivate' will be 'false' if the scene node modifier OR the owner scene node OR it's parent scene container (recursive!) is inactive
• The default implementation is empty

Reimplemented from PLScene::SceneNodeModifier.

Reimplemented in PLEngine::SNMPhysicsCharacterController.

---

The documentation for this class was generated from the following file:

• SNMPhysicsCharacter.h
