Abstract XML base class. More...

#include <XmlBase.h>

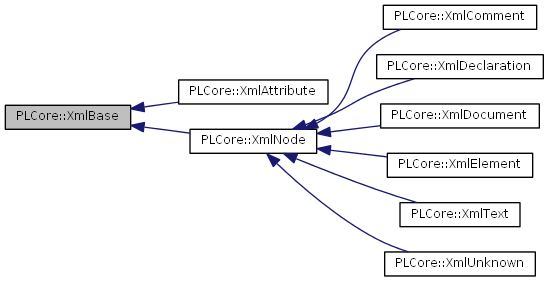

Inheritance diagram for PLCore::XmlBase:

[legend]

Classes
struct	Cursor
	Internal structure for tracking location of items in the XML file. More...
Public Types
enum	{ NoError, Error, ErrorOpeningFile, ErrorParsingElement, ErrorFailedToReadElementName, ErrorReadingElementValue, ErrorReadingAttributes, ErrorParsingEmpty, ErrorReadingEndTag, ErrorParsingUnknown, ErrorParsingComment, ErrorParsingDeclaration, ErrorDocumentEmpty, ErrorEmbeddedNull, ErrorParsingCData, ErrorDocumentTopOnly, ErrorStringCount }
	Error codes. More...
enum	EQueryResult { Success, NoAttribute, WrongType }
	Only used by 'Attribute::Query'-functions. More...
enum	EEncoding { EncodingUnknown, EncodingUTF8, EncodingLegacy }
	Used by the parsing routines. More...
Public Member Functions
virtual PLCORE_API	~XmlBase ()
	Destructor.
int	GetRow () const
	Return the row position, in the original source file, of this node or attribute.
int	GetColumn () const
	Return the column position, in the original source file, of this node or attribute.
void *	GetUserData () const
	Returns the user data.
void	SetUserData (void *pUser)
	Sets the user data.
virtual bool	Save (File &cFile, uint32 nDepth=0)=0
	Save function.
virtual String	ToString (uint32 nDepth=0) const =0
	Output as string function.
virtual const char *	Parse (const char pszData, XmlParsingData pData=nullptr, EEncoding nEncoding=EncodingUnknown)=0
	Parse the given null terminated block of XML data.
Static Public Member Functions
static bool	IsWhiteSpaceCondensed ()
	Return the current white space setting.
static void	SetCondenseWhiteSpace (bool bCondense)
	Set white space handling.
Protected Member Functions
	XmlBase ()
	Default constructor.
Static Protected Member Functions
static const char *	SkipWhiteSpace (const char *pszData, EEncoding nEncoding)
static bool	IsWhiteSpace (char c)
static bool	IsWhiteSpace (int c)
static const char *	ReadName (const char *pszData, String &sName, EEncoding nEncoding)
	Reads an XML name into the string provided.
static const char *	ReadText (const char pszData, String &sText, bool bTrimWhiteSpace, const char pszEndTag, bool bCaseInsensitive, EEncoding nEncoding)
	Reads text.
static const char *	GetEntity (const char pszData, char pszValue, int &nLength, EEncoding nEncoding)
static const char *	GetChar (const char pszData, char pszValue, int &nLength, EEncoding nEncoding)
static bool	StringEqual (const char pszData, const char pszTag, bool bIgnoreCase, EEncoding nEncoding)
static int	IsAlpha (unsigned char nByte)
static int	IsAlphaNum (unsigned char nByte)
static int	ToLower (int nValue, EEncoding nEncoding)
static void	ConvertUTF32ToUTF8 (unsigned long nInput, char *pszOutput, int &nLength)
static void	EncodeString (const String &sInString, String &sOutString)
Protected Attributes
void *	m_pUserData
Cursor	m_cCursor
Static Protected Attributes
static const unsigned char	UTF_LEAD_0 = 0xefU
static const unsigned char	UTF_LEAD_1 = 0xbbU
static const unsigned char	UTF_LEAD_2 = 0xbfU

Detailed Description

Abstract XML base class.

Remarks:: 'XmlBase' is a base class for every class of the XML parser. It does little except to establish that parser classes can be printed and provide some utility functions. In XML, the document and elements can contain other elements and other types of nodes.

*    A document can contain: Element (container or leaf)
*                            Comment (leaf)
*                            Unknown (leaf)
*                            Declaration (leaf)
*
*    An element can contain: Element (container or leaf)
*                            Text (leaf)
*                            Attributes (not on tree)
*                            Comment (leaf)
*                            Unknown (leaf)
*
*    A declaration contains: Attributes (not on tree)
*

Member Enumeration Documentation

anonymous enum

Error codes.

Enumerator:

NoError	No error
Error	Error
ErrorOpeningFile	Error opening file
ErrorParsingElement	Error parsing element
ErrorFailedToReadElementName	Error failed to read element name
ErrorReadingElementValue	Error reading element value
ErrorReadingAttributes	Error reading attributes
ErrorParsingEmpty	Error parsing empty
ErrorReadingEndTag	Error reading end tag
ErrorParsingUnknown	Error parsing unknown
ErrorParsingComment	Error parsing comment
ErrorParsingDeclaration	Error parsing declaration
ErrorDocumentEmpty	Error document empty
ErrorEmbeddedNull	Error embedded null
ErrorParsingCData	Error parsing CDATA
ErrorDocumentTopOnly	Error document top only
ErrorStringCount	Error string count

enum PLCore::XmlBase::EQueryResult

Only used by 'Attribute::Query'-functions.

Enumerator:

Success	All went fine
NoAttribute	Attribute does not exist
WrongType	Invalid attribute type

enum PLCore::XmlBase::EEncoding

Used by the parsing routines.

Enumerator:

EncodingUnknown	Unknown encoding (default)
EncodingUTF8	UTF8 encoding
EncodingLegacy	Legacy encoding

Constructor & Destructor Documentation

virtual PLCORE_API PLCore::XmlBase::~XmlBase ( ) [virtual]

Destructor.

PLCore::XmlBase::XmlBase ( ) [protected]

Default constructor.

Member Function Documentation

bool PLCore::XmlBase::IsWhiteSpaceCondensed ( ) [inline, static]

Return the current white space setting.

Returns:: 'true' if white space condensed is set, else 'false'

Remarks:: The world does not agree on whether white space should be kept or not. In order to make everyone happy, these global, static functions are provided to set whether or not the parser will condense all white space into a single space or not. The default is to condense. Note changing this values is not thread safe.

void PLCore::XmlBase::SetCondenseWhiteSpace ( bool bCondense ) [inline, static]

Set white space handling.

Parameters:

[in] bCondense 'true' if white space condensed is set, else 'false'

See also:

IsWhiteSpaceCondensed()

int PLCore::XmlBase::GetRow ( ) const [inline]

Return the row position, in the original source file, of this node or attribute.

Returns:: Row position

Remarks:: The row and column are 1-based. (That is the first row and first column is 1, 1). If the returns values are 0 or less, then the parser does not have a row and column value. Generally, the row and column value will be set when the 'XmlDocument::Load()', 'XmlDocument::Load()', or any 'XmlNode::Parse()' is called. It will NOT be set when the DOM was created from operator '>>'. The values reflect the initial load. Once the DOM is modified programmatically (by adding or changing nodes and attributes) the new values will NOT update to reflect changes in the document. There is a minor performance cost to computing the row and column. Computation can be disabled if 'XmlDocument::SetTabSize()' is called with 0 as the value.

See also:

XmlDocument::SetTabSize()

int PLCore::XmlBase::GetColumn ( ) const [inline]

Return the column position, in the original source file, of this node or attribute.

Returns:: Column position

See also:

GetRow()

void * PLCore::XmlBase::GetUserData ( ) const [inline]

Returns the user data.

Returns:: User data, can be a null pointer

Note:

The user data is not used internally, it's really user only :)

void PLCore::XmlBase::SetUserData ( void * pUser ) [inline]

Sets the user data.

Parameters:

[in] pUser User data, can be a null pointer

See also:

GetUserData()

virtual bool PLCore::XmlBase::Save	(	File &	cFile,
		uint32	nDepth = `0`
	)		`[pure virtual]`

Save function.

Parameters:

[out]	cFile	File to write in, must be opened and writable
[in]	nDepth	Current depth

Returns:: 'true' if all went fine, else 'false'

Implemented in PLCore::XmlElement, PLCore::XmlDocument, PLCore::XmlAttribute, PLCore::XmlDeclaration, PLCore::XmlText, PLCore::XmlComment, and PLCore::XmlUnknown.

virtual String PLCore::XmlBase::ToString ( uint32 nDepth = 0 ) const [pure virtual]

Output as string function.

Parameters:

[in] nDepth Current depth

Returns:: String containing the XML

Implemented in PLCore::XmlElement, PLCore::XmlDocument, PLCore::XmlAttribute, PLCore::XmlDeclaration, PLCore::XmlText, PLCore::XmlComment, and PLCore::XmlUnknown.

virtual const char* PLCore::XmlBase::Parse	(	const char *	pszData,
		XmlParsingData *	pData = `nullptr`,
		EEncoding	nEncoding = `EncodingUnknown`
	)		`[pure virtual]`

Parse the given null terminated block of XML data.

Parameters:

[in]	pszData	Parsing data, if a null pointer, an error will be returned
[in]	pData	Parsing data, can be a null pointer
[in]	nEncoding	Encoding

Returns:: The pointer to the parameter 'pszData' if all went fine, else a null pointer

Remarks:: Passing in an encoding to this method (either 'EncodingLegacy' or 'EncodingUTF8' will force the parser to use that encoding, regardless of what the parser might otherwise try to detect.

Implemented in PLCore::XmlElement, PLCore::XmlDocument, PLCore::XmlAttribute, PLCore::XmlDeclaration, PLCore::XmlText, PLCore::XmlComment, and PLCore::XmlUnknown.

static const char* PLCore::XmlBase::SkipWhiteSpace	(	const char *	pszData,
		EEncoding	nEncoding
	)		`[static, protected]`

static bool PLCore::XmlBase::IsWhiteSpace ( char c ) [static, protected]

static bool PLCore::XmlBase::IsWhiteSpace ( int c ) [static, protected]

static const char* PLCore::XmlBase::ReadName	(	const char *	pszData,
		String &	sName,
		EEncoding	nEncoding
	)		`[static, protected]`

Reads an XML name into the string provided.

Parameters:

[in]	pszData	Data
[out]	sName	Read name
[in]	nEncoding	Encoding

Returns:: Returns a pointer just past the last character of the name, or 0 if the function has an error

static const char* PLCore::XmlBase::ReadText	(	const char *	pszData,
		String &	sText,
		bool	bTrimWhiteSpace,
		const char *	pszEndTag,
		bool	bCaseInsensitive,
		EEncoding	nEncoding
	)		`[static, protected]`

Reads text.

Parameters:

[in]	pszData	Where to start
[out]	sText	The string read
[in]	bTrimWhiteSpace	Whether to keep the white space
[in]	pszEndTag	What ends this text
[in]	bCaseInsensitive	Whether to ignore case in the end tag
[in]	nEncoding	The current encoding

Returns:: Returns a pointer past the given end tag

Note:

Wickedly complex options, but it keeps the (sensitive) code in one place.

static const char* PLCore::XmlBase::GetEntity	(	const char *	pszData,
		char *	pszValue,
		int &	nLength,
		EEncoding	nEncoding
	)		`[static, protected]`

static const char* PLCore::XmlBase::GetChar	(	const char *	pszData,
		char *	pszValue,
		int &	nLength,
		EEncoding	nEncoding
	)		`[static, protected]`

static bool PLCore::XmlBase::StringEqual	(	const char *	pszData,
		const char *	pszTag,
		bool	bIgnoreCase,
		EEncoding	nEncoding
	)		`[static, protected]`

static int PLCore::XmlBase::IsAlpha ( unsigned char nByte ) [static, protected]

static int PLCore::XmlBase::IsAlphaNum ( unsigned char nByte ) [static, protected]

static int PLCore::XmlBase::ToLower	(	int	nValue,
		EEncoding	nEncoding
	)		`[static, protected]`

static void PLCore::XmlBase::ConvertUTF32ToUTF8	(	unsigned long	nInput,
		char *	pszOutput,
		int &	nLength
	)		`[static, protected]`

static void PLCore::XmlBase::EncodeString	(	const String &	sInString,
		String &	sOutString
	)		`[static, protected]`

Member Data Documentation

const unsigned char PLCore::XmlBase::UTF_LEAD_0 = 0xefU [static, protected]

const unsigned char PLCore::XmlBase::UTF_LEAD_1 = 0xbbU [static, protected]

const unsigned char PLCore::XmlBase::UTF_LEAD_2 = 0xbfU [static, protected]

void* PLCore::XmlBase::m_pUserData [protected]

User data, can be a null pointer

Cursor PLCore::XmlBase::m_cCursor [protected]

Cursor

The documentation for this class was generated from the following files:
