PLCore::Thread Class Reference

Thread class. More...

#include <Thread.h>

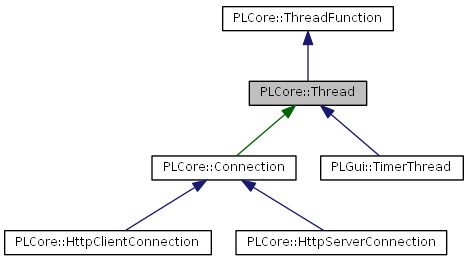

Inheritance diagram for PLCore::Thread:

List of all members.

Public Types
enum	EPriorityClass {   IdlePriorityClass, BelowNormalPriorityClass, NormalPriorityClass, AboveNormalPriorityClass,   HighPriorityClass, RealtimePriorityClass }
	Thread priority class. More...
enum	EPriority {   IdlePriority, LowestPriority, BelowNormalPriority, NormalPriority,   AboveNormalPriority, HighestPriority, TimeCriticalPriority }
	Thread priority within the priority class it is in. More...
Public Member Functions
PLCORE_API	Thread ()
	Constructor.
PLCORE_API	Thread (ThreadFunction *pThreadFunction)
	Constructor.
PLCORE_API	Thread (THREADFUNCTION pThreadFunction, void *pData)
	Constructor.
PLCORE_API	Thread (handle nThreadID)
	Constructor.
virtual PLCORE_API	~Thread ()
	Destructor.
String	GetName () const
	Returns the name of the thread.
void	SetName (const String &sName)
	Sets the name of the thread.
handle	GetID () const
	Returns the unique system ID of the thread.
bool	IsActive () const
	Returns whether the thread is active.
bool	Start ()
	Starts the execution of the thread.
bool	Terminate ()
	Stops the execution of the thread.
bool	Join ()
	Waits until the thread has been stopped.
bool	Join (uint64 nTimeout)
	Waits until the thread has been stopped.
EPriorityClass	GetPriorityClass () const
	Returns the priority class the thread is in.
bool	SetPriorityClass (EPriorityClass nPriorityClass=NormalPriorityClass)
	Sets the priority class the thread is in.
EPriority	GetPriority () const
	Returns the thread priority within the priority class it is in.
bool	SetPriority (EPriority nPriority=NormalPriority)
	Sets the thread priority within the priority class it is in.
virtual PLCORE_API int	Run () override
	Function to be executed.

---

Detailed Description

Thread class.

Note:

• Implementation of the bridge design pattern, this class is the abstraction

---

Member Enumeration Documentation

enum PLCore::Thread::EPriorityClass

Thread priority class.

Enumerator:

IdlePriorityClass	Idle priority class
BelowNormalPriorityClass	Below normal priority class
NormalPriorityClass	Normal priority class (default)
AboveNormalPriorityClass	Above normal priority class
HighPriorityClass	High priority class
RealtimePriorityClass	Realtime priority class (ONLY use this if you REALLY need it!)

enum PLCore::Thread::EPriority

Thread priority within the priority class it is in.

Enumerator:

IdlePriority	Idle priority
LowestPriority	Lowest priority
BelowNormalPriority	Below normal priority
NormalPriority	Normal priority (default)
AboveNormalPriority	Above normal priority
HighestPriority	Highest priority
TimeCriticalPriority	Time critical priority

---

Constructor & Destructor Documentation

PLCORE_API PLCore::Thread::Thread

(

)

Constructor.

PLCORE_API PLCore::Thread::Thread

(

ThreadFunction *

pThreadFunction

)

Constructor.

Parameters:

[in]

pThreadFunction

Pointer to the thread function, can be a null pointer

PLCORE_API PLCore::Thread::Thread	(	THREADFUNCTION	pThreadFunction,
		void *	pData
	)

Constructor.

Parameters:

[in]	pThreadFunction	Pointer to a static thread function, can be a null pointer
[in]	pData	Data to be passed to the thread function, can be a null pointer

PLCORE_API PLCore::Thread::Thread

(

handle

nThreadID

)

Constructor.

Parameters:

[in]

nThreadID

A system specific thread ID, NULL_HANDLE for current thread

virtual PLCORE_API PLCore::Thread::~Thread

(

)

[virtual]

Destructor.

---

Member Function Documentation

String PLCore::Thread::GetName

(

)

const [inline]

Returns the name of the thread.

Returns:

Thread name

Remarks:

The thread name is not used internally, it's for user usage only and especially for debugging purposes quite useful. It's recommended to give threads unique names. By default, no thread name is set.

void PLCore::Thread::SetName

(

const String &

sName

)

[inline]

Sets the name of the thread.

Parameters:

[in]

sName

Thread name

See also:

• GetName()

handle PLCore::Thread::GetID

(

)

const [inline]

Returns the unique system ID of the thread.

Returns:

Thread ID

bool PLCore::Thread::IsActive

(

)

const [inline]

Returns whether the thread is active.

Returns:

'true' if the thread is active, else 'false'

bool PLCore::Thread::Start

(

)

[inline]

Starts the execution of the thread.

Returns:

'true' if the thread could be started

bool PLCore::Thread::Terminate

(

)

[inline]

Stops the execution of the thread.

Returns:

'true' if the thread could be stopped

Remarks:

Terminates the thread ungracefully (does not allow proper thread clean up!). Instead of using this function you should signal the thread and wait until it has quit by itself. The internal platform implementation may or may not accept this violent act. For example, Androids Bionic doesn't support it and a call of this method will have no effect at all.

bool PLCore::Thread::Join

(

)

[inline]

Waits until the thread has been stopped.

Returns:

'true' if the thread has been stopped

Note:

• It's recommended to use the join version with a timeout instead of this function to ensure that the thread is stopped within a defined time (no deadlock's)

bool PLCore::Thread::Join

(

uint64

nTimeout

)

[inline]

Waits until the thread has been stopped.

Parameters:

[in]

nTimeout

Time in milliseconds to wait

Returns:

'true' if the thread has been stopped

Thread::EPriorityClass PLCore::Thread::GetPriorityClass

(

)

const [inline]

Returns the priority class the thread is in.

Returns:

The priority class the thread is in

Remarks:

The thread priority settings are only 'hints' for the OS how to deal with the thread. They are no 'facts' and may differ from OS to OS.

bool PLCore::Thread::SetPriorityClass

(

EPriorityClass

nPriorityClass = NormalPriorityClass

)

[inline]

Sets the priority class the thread is in.

Parameters:

[in]

nPriorityClass

New priority class the thread is in

Returns:

'true' if all went fine, else 'false'

See also:

• GetPriorityClass()

Thread::EPriority PLCore::Thread::GetPriority

(

)

const [inline]

Returns the thread priority within the priority class it is in.

Returns:

The thread priority within the priority class it is in

See also:

• GetPriorityClass()

bool PLCore::Thread::SetPriority

(

EPriority

nPriority = NormalPriority

)

[inline]

Sets the thread priority within the priority class it is in.

Parameters:

[in]

nPriority

New thread priority within the priority class it is in

Returns:

'true' if all went fine, else 'false'

See also:

• GetPriorityClass()

virtual PLCORE_API int PLCore::Thread::Run

(

)

[override, virtual]

Function to be executed.

Returns:

Return value after execution

Implements PLCore::ThreadFunction.

---

The documentation for this class was generated from the following files:

• Thread.h
• Thread.inl
