PLCore::Heap< KeyType, ValueType > Class Template Reference

Abstract heap class template (priority queue) More...

#include <Heap.h>

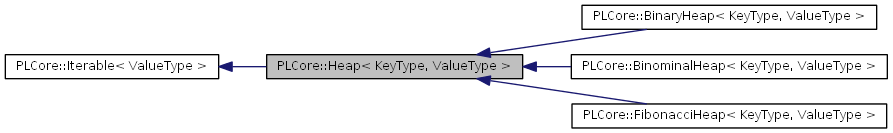

Inheritance diagram for PLCore::Heap< KeyType, ValueType >:

List of all members.

Public Member Functions
virtual void	Clear ()=0
	Clears the heap.
virtual bool	IsEmpty () const =0
	Checks whether the heap is complete empty.
virtual uint32	GetNumOfElements () const =0
	Returns the number of elements.
virtual bool	Add (const KeyType &Key, const ValueType &Value)=0
	Adds a new element to the heap.
virtual bool	GetTop (ValueType *pValue=nullptr, KeyType *pKey=nullptr) const =0
	Returns the value of the top element.
virtual bool	ExtractTop (ValueType *pValue=nullptr, KeyType *pKey=nullptr)=0
	Returns the value of the top element and removes it from the heap.

---

Detailed Description

template<class KeyType, class ValueType>
class PLCore::Heap< KeyType, ValueType >

Abstract heap class template (priority queue)

Remarks:

*    Usage example:
*    // Create binary heap object with integer as key and pointer to characters
*    // as value
*    Heap<int, char*> cHeap;
*    // Fill heap
*    cHeap.Insert(1, "Second");  // Insert "Second"
*    cHeap.Insert(0, "First");   // Insert "First"
*    cHeap.Insert(2, "Third");   // Insert "Third"
*    // Read out heap
*    char *pT;
*    cHeap.Remove(pT, 0);  // Returns "First"
*    cHeap.Remove(pT, 0);  // Returns "Second"
*    cHeap.Remove(pT, 0);  // Returns "Third"
*

---

Member Function Documentation

template<class KeyType, class ValueType>

virtual void PLCore::Heap< KeyType, ValueType >::Clear

(

)

[pure virtual]

Clears the heap.

Implemented in PLCore::BinaryHeap< KeyType, ValueType, Comparer >, PLCore::BinaryHeap< float, SceneHierarchyNode * >, PLCore::BinaryHeap< float, GraphNode * >, PLCore::BinaryHeap< float, SceneNode * >, PLCore::FibonacciHeap< KeyType, ValueType, Comparer >, and PLCore::BinominalHeap< KeyType, ValueType, Comparer >.

template<class KeyType, class ValueType>

virtual bool PLCore::Heap< KeyType, ValueType >::IsEmpty

(

)

const [pure virtual]

Checks whether the heap is complete empty.

Returns:

'true' if the heap is empty, else 'false'

Implemented in PLCore::BinaryHeap< KeyType, ValueType, Comparer >, PLCore::BinaryHeap< float, SceneHierarchyNode * >, PLCore::BinaryHeap< float, GraphNode * >, PLCore::BinaryHeap< float, SceneNode * >, PLCore::FibonacciHeap< KeyType, ValueType, Comparer >, and PLCore::BinominalHeap< KeyType, ValueType, Comparer >.

template<class KeyType, class ValueType>

virtual uint32 PLCore::Heap< KeyType, ValueType >::GetNumOfElements

(

)

const [pure virtual]

Returns the number of elements.

Returns:

Number of container elements

Implemented in PLCore::BinaryHeap< KeyType, ValueType, Comparer >, PLCore::BinaryHeap< float, SceneHierarchyNode * >, PLCore::BinaryHeap< float, GraphNode * >, PLCore::BinaryHeap< float, SceneNode * >, PLCore::FibonacciHeap< KeyType, ValueType, Comparer >, and PLCore::BinominalHeap< KeyType, ValueType, Comparer >.

template<class KeyType, class ValueType>

virtual bool PLCore::Heap< KeyType, ValueType >::Add	(	const KeyType &	Key,
		const ValueType &	Value
	)		[pure virtual]

Adds a new element to the heap.

Parameters:

[in]	Key	The key of the new element
[in]	Value	The value of the new element

Returns:

'true' if all went fine, else 'false'

Note:

• You have to check by yourself whether there's already such a key within the heap

Implemented in PLCore::BinaryHeap< KeyType, ValueType, Comparer >, PLCore::BinaryHeap< float, SceneHierarchyNode * >, PLCore::BinaryHeap< float, GraphNode * >, PLCore::BinaryHeap< float, SceneNode * >, PLCore::FibonacciHeap< KeyType, ValueType, Comparer >, and PLCore::BinominalHeap< KeyType, ValueType, Comparer >.

template<class KeyType, class ValueType>

virtual bool PLCore::Heap< KeyType, ValueType >::GetTop	(	ValueType *	pValue = nullptr,
		KeyType *	pKey = nullptr
	)		const [pure virtual]

Returns the value of the top element.

Parameters:

[out]	pValue	If not a null pointer, this will receive the value of the top element
[out]	pKey	If not a null pointer, this will receive the key of the top element

Returns:

'true' if all went fine, else 'false'

Implemented in PLCore::BinaryHeap< KeyType, ValueType, Comparer >, PLCore::BinaryHeap< float, SceneHierarchyNode * >, PLCore::BinaryHeap< float, GraphNode * >, PLCore::BinaryHeap< float, SceneNode * >, PLCore::FibonacciHeap< KeyType, ValueType, Comparer >, and PLCore::BinominalHeap< KeyType, ValueType, Comparer >.

template<class KeyType, class ValueType>

virtual bool PLCore::Heap< KeyType, ValueType >::ExtractTop	(	ValueType *	pValue = nullptr,
		KeyType *	pKey = nullptr
	)		[pure virtual]

Returns the value of the top element and removes it from the heap.

Parameters:

[out]	pValue	If not a null pointer, this will receive the value of the top element
[out]	pKey	If not a null pointer, this will receive the key of the top element

Returns:

'true' if all went fine, else 'false'

Implemented in PLCore::BinaryHeap< KeyType, ValueType, Comparer >, PLCore::BinaryHeap< float, SceneHierarchyNode * >, PLCore::BinaryHeap< float, GraphNode * >, PLCore::BinaryHeap< float, SceneNode * >, PLCore::FibonacciHeap< KeyType, ValueType, Comparer >, and PLCore::BinominalHeap< KeyType, ValueType, Comparer >.

---

The documentation for this class was generated from the following file:

• Heap.h
