PLSound::SNSound Class Reference

Scene node which is able to playback a sound. More...

#include <SNSound.h>

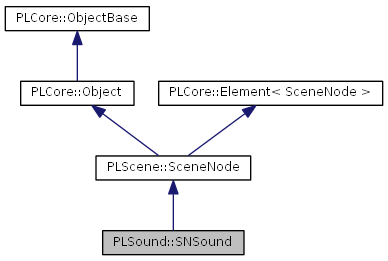

Inheritance diagram for PLSound::SNSound:

List of all members.

Public Types
enum	EFlags { Stream = 1<<10, No3D = 1<<11, NoLoop = 1<<12, NoStartPlayback = 1<<13 }
	Scene node flags (SceneNode flags extension) More...
Public Member Functions
PLSOUND_API float	GetVolume () const
PLSOUND_API void	SetVolume (float fValue)
PLSOUND_API float	GetPitch () const
PLSOUND_API void	SetPitch (float fValue)
PLSOUND_API float	GetReferenceDistance () const
PLSOUND_API void	SetReferenceDistance (float fValue)
PLSOUND_API float	GetMaxDistance () const
PLSOUND_API void	SetMaxDistance (float fValue)
PLSOUND_API float	GetRolloffFactor () const
PLSOUND_API void	SetRolloffFactor (float fValue)
virtual PLSOUND_API void	SetFlags (PLCore::uint32 nValue) override
PLSOUND_API	SNSound ()
	Default constructor.
virtual PLSOUND_API	~SNSound ()
	Destructor.
PLSOUND_API Source *	GetSoundSource () const
	Returns the sound source.
Protected Member Functions
virtual PLSOUND_API void	InitFunction () override
	This function is called when the scene node gets initialized.
Protected Attributes
PLCore::String	m_sSound
float	m_fVolume
float	m_fPitch
float	m_fReferenceDistance
float	m_fMaxDistance
float	m_fRolloffFactor

---

Detailed Description

Scene node which is able to playback a sound.

Note:

• For sources with 3D spatialization, do only use one channel buffers because not each sound backend may be capable to use 3D spatialization for buffers with multiple channels

---

Member Enumeration Documentation

enum PLSound::SNSound::EFlags

Scene node flags (SceneNode flags extension)

Enumerator:

Stream	Stream the file (recommended for large files!)
No3D	No 3D sound
NoLoop	Do not loop the sound playback
NoStartPlayback	Do not start sound playback after scene node initialization

Reimplemented from PLScene::SceneNode.

---

Constructor & Destructor Documentation

PLSOUND_API PLSound::SNSound::SNSound

(

)

Default constructor.

virtual PLSOUND_API PLSound::SNSound::~SNSound

(

)

[virtual]

Destructor.

---

Member Function Documentation

PLSOUND_API float PLSound::SNSound::GetVolume

(

)

const

PLSOUND_API void PLSound::SNSound::SetVolume

(

float

fValue

)

PLSOUND_API float PLSound::SNSound::GetPitch

(

)

const

PLSOUND_API void PLSound::SNSound::SetPitch

(

float

fValue

)

PLSOUND_API float PLSound::SNSound::GetReferenceDistance

(

)

const

PLSOUND_API void PLSound::SNSound::SetReferenceDistance

(

float

fValue

)

PLSOUND_API float PLSound::SNSound::GetMaxDistance

(

)

const

PLSOUND_API void PLSound::SNSound::SetMaxDistance

(

float

fValue

)

PLSOUND_API float PLSound::SNSound::GetRolloffFactor

(

)

const

PLSOUND_API void PLSound::SNSound::SetRolloffFactor

(

float

fValue

)

virtual PLSOUND_API void PLSound::SNSound::SetFlags

(

PLCore::uint32

nValue

)

[override, virtual]

Reimplemented from PLScene::SceneNode.

PLSOUND_API Source* PLSound::SNSound::GetSoundSource

(

)

const

Returns the sound source.

Returns:

The sound source, can be a null pointer

virtual PLSOUND_API void PLSound::SNSound::InitFunction

(

)

[override, protected, virtual]

This function is called when the scene node gets initialized.

Reimplemented from PLScene::SceneNode.

---

Member Data Documentation

PLCore::String PLSound::SNSound::m_sSound [protected]

Filename of the sound which should be played (full path, supported file formats are API dependent)

float PLSound::SNSound::m_fVolume [protected]

Volume (value from 0.0-1.0 -> 0.0 = silence, 1.0 = full volume)

float PLSound::SNSound::m_fPitch [protected]

Pitch multiplier (pitch<1.0=slower/pitch=1.0=normal/pitch>1.0=faster)

float PLSound::SNSound::m_fReferenceDistance [protected]

Used to increase or decrease the range of a source by decreasing or increasing the attenuation, respectively

float PLSound::SNSound::m_fMaxDistance [protected]

Defines a distance beyond which the source will not be further attenuated by distance

float PLSound::SNSound::m_fRolloffFactor [protected]

This will scale the distance attenuation over the applicable range

---

The documentation for this class was generated from the following file:

• SNSound.h
