PLScene::SNPortal Class Reference

Abstract portal scene node. More...

#include <SNPortal.h>

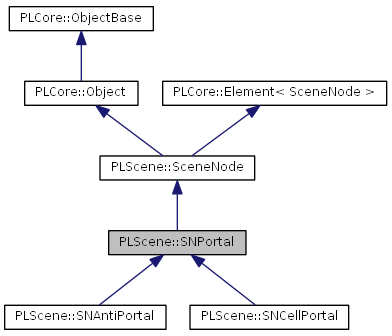

Inheritance diagram for PLScene::SNPortal:

List of all members.

Public Types
enum	EDebugFlags { DebugNoPortalPolygon = 1<<8, DebugPortalVertices = 1<<9 }
	Scene node debug flags (SceneNode debug flags extension) More...
Public Member Functions
PLS_API PLMath::Polygon &	GetPolygon ()
	Returns the portal polygon.
PLS_API void	UpdatePolygon ()
	Call this function after you manipulated the portal polygon.
PLS_API const PLMath::Polygon &	GetContainerPolygon ()
	Returns the portal polygon in container space.
PLS_API const PLMath::Matrix3x4 &	GetWarpMatrix ()
	Returns the warp matrix.
virtual PLS_API void	DrawDebug (PLRenderer::Renderer &cRenderer, const VisNode *pVisNode=nullptr) override
	This function is called when the debug parts of the scene are drawn.
Protected Member Functions
PLS_API	SNPortal ()
	Default constructor.
virtual PLS_API	~SNPortal ()
	Destructor.
Protected Attributes
PLCore::uint8	m_nInternalPortalFlags

---

Detailed Description

Abstract portal scene node.

Note:

• Please note: A portal may or may not let light and shadows pass through it. This depends on the used scene renderer, so, by default proper portal scene node flags are set so light and shadows may always pass as default.

---

Member Enumeration Documentation

enum PLScene::SNPortal::EDebugFlags

Scene node debug flags (SceneNode debug flags extension)

Enumerator:

DebugNoPortalPolygon	Do not draw the (pink) portal polygon
DebugPortalVertices	Draw the (white) portal vertices

---

Constructor & Destructor Documentation

PLS_API PLScene::SNPortal::SNPortal

(

)

[protected]

Default constructor.

virtual PLS_API PLScene::SNPortal::~SNPortal

(

)

[protected, virtual]

Destructor.

---

Member Function Documentation

PLS_API PLMath::Polygon& PLScene::SNPortal::GetPolygon

(

)

Returns the portal polygon.

Returns:

The portal polygon

Note:

• Call UpdatePolygon() after you manipulated the portal polygon

PLS_API void PLScene::SNPortal::UpdatePolygon

(

)

Call this function after you manipulated the portal polygon.

PLS_API const PLMath::Polygon& PLScene::SNPortal::GetContainerPolygon

(

)

Returns the portal polygon in container space.

Returns:

The portal polygon in container space

Note:

• This container space portal polygon is rebuild automatically if required

PLS_API const PLMath::Matrix3x4& PLScene::SNPortal::GetWarpMatrix

(

)

Returns the warp matrix.

Returns:

The warp matrix

Remarks:

The warp matrix transforms from this cell space into target cell space.

Note:

• Is updated automatically

Reimplemented in PLScene::SNCellPortal.

virtual PLS_API void PLScene::SNPortal::DrawDebug	(	PLRenderer::Renderer &	cRenderer,
		const VisNode *	pVisNode = nullptr
	)		[override, virtual]

This function is called when the debug parts of the scene are drawn.

Parameters:

[in]	cRenderer	The used renderer
[in]	pVisNode	The current visibility node of this scene node, can be a null pointer

Note:

• Should only be called if the 'UseDrawDebug' draw flag and the 'DebugEnabled' debug flag is set

• Beside drawing scene node stuff, the default implementation emits the SignalDrawDebug signal

See also:

• DrawPre()

Reimplemented from PLScene::SceneNode.

---

Member Data Documentation

PLCore::uint8 PLScene::SNPortal::m_nInternalPortalFlags [protected]

Internal portal flags

---

The documentation for this class was generated from the following file:

• SNPortal.h
