Scene node modifier class moving the position of a scene node along a given path. More...
#include <SNMPositionPath.h>

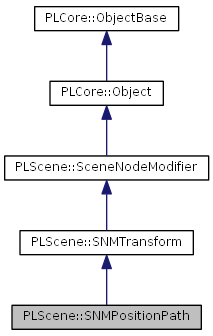

Inheritance diagram for PLScene::SNMPositionPath:
Public Types | |
| enum | EInterpolation { Linear = 0, CatmullRomCurve = 1 } |
| Interpolation type. More... | |
Public Member Functions | |
| pl_enum (EInterpolation) pl_enum_value(Linear | |
| Linear interpolation | pl_enum_value (CatmullRomCurve,"Catmull rom curve interpolation") pl_enum_endenum EFlags |
| Scene node modifier flags (SceneNodeModifier flags extension) | |
| PLS_API | SNMPositionPath (SceneNode &cSceneNode) |
| Constructor. | |
| virtual PLS_API | ~SNMPositionPath () |
| Destructor. | |
| PLS_API PLMath::GraphPath * | GetGraphPath () const |
| Returns the used graph path. | |
Protected Member Functions | |
| virtual PLS_API void | OnActivate (bool bActivate) override |
| Called when the scene node modifier has been activated or deactivated. | |
Detailed Description
Scene node modifier class moving the position of a scene node along a given path.
- Remarks:
- There are two major strategies how to move along a path:
- By giving the percentage along the whole path, 0-1. This is the default setting and has the advantage that the movement speed is constant and not depend of the length of each path segment.
- By giving the percentage by node index, 0-<number of="" nodes>="">. By using this approach the movement speed on the path may vary, this depends on whether or not all path segments have the same length. Beside the major strategy, it's possible to set the interpolation type.
Member Enumeration Documentation
Constructor & Destructor Documentation
| PLS_API PLScene::SNMPositionPath::SNMPositionPath | ( | SceneNode & | cSceneNode | ) |
Constructor.
- Parameters:
-
[in] cSceneNode Owner scene node
| virtual PLS_API PLScene::SNMPositionPath::~SNMPositionPath | ( | ) | [virtual] |
Destructor.
Member Function Documentation
| Linear interpolation PLScene::SNMPositionPath::pl_enum_value | ( | CatmullRomCurve | , |
| "Catmull rom curve interpolation" | |||
| ) | [inline] |
Scene node modifier flags (SceneNodeModifier flags extension)
< 'Progress' defined by 'node index' instead or 'percentage along path'
| PLS_API PLMath::GraphPath* PLScene::SNMPositionPath::GetGraphPath | ( | ) | const |
Returns the used graph path.
- Returns:
- The used graph path, can be a null pointer
| virtual PLS_API void PLScene::SNMPositionPath::OnActivate | ( | bool | bActivate | ) | [override, protected, virtual] |
Called when the scene node modifier has been activated or deactivated.
- Parameters:
-
[in] bActivate 'true' if the scene node modifier is now active, else 'false'
- Note:
- The scene node "Inactive"-flag as well as the "Frozen"-flag are taken into account
- 'bActivate' will be 'true' if the scene node modifier AND the owner scene node AND it's parent scene container (recursive!) are active
- 'bActivate' will be 'false' if the scene node modifier OR the owner scene node OR it's parent scene container (recursive!) is inactive
- The default implementation is empty
Reimplemented from PLScene::SceneNodeModifier.
The documentation for this class was generated from the following file:
