Abstract renderer buffer resource base class. More...

#include <Buffer.h>

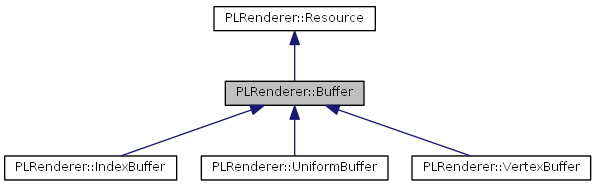

Inheritance diagram for PLRenderer::Buffer:

[legend]

Public Member Functions
virtual PLRENDERER_API	~Buffer ()
	Destructor.
PLCore::uint32	GetNumOfElements () const
	Returns the number of buffer elements.
PLCore::uint32	GetSize () const
	Returns the buffer size (in bytes)
Usage::Enum	GetUsage () const
	Returns the usage flag.
bool	IsManaged () const
	Returns whether the buffer is managed or not.
PLCore::uint16	GetLockCount () const
	Returns the lock count.
virtual bool	IsAllocated () const =0
	Returns whether the buffer is allocated or not.
virtual bool	Allocate (PLCore::uint32 nElements, Usage::Enum nUsage=Usage::Dynamic, bool bManaged=true, bool bKeepData=false)=0
	Allocates the buffer.
virtual bool	Clear ()=0
	Clears the buffer.
virtual void *	Lock (PLCore::uint32 nFlag=Lock::ReadWrite)=0
	Locks the buffer.
virtual void *	GetData ()=0
	Returns the buffer data.
virtual bool	Unlock ()=0
	Unlocks the buffer.
Protected Member Functions
PLRENDERER_API	Buffer (Renderer &cRenderer, EType nType)
	Constructor.
bool	ForceUnlock ()
	Forces immediately buffer unlock.
Protected Attributes
PLCore::uint32	m_nElements
PLCore::uint32	m_nSize
Usage::Enum	m_nUsage
bool	m_bManaged
PLCore::uint16	m_nLockCount
PLCore::uint64	m_nLockStartTime

Detailed Description

Abstract renderer buffer resource base class.

Constructor & Destructor Documentation

virtual PLRENDERER_API PLRenderer::Buffer::~Buffer ( ) [virtual]

Destructor.

PLRENDERER_API PLRenderer::Buffer::Buffer	(	Renderer &	cRenderer,
		EType	nType
	)		`[protected]`

Constructor.

Parameters:

[in]	cRenderer	Owner renderer
[in]	nType	Resource type

Member Function Documentation

PLCore::uint32 PLRenderer::Buffer::GetNumOfElements ( ) const [inline]

Returns the number of buffer elements.

Returns:: Number of buffer elements

PLCore::uint32 PLRenderer::Buffer::GetSize ( ) const [inline]

Returns the buffer size (in bytes)

Returns the buffer size.

Returns:: Buffer size (in bytes)

Usage::Enum PLRenderer::Buffer::GetUsage ( ) const [inline]

Returns the usage flag.

Returns:: Usage flag

bool PLRenderer::Buffer::IsManaged ( ) const [inline]

Returns whether the buffer is managed or not.

Returns:: 'true' if the buffer is managed, else 'false'

See also:

Allocate()

PLCore::uint16 PLRenderer::Buffer::GetLockCount ( ) const [inline]

Returns the lock count.

Returns:: 0 if the buffer is currently unlocked, else the lock count is returned

virtual bool PLRenderer::Buffer::IsAllocated ( ) const [pure virtual]

Returns whether the buffer is allocated or not.

Returns:: 'true' if the buffer is allocated, else 'false'

virtual bool PLRenderer::Buffer::Allocate	(	PLCore::uint32	nElements,
		Usage::Enum	nUsage = `Usage::Dynamic`,
		bool	bManaged = `true`,
		bool	bKeepData = `false`
	)		`[pure virtual]`

Allocates the buffer.

Parameters:

[in]	nElements	Number of elements
[in]	nUsage	Usage flag indicating the expected application usage pattern of the data store
[in]	bManaged	If the render buffer is managed, for instance shadow buffers (system memory copies that allow for faster reads) are used internally.
[in]	bKeepData	Should the current buffer content be restored after the buffer was reallocated?

Returns:: 'true' if all went fine, else 'false'

Note:

If the buffer is already allocated, it is reallocated if required
When allocating a vertex buffer, you first have to define the vertex attributes before allocating the vertex buffer
After an index buffer is allocated, you can't edit the index element type
nUsage is useful for drivers because it enables them to decide where to place the buffer. In general, static buffers are placed in video memory and dynamic buffers are placed in accelerated graphics port (AGP) memory.
If the usage is 'Usage::Software', 'bManaged' will have no effect because the data is only hold within the system memory
It the buffer is still locked, it's forced to be unlocked immediately if all went fine

virtual bool PLRenderer::Buffer::Clear ( ) [pure virtual]

Clears the buffer.

Returns:: 'true' if all went fine, else 'false'

Note:

It the buffer is still locked, it's forced to be unlocked immediately if all went fine

virtual void* PLRenderer::Buffer::Lock ( PLCore::uint32 nFlag = Lock::ReadWrite ) [pure virtual]

Locks the buffer.

Parameters:

[in] nFlag Access flag which describes the operations which should be performed on the locked buffer. This can be any member of the lock enumeration type.

Returns:: The data of the locked buffer, a null pointer on error (Maybe the buffer isn't allocated?)

Note:

Each time you lock a buffer, you have to unlock it after you finished your work, too!
If the buffer is currently locked, do not call functions like Clear(), Allocate() etc., such functions will force the buffer to be unlocked and your pointers will become invalid!
Do NOT delete the returned data!

virtual void* PLRenderer::Buffer::GetData ( ) [pure virtual]

Returns the buffer data.

Returns:: The data of the locked buffer, a null pointer on error (Maybe the buffer isn't locked?)

Note:

This function will only work if the buffer is locked (see Lock())
Note that the vertex element type size depends on the used API. For instance color, OpenGL will use 4*float to save the color value, but Direct3D will handle colors as PLCore::uint32! Therefore you should use this function carefully! We recommend to use the special functions provided by the vertex buffer interface to manipulate the vertex buffer data.
Do NOT delete the returned data!

Implemented in PLRenderer::VertexBuffer, PLRenderer::IndexBuffer, and PLRenderer::UniformBuffer.

virtual bool PLRenderer::Buffer::Unlock ( ) [pure virtual]

Unlocks the buffer.
