PLPhysics::Sensor Class Reference

Abstract PL physics sensor base class. More...

#include <Sensor.h>

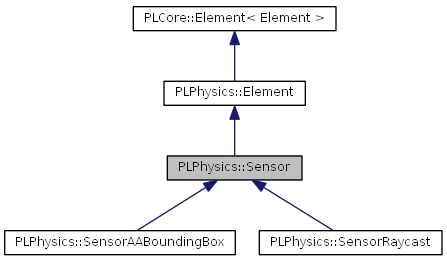

Inheritance diagram for PLPhysics::Sensor:

List of all members.

Classes
struct	BodyInfo
	Holds information about a detected body. More...
Public Types
enum	EFlags { ClosestBody = 1<<0 }
	Flags. More...
Public Member Functions
virtual PLPHYSICS_API	~Sensor ()
	Destructor.
PLPHYSICS_API PLCore::uint32	GetFlags () const
	Returns the flags.
PLPHYSICS_API void	SetFlags (PLCore::uint32 nFlags=0)
	Sets the flags.
PLPHYSICS_API void	ClearHitList ()
	Clears the list of hit bodies.
PLPHYSICS_API PLCore::uint32	GetNumOfHitBodies () const
	Returns the number of hit physics bodies.
PLPHYSICS_API const BodyInfo *	GetHitBody (PLCore::uint32 nIndex) const
	Returns a hit physics body by index.
PLPHYSICS_API const BodyInfo *	GetClosestBody () const
	Returns the closest hit physics body.
virtual PLPHYSICS_API PLCore::uint32	Check ()
	Performs an immediate sensor check.
virtual PLPHYSICS_API bool	IsBody () const override
	Returns whether or not this is a body.
virtual PLPHYSICS_API bool	IsJoint () const override
	Returns whether or not this is a joint.
virtual PLPHYSICS_API bool	IsSensor () const override
	Returns whether or not this is a sensor.
Protected Member Functions
PLPHYSICS_API	Sensor (World &cWorld, PLCore::uint32 nFlags=0)
	Constructor.
PLPHYSICS_API BodyInfo &	GetFreeBodyInfo ()
	Returns a free body information.
PLPHYSICS_API void	FreeBodyInfo (BodyInfo &cBodyInfo)
	Frees a body information.
virtual PLPHYSICS_API bool	Callback (Body &cBody, float fDistance, const PLMath::Vector3 &vNormal, int nCollisionID)
	Sensor callback function.

---

Detailed Description

Abstract PL physics sensor base class.

Remarks:

Can for instance be used for simple collision detection.

---

Member Enumeration Documentation

enum PLPhysics::Sensor::EFlags

Flags.

Enumerator:

ClosestBody

A performance hint that we are looking for the closest body

---

Constructor & Destructor Documentation

virtual PLPHYSICS_API PLPhysics::Sensor::~Sensor

(

)

[virtual]

Destructor.

PLPHYSICS_API PLPhysics::Sensor::Sensor	(	World &	cWorld,
		PLCore::uint32	nFlags = 0
	)		[protected]

Constructor.

Parameters:

[in]	cWorld	World this sensor is in
[in]	nFlags	Flags (see EFlags)

---

Member Function Documentation

PLPHYSICS_API PLCore::uint32 PLPhysics::Sensor::GetFlags

(

)

const

Returns the flags.

Returns:

Flags (see EFlags)

PLPHYSICS_API void PLPhysics::Sensor::SetFlags

(

PLCore::uint32

nFlags = 0

)

Sets the flags.

Parameters:

[in]

nFlags

Flags (see EFlags)

PLPHYSICS_API void PLPhysics::Sensor::ClearHitList

(

)

Clears the list of hit bodies.

PLPHYSICS_API PLCore::uint32 PLPhysics::Sensor::GetNumOfHitBodies

(

)

const

Returns the number of hit physics bodies.

Returns:

The number of hit physics bodies

PLPHYSICS_API const BodyInfo* PLPhysics::Sensor::GetHitBody

(

PLCore::uint32

nIndex

)

const

Returns a hit physics body by index.

Parameters:

[in]

nIndex

Index of the hit physics body

Returns:

The hit physics body information, a null pointer on error (do NOT store a pointer on it!)

PLPHYSICS_API const BodyInfo* PLPhysics::Sensor::GetClosestBody

(

)

const

Returns the closest hit physics body.

Returns:

The closest hit physics body information, a null pointer on error (do NOT store a pointer on it!)

virtual PLPHYSICS_API PLCore::uint32 PLPhysics::Sensor::Check

(

)

[virtual]

Performs an immediate sensor check.

Returns:

The number of hit physics bodies

virtual PLPHYSICS_API bool PLPhysics::Sensor::IsBody

(

)

const [override, virtual]

Returns whether or not this is a body.

Returns:

'true' if this is a body, else 'false'

Implements PLPhysics::Element.

virtual PLPHYSICS_API bool PLPhysics::Sensor::IsJoint

(

)

const [override, virtual]

Returns whether or not this is a joint.

Returns:

'true' if this is a joint, else 'false'

Implements PLPhysics::Element.

virtual PLPHYSICS_API bool PLPhysics::Sensor::IsSensor

(

)

const [override, virtual]

Returns whether or not this is a sensor.

Returns:

'true' if this is a sensor, else 'false'

Implements PLPhysics::Element.

PLPHYSICS_API BodyInfo& PLPhysics::Sensor::GetFreeBodyInfo

(

)

[protected]

Returns a free body information.

Returns:

Free body information

Note:

• Use FreeBodyInfo() if you no longer need this body information

PLPHYSICS_API void PLPhysics::Sensor::FreeBodyInfo

(

BodyInfo &

cBodyInfo

)

[protected]

Frees a body information.

Parameters:

[in]

cBodyInfo

Body information to free

virtual PLPHYSICS_API bool PLPhysics::Sensor::Callback	(	Body &	cBody,
		float	fDistance,
		const PLMath::Vector3 &	vNormal,
		int	nCollisionID
	)		[protected, virtual]

Sensor callback function.

Parameters:

[in]	cBody	Detected physics body
[in]	fDistance	Distance
[in]	vNormal	Hit normal
[in]	nCollisionID	Collision ID

Returns:

'true' to continue the sensor check, 'false' if stop it right now

Remarks:

The default implementation just adds the found body into a result list.

---

The documentation for this class was generated from the following file:

• Sensor.h
