PLInput::WiiMote Class Reference

WiiMote input device. More...

#include <WiiMote.h>

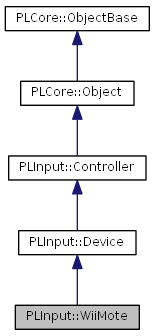

Inheritance diagram for PLInput::WiiMote:

List of all members.

Public Types
enum	EProductID {   VendorID = 0x057e, ProductID = 0x0306, DeviceClass0 = 0x04, DeviceClass1 = 0x25,   DeviceClass2 = 0x00 }
enum	EReport {   ReportStatus = 0x20, ReportReadMemory = 0x21, ReportButtons = 0x30, ReportButtonsAccel = 0x31,   ReportButtonsAccelIR = 0x33, ReportButtonsAccelExt = 0x35, ReportButtonsAccelIRExt = 0x37 }
	Report type. More...
enum	EIRMode { IROff = 0x00, IRBasic = 0x01, IRExtended = 0x03, IRFull = 0x05 }
	Infrared sensor mode. More...
enum	EExtension { ExtNone = 0x0000, ExtNunchuk = 0xfefe, ExtClassic = 0xfdfd, ExtPartiallyInserted = 0xffff }
	WiiMote extension. More...
Public Member Functions
PLINPUT_API	WiiMote (const PLCore::String &sName, DeviceImpl *pImpl)
	Constructor.
virtual PLINPUT_API	~WiiMote ()
	Destructor.
PLINPUT_API EReport	GetReportMode () const
	Get report mode.
PLINPUT_API void	SetReportMode (EReport nReportMode, bool bContinuous=false)
	Set report mode.
PLINPUT_API EIRMode	GetIRMode () const
	Get infrared mode.
PLINPUT_API void	SetIRMode (EIRMode nIRMode)
	Set infrared mode.
PLINPUT_API EExtension	GetExtension () const
	Get extension.
PLINPUT_API PLCore::uint8	GetBattery () const
	Get battery state.
PLINPUT_API void	Calibrate ()
	Calibrate device.
virtual PLINPUT_API void	UpdateOutputControl (Control *pControl) override
	Update output controls (LEDs, effects etc.)

---

Detailed Description

WiiMote input device.

Remarks:

This class supports the following device backend types:

• ConnectionDevice

---

Member Enumeration Documentation

enum PLInput::WiiMote::EProductID

Enumerator:

VendorID	'Nintendo'
ProductID	'Wiimote'
DeviceClass0
DeviceClass1
DeviceClass2

enum PLInput::WiiMote::EReport

Report type.

Enumerator:

ReportStatus	Status report
ReportReadMemory	Data from memory
ReportButtons	Buttons
ReportButtonsAccel	Buttons and acceleration
ReportButtonsAccelIR	Buttons, acceleration and IR (extended)
ReportButtonsAccelExt	Buttons, acceleration and extension
ReportButtonsAccelIRExt	Buttons, acceleration, IR (basic) and extension

enum PLInput::WiiMote::EIRMode

Infrared sensor mode.

Enumerator:

IROff	IR off
IRBasic	Basic IR mode
IRExtended	Extended IR mode
IRFull	Full IR mode

enum PLInput::WiiMote::EExtension

WiiMote extension.

Enumerator:

ExtNone	No extension
ExtNunchuk	Nunchuk
ExtClassic	Classic controller
ExtPartiallyInserted	Extension not inserted correctly

---

Constructor & Destructor Documentation

PLINPUT_API PLInput::WiiMote::WiiMote	(	const PLCore::String &	sName,
		DeviceImpl *	pImpl
	)

Constructor.

Parameters:

[in]	sName	Device name
[in]	pImpl	System specific device implementation, must be valid!

virtual PLINPUT_API PLInput::WiiMote::~WiiMote

(

)

[virtual]

Destructor.

---

Member Function Documentation

PLINPUT_API EReport PLInput::WiiMote::GetReportMode

(

)

const

Get report mode.

Returns:

Report mode

PLINPUT_API void PLInput::WiiMote::SetReportMode	(	EReport	nReportMode,
		bool	bContinuous = false
	)

Set report mode.

Parameters:

[in]	nReportMode	Report mode
[in]	bContinuous	Continuous updates?

PLINPUT_API EIRMode PLInput::WiiMote::GetIRMode

(

)

const

Get infrared mode.

Returns:

Infrared mode

PLINPUT_API void PLInput::WiiMote::SetIRMode

(

EIRMode

nIRMode

)

Set infrared mode.

Parameters:

[in]

nIRMode

Infrared mode

PLINPUT_API EExtension PLInput::WiiMote::GetExtension

(

)

const

Get extension.

Returns:

Extension type

PLINPUT_API PLCore::uint8 PLInput::WiiMote::GetBattery

(

)

const

Get battery state.

Returns:

Battery state

PLINPUT_API void PLInput::WiiMote::Calibrate

(

)

Calibrate device.

virtual PLINPUT_API void PLInput::WiiMote::UpdateOutputControl

(

Control *

pControl

)

[override, virtual]

Update output controls (LEDs, effects etc.)

Parameters:

[in]

pControl

Output control that has been changed, must be valid!

Remarks:

This function is called whenever an output control such as LED or Effect has been changed. A device should use this function to update the specific control state on the device (or update all output controls at the same time)

Note:

• The default implementation is empty

Reimplemented from PLInput::Controller.

---

The documentation for this class was generated from the following file:

• WiiMote.h
