PLEngine::SNConsoleBase Class Reference

Abstract console base class. More...

#include <SNConsoleBase.h>

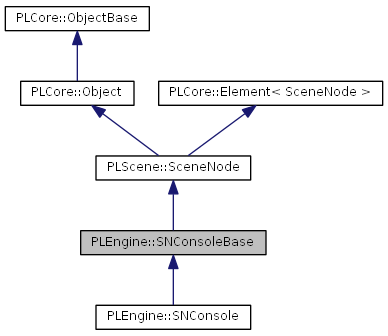

Inheritance diagram for PLEngine::SNConsoleBase:

List of all members.

Public Types
enum	EState { Active = 0, Inactive = 1, Activating = 2, Deactivating = 3 }
	Console state. More...
enum	EFlags { NoDebugCommands = 1<<10 }
	Scene node flags (SceneNode flags extension) More...
Public Member Functions
PL_API void	Deactivate ()
	Deactivates the console.
PL_API EState	GetState () const
	Returns the current console state.
PL_API void	ClearCommandHistory ()
	Clear the command history.
virtual PL_API PLCore::String	GetDescription () const
	Returns the console description.
PL_API bool	RegisterCommand (bool bDebug, const PLCore::String &sCommand, const PLCore::String &sParameters, const PLCore::String &sHelp, const PLCore::Functor< void, ConsoleCommand & > &cFunctor)
	Registers a new command.
PL_API bool	RegisterCommand (const ConsoleCommand &cCommand)
	Register a new command.
PL_API bool	UnRegisterCommand (const PLCore::String &sCommand)
	Unregisters a command.
PL_API void	UnRegisterAllCommands ()
	Unregisters all commands.
PL_API PLCore::uint32	GetNumOfCommands () const
	Returns the number of registered commands.
PL_API PLCore::uint32	GetNumOfParamsInString (const PLCore::String &sString) const
	Returns the number of parameters in a given string.
PL_API void	ProcessKeyMessage ()
	Process a keyboard message.
PL_API void	ProcessCommand (const PLCore::String &sCommand="")
	Process a command.
PL_API void	List (bool bDetailed=false)
	Prints a list of all available console commands into the log.
Protected Member Functions
PL_API	SNConsoleBase ()
	Default constructor.
virtual PL_API	~SNConsoleBase ()
	Destructor.
PL_API void	ProcessCommand (ConsoleCommand &cCommand)
	Process the syntactical correct command.
PL_API void	CompleteCommand ()
	Completes the command.
Protected Attributes
EState	m_nState
PLCore::String	m_sCommand
PLCore::String	m_sFoundCommand
PLCore::uint32	m_nCursor
int	m_nSelStart
int	m_nSelEnd
PLCore::Array< ConsoleCommand * >	m_lstCommands
PLCore::HashMap < PLCore::String, ConsoleCommand * >	m_mapCommands
PLCore::uint32	m_nCurrentCommand
PLCore::Array< PLCore::String >	m_lstCommandHistory

---

Detailed Description

Abstract console base class.

---

Member Enumeration Documentation

enum PLEngine::SNConsoleBase::EState

Console state.

Enumerator:

Active	Console is active
Inactive	Console is inactive
Activating	Console is going active
Deactivating	Console is going inactive

enum PLEngine::SNConsoleBase::EFlags

Scene node flags (SceneNode flags extension)

Enumerator:

NoDebugCommands

Do not allow debug commands

Reimplemented from PLScene::SceneNode.

---

Constructor & Destructor Documentation

PL_API PLEngine::SNConsoleBase::SNConsoleBase

(

)

[protected]

Default constructor.

virtual PL_API PLEngine::SNConsoleBase::~SNConsoleBase

(

)

[protected, virtual]

Destructor.

---

Member Function Documentation

PL_API void PLEngine::SNConsoleBase::Deactivate

(

)

Deactivates the console.

PL_API EState PLEngine::SNConsoleBase::GetState

(

)

const

Returns the current console state.

Returns:

Console state

PL_API void PLEngine::SNConsoleBase::ClearCommandHistory

(

)

Clear the command history.

virtual PL_API PLCore::String PLEngine::SNConsoleBase::GetDescription

(

)

const [virtual]

Returns the console description.

Returns:

Console description

Reimplemented in PLEngine::SNConsole.

PL_API bool PLEngine::SNConsoleBase::RegisterCommand	(	bool	bDebug,
		const PLCore::String &	sCommand,
		const PLCore::String &	sParameters,
		const PLCore::String &	sHelp,
		const PLCore::Functor< void, ConsoleCommand & > &	cFunctor
	)

Registers a new command.

Parameters:

[in]	bDebug	Debug command?
[in]	sCommand	Command string
[in]	sParameters	Parameter string
[in]	sHelp	Help string
[in]	cFunctor	Execution functor

Remarks:

Example:
RegisterCommand(0, "/fogcolor", "III", "<r> <g> <b>", Functor<void, ConsoleCommand &>(MyCommandFuncton));

Returns:

'true' if all went fine, else 'false'

See also:

• Have a look at the definition of ConsoleCommand::EMsgParamID for more information about the command parameters

PL_API bool PLEngine::SNConsoleBase::RegisterCommand

(

const ConsoleCommand &

cCommand

)

Register a new command.

Parameters:

[in]

cCommand

Command which should be registered

Returns:

'true' if all went fine, else 'false'

See also:

• RegisterCommand() above

PL_API bool PLEngine::SNConsoleBase::UnRegisterCommand

(

const PLCore::String &

sCommand

)

Unregisters a command.

Parameters:

[in]

sCommand

Command to remove

Returns:

'true' if all went fine, else 'false'

Note:

• eg: "/fogcolor"... this will remove the /fogcolor command

PL_API void PLEngine::SNConsoleBase::UnRegisterAllCommands

(

)

Unregisters all commands.

PL_API PLCore::uint32 PLEngine::SNConsoleBase::GetNumOfCommands

(

)

const

Returns the number of registered commands.

Returns:

The number of registered commands

PL_API PLCore::uint32 PLEngine::SNConsoleBase::GetNumOfParamsInString

(

const PLCore::String &

sString

)

const

Returns the number of parameters in a given string.

Parameters:

[in]

sString

The string which should be checked

Returns:

Number of parameters in the given string

Remarks:

Example: "/fogcolor 100 20 240" will return the value 3

PL_API void PLEngine::SNConsoleBase::ProcessKeyMessage

(

)

Process a keyboard message.

PL_API void PLEngine::SNConsoleBase::ProcessCommand

(

const PLCore::String &

sCommand = ""

)

Process a command.

Parameters:

[in]

sCommand

Command which should be executed

Note:

• If 'sCommand' is empty, the console own command line will be executed

PL_API void PLEngine::SNConsoleBase::List

(

bool

bDetailed = false

)

Prints a list of all available console commands into the log.

Parameters:

[in]

bDetailed

Should the list have all available information about each command?

PL_API void PLEngine::SNConsoleBase::ProcessCommand

(

ConsoleCommand &

cCommand

)

[protected]

Process the syntactical correct command.

Parameters:

[in]

cCommand

The syntactical correct command

PL_API void PLEngine::SNConsoleBase::CompleteCommand

(

)

[protected]

Completes the command.

---

Member Data Documentation

EState PLEngine::SNConsoleBase::m_nState [protected]

Current state of console

PLCore::String PLEngine::SNConsoleBase::m_sCommand [protected]

Current command string

PLCore::String PLEngine::SNConsoleBase::m_sFoundCommand [protected]

Found command string

PLCore::uint32 PLEngine::SNConsoleBase::m_nCursor [protected]

Current cursor position

int PLEngine::SNConsoleBase::m_nSelStart [protected]

Selection cursor start position

int PLEngine::SNConsoleBase::m_nSelEnd [protected]

Selection cursor end position

PLCore::Array<ConsoleCommand*> PLEngine::SNConsoleBase::m_lstCommands [protected]

The collection of registered commands

PLCore::HashMap<PLCore::String, ConsoleCommand*> PLEngine::SNConsoleBase::m_mapCommands [protected]

Commands hash map

PLCore::uint32 PLEngine::SNConsoleBase::m_nCurrentCommand [protected]

Current selected command entry

PLCore::Array<PLCore::String> PLEngine::SNConsoleBase::m_lstCommandHistory [protected]

Command history list

---

The documentation for this class was generated from the following file:

• SNConsoleBase.h
